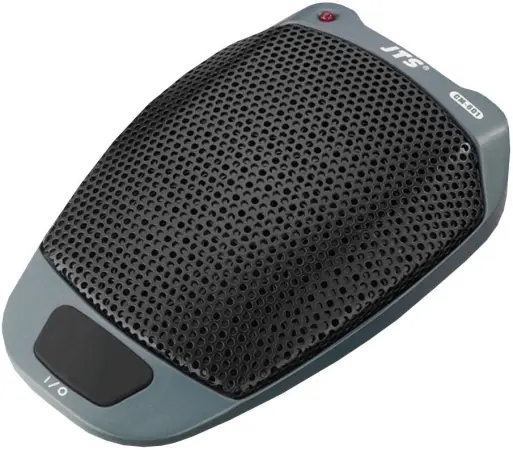

JTS CM-601

Conference Microphone for Clear and Professional Audio

JTS CM-601 Competitive Differences

• Red LED indicator for easy status monitoring during use.
• 3-step Low-Cut switch to eliminate unwanted low-frequency noise.
• Programmable ON/OFF switch with three operation modes: Push On/Push Off, Push to Talk, and Push to Mute.
• Tailored capsule response and advanced circuitry for transparent, high-quality sound reproduction.
• Internal shock mount design minimizes mechanical noise for cleaner audio.
• Compact and lightweight at just 88 grams, perfect for discreet placement.

JTS CM-601 Description

CM-601 Features

• Red LED indicator for status visibility.
• Half-cardioid directional pattern for focused sound pickup.
• Programmable ON/OFF membrane switch with three modes: Push On/Off, Push to Talk, Push to Mute.
• 3-step Low-Cut switch for eliminating low-frequency rumble (80Hz, 120Hz).
• Internal shock mount to minimize mechanical noise interference.
• Compact and lightweight design, ideal for portable use.
• Output connector: 3P Mini XLR-M type (power module).
• Powered by 12-52 VDC phantom power.

CM-601 Specifications

• Type: Electret Condenser
• Frequency Response: 30–12,000 Hz
• Sensitivity: -53±3 dB (2.23mV) 0dB=1V/μbar
• Directional Pattern: Half-Cardioid
• Impedance: 100Ω
• Maximum SPL: 125 dB at 1kHz (1% THD)
• Signal-to-Noise Ratio: 67dB
• Power Supply: 12-52 VDC phantom power
• Current Consumption: ≤6mA
• Switches: Low-Cut (80Hz, 120Hz), Push Control (On/Off modes)
• Weight: 88 grams (net)

JTS CM601 (JTS CM 601)
