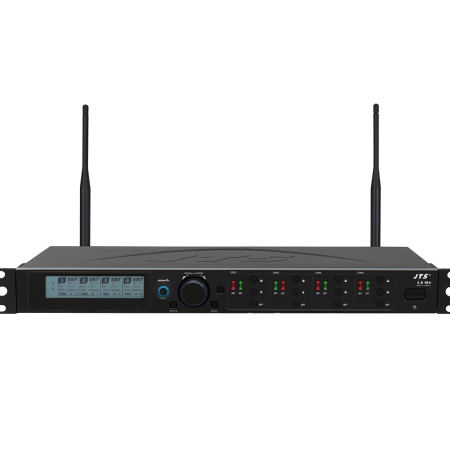

JTS CS-W4C

Wireless conference system for multi-microphone setups

The JTS CS-W4C is a professional-grade 4-channel wireless conference receiver engineered for seamless integration into modern conferencing environments. Featuring a wide 108 MHz bandwidth and logic control features, it’s ideal for meetings requiring multiple wireless microphones with clear audio and intelligent priority settings.

JTS CS-W4C Competitive Differences

• 4-channel wireless receiver for simultaneous microphone use
• Built-in logic circuit for chairman priority control
• Cascade-compatible for large-scale conferencing
• JTS patented REMOSET for syncing all microphones with one button
• 36 MHz operating bandwidth within the 502–694 MHz range (T band)
• High S/N ratio of >105 dB(A) ensures clear and interference-free audio
• Automixer control via 8-pin MINI DIN input/output for advanced audio routing

JTS CS-W4C Description

The JTS CS-W4C is a cutting-edge wireless conference receiver that simplifies multi-microphone audio management for large meeting rooms, government councils, corporate boardrooms, and educational institutions. With built-in logic circuitry, the system supports priority settings so that a designated microphone (e.g., a chairman’s unit) can override all others, ensuring structured communication in discussions.

The CS-W4C allows cascading with other units, enabling centralized control over larger systems. Its advanced REMOSET technology allows you to remotely sync all four wireless microphones simultaneously with just one button press, saving significant setup time.

This receiver offers high audio quality with a wide frequency response from 80Hz to 16kHz and an excellent signal-to-noise ratio of over 105dB(A). Multiple output options (XLR and 1/4" unbalanced) make it easy to integrate into existing AV setups, while automixer control allows for even greater system flexibility. Ideal for scalable wireless conferencing systems, the CS-W4C is built for reliability and ease of use in professional environments.

CS-W4C Features

• Four independent wireless microphone channels
• 108 MHz microphone bandwidth allows more attendees to join
• Priority override function for chairman microphones
• Logic cascading between multiple receivers
• REMOSET function synchronizes all microphones at once
• Multi-language LCD + LED display interface
• Automixer control via 8-pin MINI DIN I/O
• Multiple audio output formats: XLR (balanced) and 1/4" (unbalanced)

CS-W4C Specifications

• Frequency Control: PLL Synthesized
• Carrier Frequency Range: 470–960 MHz
• Operating Band: 502.000–694.000 MHz (T band)
• REMOSET Frequency Setting: 2.4 GHz
• Channel Count: 4
• Bandwidth: 36 MHz
• Signal-to-Noise Ratio: >105 dB(A)
• Total Harmonic Distortion (T.H.D): <0.6% @ 1 kHz
• Sensitivity: -95 dBm, S/N >80 dB
• CMRR: >80 dB
• Audio Frequency Response: 80 Hz – 16 kHz ±2 dB
• Antenna Connector: BNC (Female)
• Antenna Booster Power: DC 12V / 100 mA
• Display: LCD + LED
• Audio Output Levels:
  • 1/4" Phone Jack: -10 dBV
  • XLR Line: -4 dBV
  • XLR Mic: -24 dBV
• Audio Output Impedance: 600Ω
• Squelch Control: Pilot Tone & Noise Mute
• Output Sockets: 5 x XLR Balanced, 1 x 1/4" Unbalanced
• Power Supply: DC 12–15V / 1A
• Dimensions: 19.1" (W) x 1.8" (H) x 10.2" (D) [485 x 45 x 260 mm]
