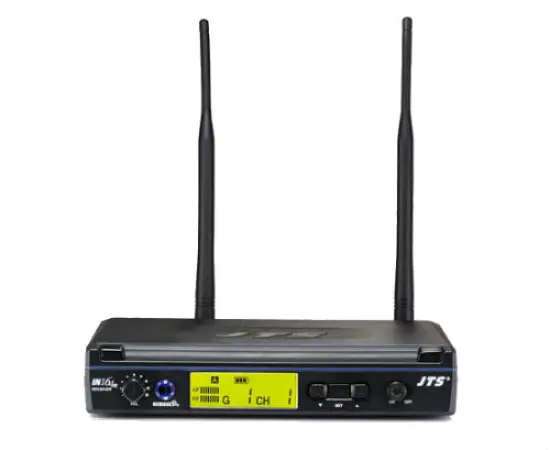

JTS IN164R

IN164R
The JTS IN SERIES UHF Diversity Wireless System features REMOSET the World’s First Remote Control RF setting function that allows automatic remote control frequency settings of the Transmitter from the Receiver.
* REMOSET : Uses a RF signal to send frequency change settings from the IN SERIES receiver to the transmitter in a fraction of a second.
* 200~480 meter operation distance.
* LCD Displays: RF Level, Audio Level, Low Battery Indicator, Antenna Status, Channel Selection.
* IN164R is single channel version of IN264R.
* IN164R with band width of 36 MHz.
* Preset 6 groups, maximum 23 channels in one group.

JTS IN164R Specifications:

Frequency Preparation PLL Synthesized Control
Remoset Radio Frequency : 2.4GHz
Effective distance: 10m
Carrier Frequency Range 36MHz within 502~960 MHz
S/N Ratio >105dB
T.H.D <0.6%@1KHz
Display LCD
Display Contents Channel, Antenna A/B, Mute Display, RF/AF Level Meter, Low battery, ID Number
Controls Power On/Off, Frequency Up/Down, Lock-on,
ID Pairing, Remoset
Audio Output Level -12dB
AF Output Impedance 600?
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 500mA
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack
Dimension(m/m) 210mm(W) * 40mm(H) * 165.5mm(D)

JTS Professional in164r (JTS single channel wireless receiver)
