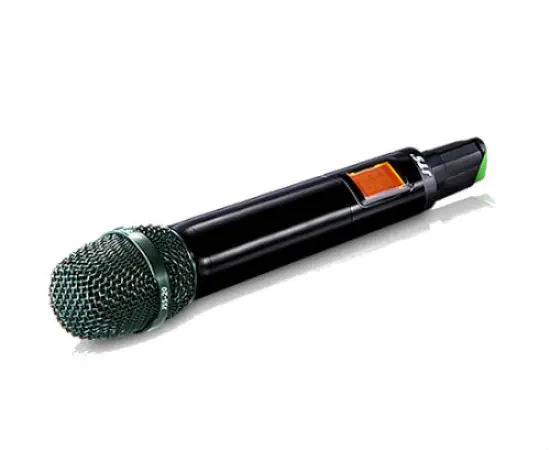

JTS JSS-20 | UHF Handheld Transmitter
$415.00
JSS-20
Professional Wideband Handheld Transmitter
* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Adjustable transmission power between Low and High
NEWEST FEATURE :
* Low cut function.
* JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.
* Interchangeable capsule design for various choices including some classic capsule modules.
* It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.
Specifications:
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 60~75MHz Wideband
RF Outputs Low / High
Stability < ±10KHz
Frequency Deviation ±48KHz (Peak)
LCD Display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18k Hz
Capsule Module Interchangeable
Battery AA NiMH x2
Dimensions 50mm (W) x253mm (H) x35.5mm (D)
Weight 350g
