Compact Phantom Power Adapter for Miniature Condenser Microphones
The

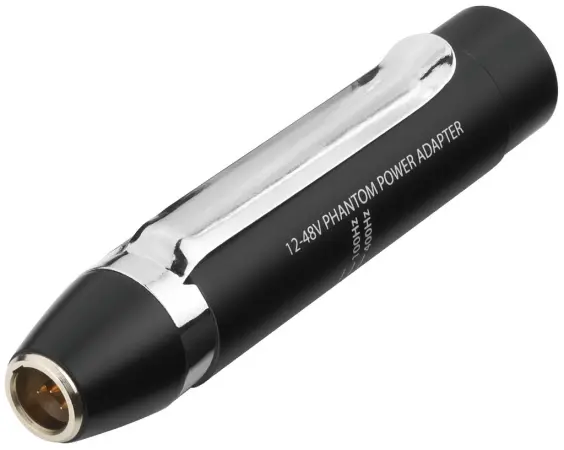

JTS MA-500 is a reliable phantom power adapter designed for miniature condenser microphones. It ensures consistent performance by supplying power through a 4-pin mini XLR connector. This adapter is compatible with JTS CM series microphones and select CX series models, making it ideal for studio, broadcast, and live sound applications.
JTS MA-500 Competitive Differences
- Compatible with CM and select CX series condenser microphones.
- Supports 12V to 48V phantom power from various devices.
- Compact and lightweight at only 40 grams for easy portability.
- Low-cut filter with two settings for reduced background noise.
- Integrated PAD switch (-10dB) for managing high sound pressure levels.
JTS MA-500 Description
The
JTS MA-500 phantom power adapter enhances the versatility of your miniature condenser microphones. Its 4-pin mini XLR input and standard XLR output provide seamless integration into professional audio setups. With its wide frequency response from 30 Hz to 20 kHz and ultra-low total harmonic distortion (THD) of less than 0.045% at 1 kHz, the MA-500 ensures clear and natural sound transmission. The integrated PAD switch prevents signal overload, while the low-cut filter reduces unwanted low-frequency noise, making it perfect for demanding recording environments.
MA-500 Features
- 4-pin Mini XLR microphone input
- XLR male output
- Supports phantom power from 12V to 48V
- -10dB PAD for managing loud signals
- Low-cut filter at 100Hz (-6dB) and 400Hz (-4dB)
- Wide frequency response: 30 Hz to 20,000 Hz
- Impedance: 220Ω
- Signal-to-noise ratio (S/N): >95 dB
- Total Harmonic Distortion (T.H.D.): <0.045% @ 1kHz -50dB
MA-500 Specifications
- Microphone Input: 4P Mini XLR (Male)
- Output: XLR (Male)
- Phantom Power: 12~48V
- PAD: -10dB
- Low Cut Filter:
- 100 Hz (-6dB)
- 400 Hz (-4dB)
- Frequency Response: 30 Hz – 20,000 Hz
- Impedance: 220Ω
- Total Harmonic Distortion (T.H.D.): <0.045% @ 1kHz -50dB
- Signal-to-Noise Ratio (S/N): >95 dB
- Weight: 40 grams (1.41 oz)
- Dimensions: Ø20mm x 84.5mm (H) (Ø0.79in x 3.33in)
