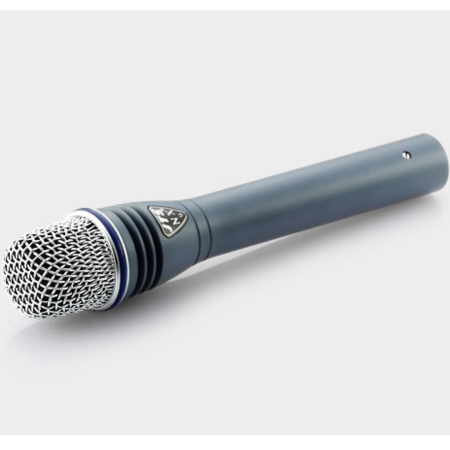

NX-9
The NX-9 is innovated for overheads, hi-hat, acoustic guitar and other instruments. The NX-9 provides extended frequency response and enlarged dynamic range. It delivers smooth and transparent reproduction.
Specifications:
Type Electret Condenser
Frequency Response 60~18,000 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -70dB*(0.32mV)*0dB=1V/μbar
Output Impedance 400Ω
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight 230 grams (8.1 oz)
Touch Noise. Super low
Power Supply 9-52V phantom power or battery 1.5V AA
JTS Professional NX9
(JTS nx 9 microphone)
