UHF PLL Single Channel Diversity Receiver
This product is a full feature version of RU-8011D. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.
Specifications:
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 506-542 MHz
Frequency Setting REMOSET U
Receiving Mode Antenna Diversity
Bandwidth 36MHz
S/N Ratio >105dB(A)
T.H.D <0.6%@1KHz
Sensitivity -95dBm,S/N>80dB
Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type BNC Socket
Antenna Booster Power DC12~15V/100mA
Display LCD
Display Contents Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF
Meter, Frequency Scan, Audio Level, Volume
Controls Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output
Attenuaiton(XLR), Frequency Scan(ON/OFF)
Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
ψ6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) Ë´ -24dBV(MIC)
Audio Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Output Connector 1 independent balanced XLR and one Ø6.3mm unbalanced.
Power Supply DC12~15V/300mA
Dimension (mm) 212.3mm(W)* 38.3mm(H)* 144mm(D)

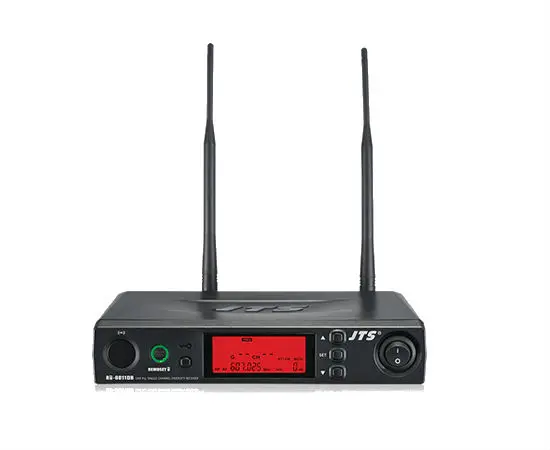

JTS Professional RU-8011DB
(JTS RU8011DB)
