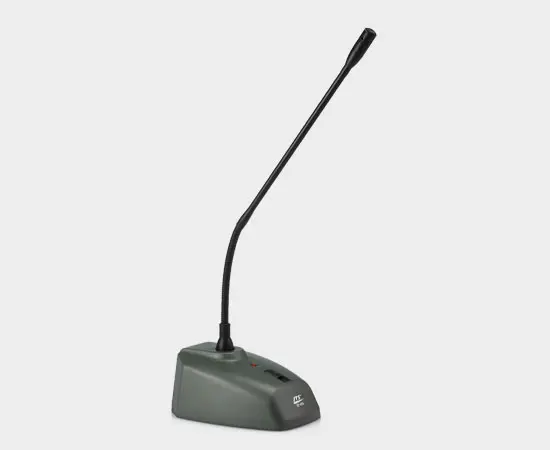

Gooseneck Microphone Base
JTS ST-850 is a hybrid microphone base that enables gooseneck mics to function in both wired and wireless environments without manual switching. Ideal for conference rooms, podiums, and houses of worship, it eliminates installation complexity while maintaining professional audio performance.
JTS ST-850 Competitive Differences
- Compatible with multiple JTS wireless bodypack transmitters
- Auto-switching between wired and wireless modes
JTS ST-850 Description
The
JTS ST-850 is a dual-mode microphone base designed to streamline audio installations. It supports both wireless and wired gooseneck microphone setups, automatically switching between modes based on the connection type — no toggle or switch required.
When used wirelessly, the ST-850 draws power from compatible JTS transmitters like the PT-900B, PT-850B, PT-920B (G), PT-950B, and PT-990B. In this configuration, it functions as a mute switch. For wired setups, simply connect the ST-850 to a standard mic cable with phantom power, and it operates as a conventional base with an on/off switch.
The ST-850 houses a supercardioid back electret condenser microphone element, offering excellent directionality and clarity for speech applications. Its rugged build and professional-grade connectors make it a reliable solution for fixed installations.
Model Features
- Automatic wired/wireless switching with no manual control needed
- Works with JTS bodypack transmitters or 12–48V phantom power
- Integrated supercardioid condenser capsule for focused audio
- Mute switch (wireless) and on/off switch (wired)
- Sturdy gooseneck and metal housing for long-term durability
Model Specifications
- Type: Back Electret Condenser
- Frequency Response: 50–18,000 Hz
- Polar Pattern: Supercardioid
- Sensitivity (Wireless): -66±3dB (0.5mV)
- Sensitivity (Wired): -56±3dB (1.58mV)
- Impedance: 2kΩ (Wireless), 100Ω (Wired)
- Max SPL (1% THD): 125 dB
- Power Supply: 5VDC (Wireless), 12–48VDC Phantom Power (Wired)
- Current Consumption: ≤0.5mA (Wireless), ≤5.5mA (Wired)
- Output Connectors: 4P Mini XLR (Wireless), 3P XLR Male (Wired)
- Switch Function: Mute (Wireless), On/Off (Wired)
- Gooseneck Length: 312 mm
- Base Dimensions: 110.4 x 65.5 x 149.4 mm
- Weight: 1000 g
What's In The Box
- ST-850 Microphone Base
- Attached Gooseneck Microphone
- User Guide
JTS ST850
(JTS ST 850 Goose Neck Microphone)
