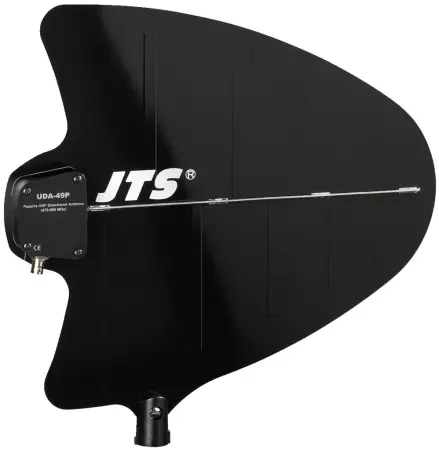

JTS UDA-49P

Passive Directional Fin Antenna

$179.00 Available
$0 Tax $11 Back or Join VIP for upfront discounts.

(more)

NOTE: 2 x UDA-49P required for diversity reception.

UDA-49P
Passive UHF directional antenna
For wireless microphone systems (reception antenna) or for wireless in-ear monitoring systems, e.g. SIEM-111/5 from JTS (transmitting antenna)
Improved reception and a larger transmission range of 470-960 MHz
Rejects unwanted RF signals, minimises signal loss in multipath receptions and reduces interference susceptibility
Reliable operation also for short-term outdoor use
BNC connection (for UHF PLL receivers of the US/IN series or active antenna splitter UA-960)
Ideally suited for mobile applications, can be mounted onto any microphone stand with a thread of 9 mm (⅜") or 16 mm (⅝")


Technical specifications UDA-49P
UDA-49P
Frequency range 470-960 MHz
Aperture angle 100°
Antenna gain ≥ 10 dB
Impedance level 50 Ω
Support 9 mm (⅜") or 16 mm (⅝")
Dimensions 360 x 350 x 36 mm
(sheet thickness: 1.7 mm)

Weight 350 g
Connection BNC jack

JTS UDA49P (JTS UDA 49 Passive)

Beam Angle 100° degree
Connectivity Protocols BNC jack
Frequency Response 470-960 MHz MHz
Impedance 50 Ω ohm

Brand JTS
Name JTS UDA-49P Passive Directional Fin Antenna
Primary Category Antenna

Dimensions 360 x 350 x 36 mm mm
Mounting Options Can be mounted onto any microphone stand with a thread of 9 mm (⅜") or 16 mm (⅝")
Weight 350 g g

Frequency range: 470-960 MHz; Aperture angle: 100°; Antenna gain: ≥ 10 dB; Impedance level: 50 Ω; Support: 9 mm (⅜") or 16 mm (⅝") mounting; Dimensions: 360 x 350 x 36 mm; Weight: 350 g; Connection: BNC jack.

Two UDA-49P antennas are required for diversity reception.
