Advanced Power Conditioning with 20A Capacity and RX Series Protection
The
Juice Goose RP100-20RX offers superior AC power protection, advanced monitoring, and premium rackmount power distribution in one robust, professional-grade unit. Designed with Juice Goose’s proprietary RX Series filtering and surge suppression, this 20-amp model is ideal for mission-critical AV, broadcast, and live sound applications where clean, uninterrupted power is essential.
Juice Goose RP100-20RX Competitive Differences
- 20A rated PDU with 7-foot 12/3 SJT power cord and NEMA 5-20P plug
- RX Series hybrid protection circuitry filters surges to <10V (line-neutral) and <0.5V (ground)
- Bi-directional high-frequency filtering reduces EMI/RFI for sensitive gear
- Dual USB-A ports (front and rear) for charging and utility lighting
- LED digital volt/amp metering with 0.10 resolution
- Tour Class™ 7” deep steel chassis with reinforced rack ears for heavy-duty installs
- 11 total switched AC outlets: 1 front, 8 x 15A rear, 1 x 20A rear
- LED surge protection indicator on front panel
Juice Goose RP100-20RX Description
The
RP100-20RX is built for the highest level of surge suppression and power filtration available in a rackmount PDU. Its RX Series protection circuit reduces dangerous surges and minimizes noise on both the power and ground lines, protecting your gear from instability and high-voltage faults. It maintains a tight voltage threshold for critical applications, making it ideal for audio/video integrators, touring professionals, and sensitive digital systems.

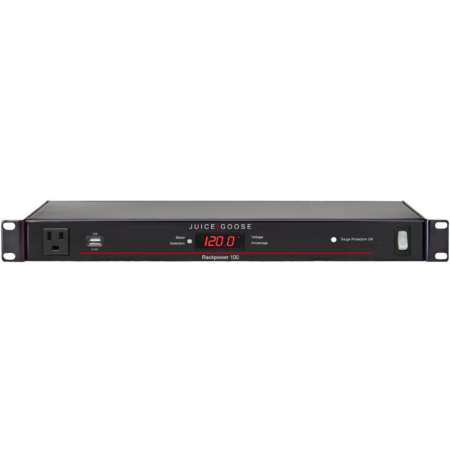

The dual-function LED display offers real-time voltage and current readouts to ensure load balance and system safety. Rotated rear outlets fit wall warts, and both front and rear USB ports allow for device charging or LED rack lighting.
This 20A version includes a 7-foot power cord with a NEMA 5-20P plug and requires a matching 5-20R receptacle.
RP100-20RX Features
- 20A rackmount power conditioner with RX Series surge suppression
- LED volt/amp meter with 0.10V and 0.10A resolution
- Surge clamping: <10V (line-neutral), <0.5V (ground)
- EMI/RFI filtration and power fault interruption
- USB-A ports front/rear for lighting and charging
- 11 switched outlets: 1 front (15A), 8 x 15A rear, 1 x 20A rear
- 7 ft. 12/3 SJT power cord with NEMA 5-20P plug
- LED status indicator for surge protection status
- Three-year warranty
RP100-20RX Specifications
- Input Voltage: 120 VAC, 60Hz
- Current Capacity: 20A (technical rating: 16A)
- Power Cord: 7 ft., 12/3 SJT with NEMA 5-20P plug

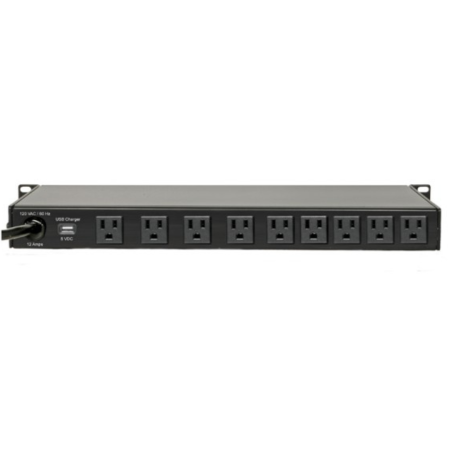

- Output Receptacles (All Switched):
- 1 x NEMA 5-15R (front)
- 8 x NEMA 5-15R (rear)
- 1 x NEMA 5-20R (rear)
- USB Ports: 1 front, 1 rear (5VDC)
- Chassis: 16-gauge unibody steel with 11-gauge rack mount brackets
- Surge Protection:
- Clamping Voltage (line-neutral): <10V
- Clamping Voltage (ground): <0.5V (500mV)
- Surge Indicator: Front-panel LED
- Monitoring: Voltage and Amperage (0.10 resolution)
- Dimensions (W x H x D): 19" x 1.75" x 7"
- Weight: 12 lbs
- Warranty: 3 Years
JUICE GOOSE RP100-20RX
(Juice Goose RP10020RX)
