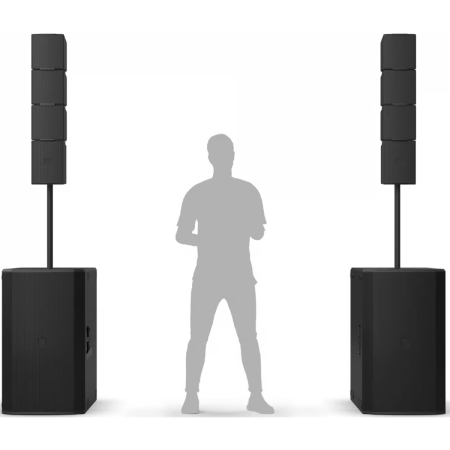

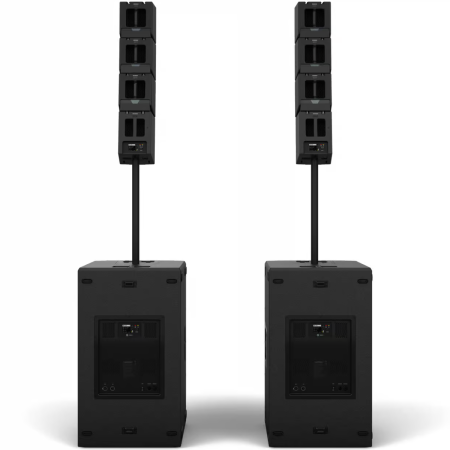

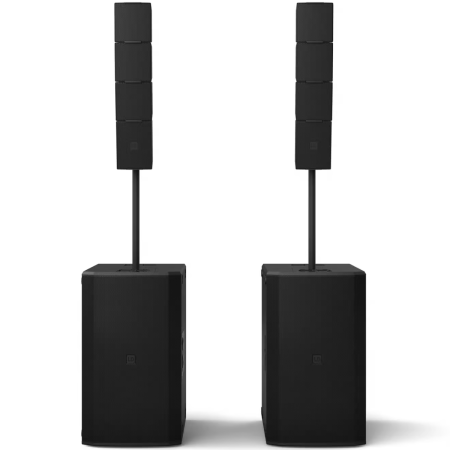

LD Systems MAILA S

Active Stereo Line Array PA System

LD Systems MAILA S is a compact yet extremely powerful 7.6 kW active stereo line array system combining ground stack subwoofer performance with scalable array technology. Designed for mobile DJs, live bands, corporate events, and installed applications, it delivers extended low-frequency response down to 34 Hz and precise line array coverage up to 20 kHz.

This complete stereo configuration includes dual 2x15" bandpass subwoofers, six MAILA SAT array satellites, and two MAILA SPA amplifier modules—providing a flexible, professional-grade solution for high-impact sound reinforcement.

LD Systems MAILA S Competitive Differences

• Total RMS power of 7,600 W with dual 2x15" bandpass subwoofers
• WaveAhead® satellite design with EasySplay® adjustable array angles
• SmartLink+® cable-free satellite connection system
• Integrated SysCore® DSP with app control via MAILA Quick Setup App

LD Systems MAILA S Description

The LD Systems MAILA S system combines advanced acoustic design with intelligent DSP control to deliver a high-performance stereo PA in a compact footprint. Each stereo side consists of one MAILA SUB 2x15" bandpass subwoofer with cardioid capability, one MAILA SPA amplifier module, and three MAILA SAT line array satellites.

The 2,500 W RMS 2x15" subwoofer utilizes a bandpass design for powerful, controlled low-frequency output with a low-frequency limit of 33 Hz (-6 dB). With up to 137 dB peak SPL (half space), it provides deep, punchy bass suitable for festivals, DJ performances, and live music reinforcement.

The MAILA SAT satellites feature Advanced WaveAhead® technology, placing five 1" tweeters in front of a 6.5" midrange driver in a coaxial arrangement with SonicGuide® waveguides. This produces a classic 100° horizontal dispersion with adjustable vertical coverage (8°–24° depending on array configuration). An integrated passive membrane extends low-mid performance down to 100 Hz despite the compact aluminium enclosure.

Each satellite includes the patented EasySplay® mechanism, allowing continuous angle adjustment from 0° to 8° with one hand—even under load. SmartLink+® technology enables cable-free signal and power transmission between amplifier and satellites for streamlined setup.

The MAILA SPA amplifier module features integrated SysCore® DSP with fully parametric 10-band EQ, delay, and presets. Control is available directly on the unit or wirelessly via the MAILA Quick Setup App (iPadOS). With LogoLink® technology, wireless antennas are integrated into the LD logo for clean aesthetics and stable Bluetooth® connectivity up to 30 meters under practical conditions.

Whether deployed as a ground stack system using the included MAILA DB speaker poles or configured for flown applications via the integrated EasyMount+® bracket, MAILA S provides scalable flexibility for conferences, corporate events, festivals, and live performances.

MAILA S Features

• Complete active stereo PA system
• Total RMS output power: 7,600 W
• 2 x 2x15" bandpass subwoofers (cardioid capable)
• 6 x MAILA SAT passive array satellites
• 2 x MAILA SPA Class D amplifier modules
• Frequency response (-6 dB): 34 Hz – 20 kHz
• Beam angle: 100° (H) / 8°–24° (V)
• Advanced WaveAhead® satellite design
• EasySplay® adjustable satellite angles (0°–8° per module)
• SmartLink+® cable-free connection system
• Integrated SysCore® DSP with 10-band parametric EQ
• Bluetooth® app control via MAILA Quick Setup App (iPadOS)
• LogoLink® integrated wireless antennas
• Ground stack configuration with included MAILA DB speaker poles

MAILA S Specifications

• Total RMS Output Power: 7,600 W
• System Frequency Response (-6 dB): 34 – 20,000 Hz
• Maximum Height: 98.5 in (2,502 mm)
• Total System Weight: 489.43 lb (222 kg)
• Subwoofer Power: 2,500 W RMS each
• Subwoofer Max SPL Peak (pink noise, half space): 137 dB
• Subwoofer Low Frequency Limit (-6 dB): 33 Hz
• Amplifier Power (per MAILA SPA): 1,250 W RMS
• Satellite Frequency Response: 100 – 20,000 Hz
• Satellite Max SPL Peak (pink noise): 129.1 dB
• Subwoofer Cabinet: 18 mm birch multiplex with polyurea coating
• Satellite Cabinet: Die-cast aluminium
• Operating Voltage: 100–240 V AC, 50–60 Hz
• Color: Black

What's In The Box

• 2 x MAILA SUB 2x15" powered subwoofers
• 2 x MAILA SPA amplifier modules
• 6 x MAILA SAT satellites
• 2 x MAILA DB speaker poles
• 2 x MAILA FC1 (flight case)*
• 2 x MAILA SUB CB castor boards*
• 2 x MAILA SUB PC protective covers
• 4 x Power cables

*Flight cases not included in North America.

LD Systems MAILA S (LD Systems LDMAILAS)
