U505 BPH 2

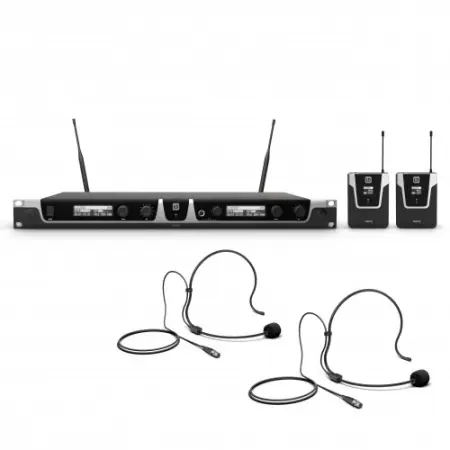

Dual - Wireless Microphone System with 2 x Bodypack and 2 x Headset
The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 meters. 12 systems can be operated simultaneously. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronization of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artifacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.
The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
Features:
Item No.: LDU505BPH2
True diversity UHF wireless system
Shock-mounted dynamic and condenser microphone capsules
Automatic channel scan
Easy one-touch infrared frequency syncing
Pilot tone squelch circuit prevents noise
Switchable RF transmitter output (2, 10 or 30 mW)
Rugged enclosures
High-contrast OLED display
Specifications:
Product type Wireless Microphone Systems
Type Headsets
Transmission frequency range 584 - 608 MHz
Weight 5,235 kg
LDU505R2 - LD Systems U505 BPH 2 Dual receiver
Product type Wireless Microphone System Accessories
Type true diversity
Modulation Type FM
Frequency response 30 - 16000 Hz
Channels 2 x 96 (8 groups of 12 channels)
Groups 8
Antenna inputs 2
Antenna connector BNC
Signal-to-noise ratio > 100 dB
Noise reduction Squelch
Total Harmonic Distortion (THD) < 0.1 %
Controls volume
Audio output, balanced 2 x XLR
Indicators 2 x OLED Display
Audio output, unbalanced 2 x 6.3 mm TS
Audio mix output, balanced XLR
Accessories (included) power adapter
Width 484 mm
Audio mix output, unbalanced 6.3 mm jack
Height 44 mm
Depth 200 mm
Max. output level +10 dBu
Weight 2,05 kg
Headphones ouput 1
Headphones outputs 6.3 mm TRS
Other features Pilot tone
Operating voltage 12 V DC, 1000 mA
LDU505BP - LD Systems U505 BPH 2 Bodypack transmitter
Type Bodypack
Channels 96 (8 groups of 12 channels)
Inputs Mini-XLR (3-pin)
Signal-to-noise ratio >90 dB
Rated HF output power Variable (2mW, 10mW, 30mW)
Controls Set
Indicators OLED Display
Operating voltage 2 x AA battery
Operating time >10 h (with alkaline batteries)
Width 65 mm
Height 86 mm
Depth 23 mm
Weight 0,09 kg
Other features switchable RF power
LDWS100MH1 - LD Systems U505 BPH 2 Headset
Frequency response 20 - 20.000 Hz
Directivity Cardioid
Nominal impedance 680 Ohm(s)
Phantom power requirements 5 V
Microphone input Mini-XLR (3-pin, female)
Accessories (included) Foam windscreen
Weight 0,049 kg
