48V Power Driver for Prisma Mini Fixtures
The
Magmatic Prisma Driver 8 is a compact and rugged DMX driver system designed to power and control up to eight Prisma Mini UV LED fixtures simultaneously. Built for easy integration into architectural, entertainment, and installation environments, it offers precision dimming control, versatile mounting options, and robust connection interfaces.
Magmatic Prisma Driver 8 Competitive Differences
- Supports up to 8 Prisma Mini UV fixtures with individual DMX control
- Onboard 4-button interface with multiple dimming and delay modes
Magmatic Prisma Driver 8 Description
The
Prisma Driver 8 serves as the central power and control hub for Magmatic's Prisma Mini series, including the Prisma Mini Par 20, Prisma Mini Par 45, and Prisma Mini Bar 20. It delivers a steady 48VDC power supply with up to 8.3 amps and allows for individual DMX control of each connected fixture via eight 2-pin bare wire terminal blocks.

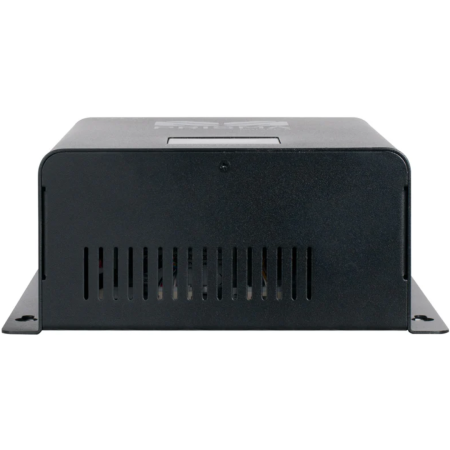

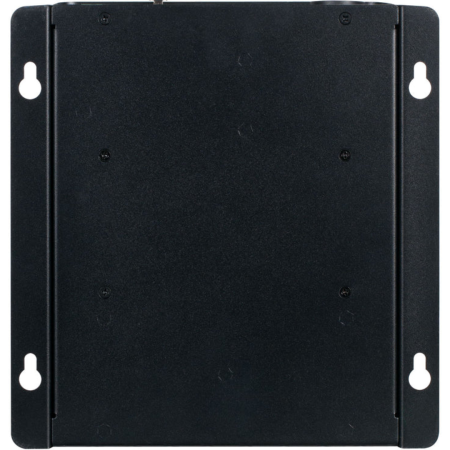

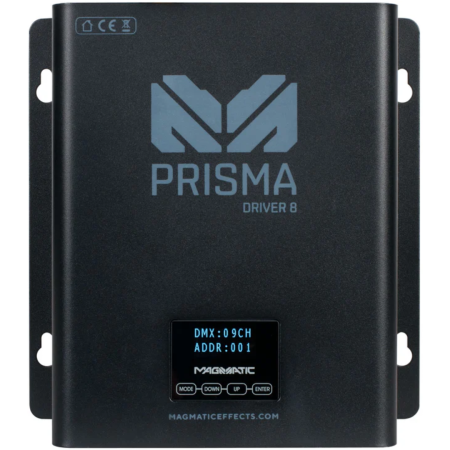

Engineered for both performance and durability, the unit is housed in a rugged aluminum enclosure and includes keyhole slots for secure wall or surface mounting. The onboard interface provides manual control and setup via a 4-button panel, while DMX-512 and RDM protocol support ensures compatibility with most lighting control systems.
Its compact footprint and locking connectors for both power and DMX in/out make it ideal for touring setups, permanent installations, or any application requiring reliable UV fixture control.
Model Features
- 48VDC driver for up to 8 Prisma Mini fixtures
- Individual DMX-512 control with multiple dimming/delay modes
- Onboard 4-button control interface
- Rugged aluminum housing with surface mounting slots

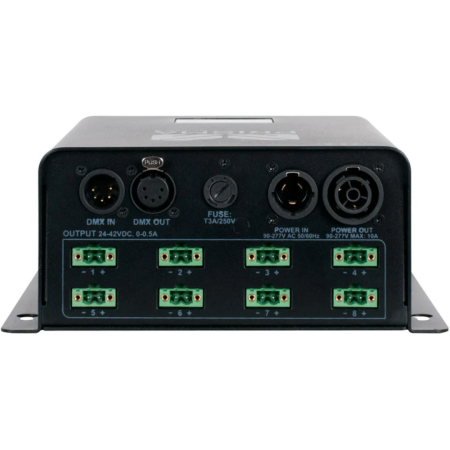

- Locking power and 5-pin DMX XLR connectors
Model Specifications
- Power Output: 48VDC, 8.3A (167W Max)
- Input Voltage: 100–240V AC, 50/60Hz
- Control Protocols: DMX-512, RDM, Manual
- DMX I/O: Locking 5-pin XLR
- Fixture Outputs: 8x 2-pin bare wire terminals
- Dimensions: 8.9 x 8.4 x 3.5 in (225 x 212 x 88 mm)
- Weight: 5.7 lb (2.6 kg)
- Operating Temp: 14°F to 113°F (-10°C to 45°C)
- Certifications: CE, cETLus | IP Rating: IP20
What's In The Box
- Prisma Driver 8 unit
- Mounting hardware
- User instructions
Magmetic PSD108
(Magmatic PSD-108)
