MAGMATIC Sidewinder

CO2 Simulator Fog Machine

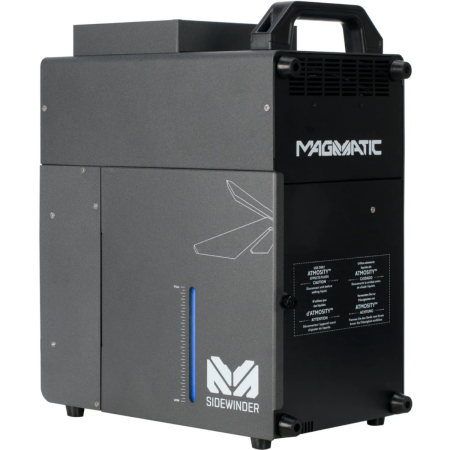

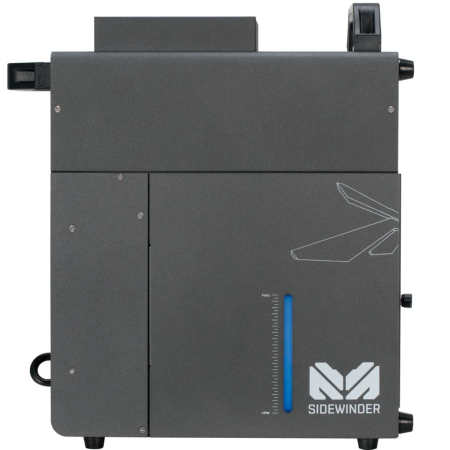

MAGMATIC SIDEWINDER is a high-velocity CO2 simulator fog machine designed to create powerful illuminated fog bursts without requiring a traditional CO2 effect system. Delivering up to 50,000 CFM with a maximum 20-foot throw, the SIDEWINDER combines a rotating 180° multi-position fog output with 22 integrated 3W RGBA LEDs for dynamic stage, club, concert, and event effects.

MAGMATIC SIDEWINDER Competitive Differences

• High-velocity fog output rated at up to 50,000 CFM
• Maximum 20-foot fog throw with up to 8 seconds of continuous output
• 180° multi-position fog burst capability for flexible effect positioning
• 22 x 3W RGBA LEDs illuminate the fog output and can also operate without fog
• DMX-512 and RDM support with 1, 4, and 7-channel operating modes
• Onboard LCD touchscreen control panel for direct fixture operation

MAGMATIC SIDEWINDER Description

The MAGMATIC SIDEWINDER combines high-volume fog production with integrated RGBA lighting to create fast, visually intense effects for stages, nightclubs, concerts, DJs, and event productions. Its 1450W fog system delivers output rated at up to 50,000 cubic feet per minute, with a maximum throw distance of 20 feet and continuous bursts lasting up to 8 seconds.

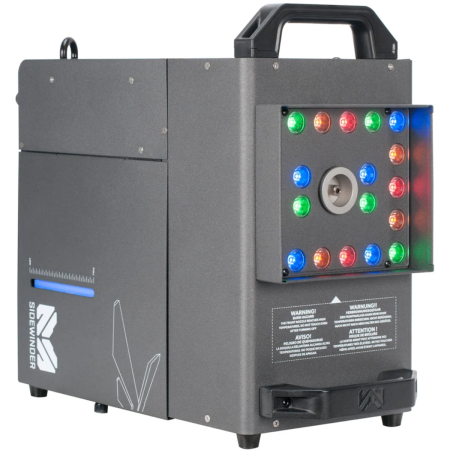

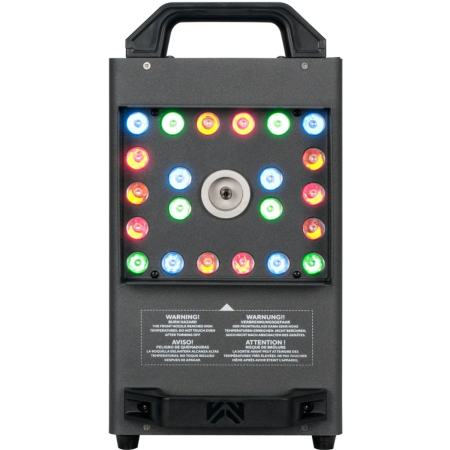

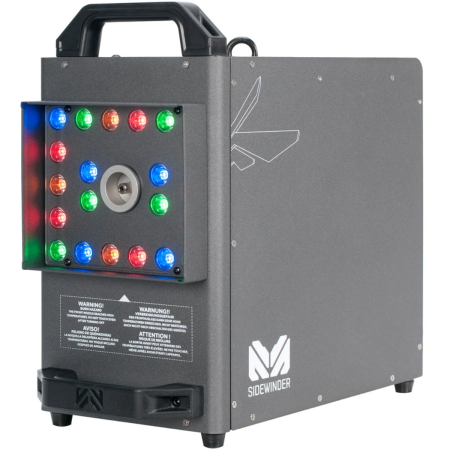

The output assembly can rotate through 180°, allowing the fog burst to be positioned in multiple directions. Integrated lighting consists of 22 x 3W LEDs, including five red, six green, six blue, and five amber LEDs. The LED system can also be operated independently without activating the fog output, expanding the fixture's use as a lighting effect.

For professional control, SIDEWINDER supports DMX-512 and RDM with 1, 4, and 7-channel modes. An onboard LCD touchscreen provides direct access to fixture controls, while optional E-FLY wireless DMX, RF wireless remote, and wired remote options provide additional control flexibility.

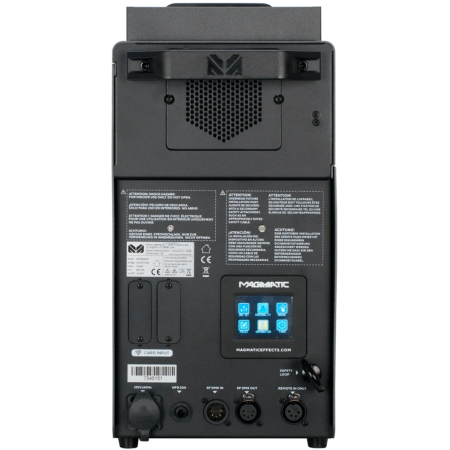

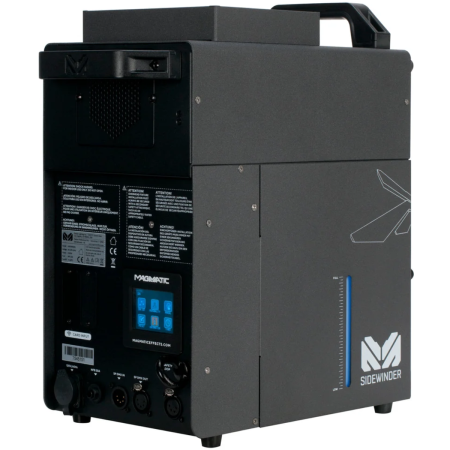

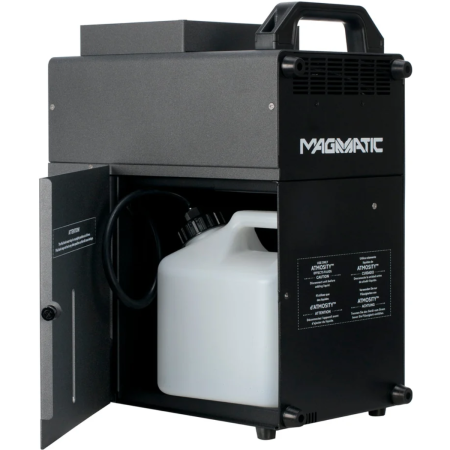

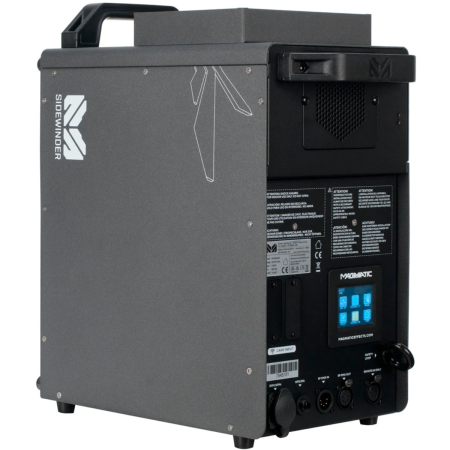

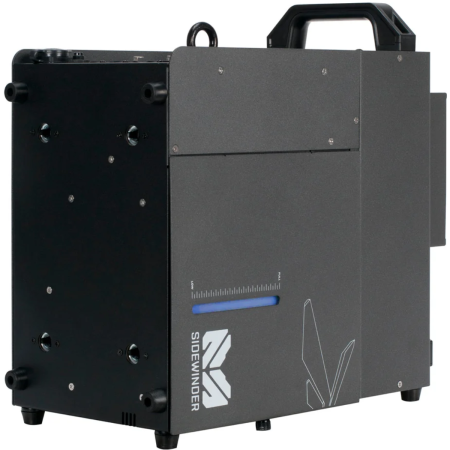

A durable aluminum housing is designed for mobile and event production use. The fog system incorporates a thermally protected heat exchanger, removable 2.5-liter fluid reservoir, and external visual fluid-level detection. Five-pin locking XLR data connections and an IP65 locking power input provide secure connections, while the fixture itself carries an IP20 rating.

SIDEWINDER Features

• High-velocity CO2 simulator fog effect
• 1450W rated power
• Up to 50,000 CFM fog output
• Maximum 20-foot fog throw
• Maximum continuous output of 8 seconds
• 180° multi-position fog output
• 22 x 3W RGBA LEDs
• 5 red, 6 green, 6 blue, and 5 amber LEDs
• LEDs can operate independently without fog output
• Onboard LCD touchscreen control panel
• DMX-512 protocol support
• RDM protocol support
• 1, 4, and 7-channel DMX modes
• Optional E-FLY wireless DMX transceiver support
• Optional RF wireless and wired remote control
• MagRemote VIDI support
• 5-pin locking XLR data input and output
• IP65 locking power input connector
• Thermally protected heat exchanger
• Removable fluid reservoir

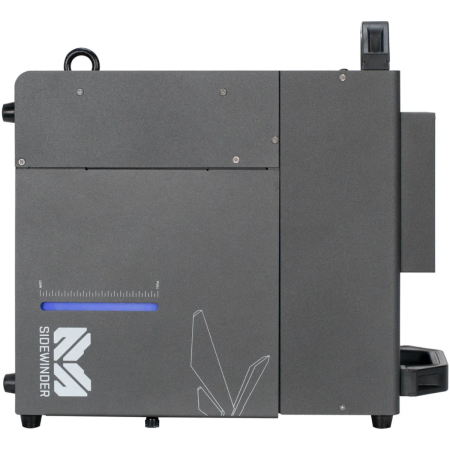

• External visual fluid-level detection
• Durable aluminum housing
• Compact mobile design

SIDEWINDER Specifications

• Effect Type: High-Velocity CO2 Simulator Fog Machine
• Rated Power: 1450W
• Maximum Output: 50,000 CFM
• Maximum Continuous Output: 8 Seconds
• Maximum Throw Distance: 20 ft
• Initial Ready Time: 9 Minutes
• Cycling Ready Time: 1 Minute
• Fluid Capacity: 2.5 L
• Fluid Consumption: 180 mL/min
• Compatible Fluid: Atmosity Flash Fog Fluid
• LEDs: 22 x 3W RGBA
• LED Configuration: 5 Red, 6 Green, 6 Blue, 5 Amber
• Output Positioning: 180°
• DMX Modes: 1 / 4 / 7 Channels
• Control Protocols: DMX-512, RDM
• Display: LCD Touch Control Panel
• Data Connections: 5-Pin Locking XLR In/Out
• Power Input: IP65 Locking Connector
• Input Voltage: AC 100–120V, 50/60Hz
• Breaker Size: 20A at 120V
• Breaker Size: 10A at 230/240V
• Maximum Power Consumption: 1560W
• Maximum Ambient Temperature: 104°F (40°C)
• Exterior Surface Temperature at Steady State: 140°F (60°C)
• Length: 16.26 in (413 mm)
• Width: 7.60 in (193 mm)
• Height: 14.80 in (376 mm)
• Weight: 29.5 lb (13.4 kg)
• Rating: IP20
• Approvals: CE, cETLus, UKCA
