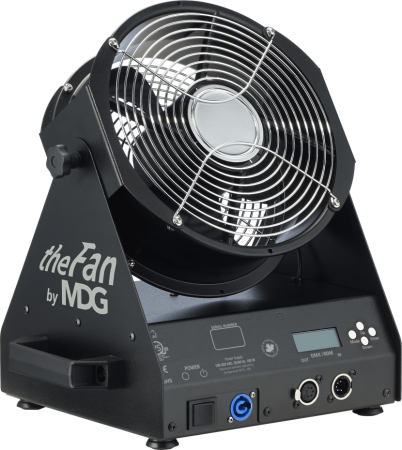

MDG theFAN

The MDG theFan is a revolutionary digital fan. It is the best complement to any atmospheric effect! Low power consumption - only 100W - with controllable velocity via DMX or RDM, this ultra compact stage fan can be used anywhere due to its universal switching power supply (100V- 250V, 50/60 Hz), either sitting on stage or hung from underneath your trussing (Omega bracket, metric and imperial-size clamp sockets). Its simple and efficient multi-level User Interface, accessible from the backlit LCD panel, allows for a gradual switch between local mode and most common protocols: DMX-512-A USITT and RDM ANSI E1.20.

Product Features
Free standing or variable mounting options
Universal switching power supply 100-250 VAC, 50/60 Hz, single phase
Noise Level at 1 m (3.3 ft): 64db at maximum speed
4-button LCD user interface, USITT DMX512, XLR-5 connectors, RDM compliant
One-channel Standard mode or two-channel Quiet mode
Variable speed and air flow up to 24 m3 (850 ft3) per minute
Product Specifications
Electrical

100 - 250 VAC, 50/60 Hz, single phase
100 W
Data

1 standard USITT DMX512 channel
2 XLR-5 connectors: 1 input, 1 output
Controllable through DMX + RDM
Digital Functions

Stand alone set speed
DMX Value
Mechanical

3-bladed fan
270º tilt
Variable speed
M12 metric bolt hole
1/2" imperial bolt hole
Noise Level: 64db at full speed
2 handles
4-button controller with LCD panel
Airflow: up to 24 m3 (850 ft3) per minute
Omega clamp socket
Fan diameter: 26.4 cm (10.4")
Total net weight: 6.8kg (15 lb)
Total net size: 38 cm (15") H x 34.5 cm (13.58") W x 25.4 cm (10")

MDG theFAN (MDG the FAN)
