Mega Lite AXIS MINI GRID Q9

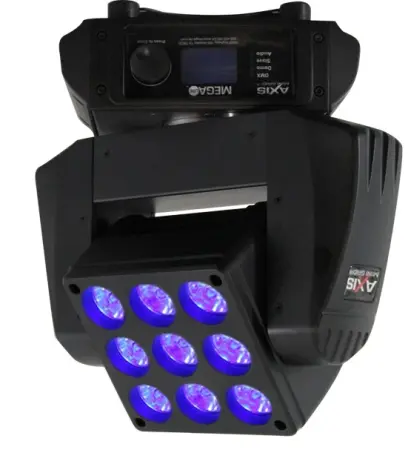

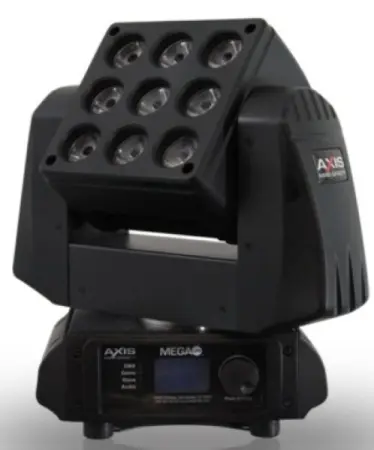

Mega-Lite introduces the new Axis Mini Grid, a smaller version of the Axis Grid. This unit is a compact 3×3 pixel mappable eye-candy fixture with infinite pan and tilt. It has 9 RGBW 10 watt LEDs with pixel control for a unique eye-candy effect, pre-programmed color and pixel macros. The Axis Grid is controlled via DMX 512, it has both 3-pin and 5-pin XLR and PowerCon type in and out connectors. An LCD display allows for simple addressing and on-board control. Rigging is also made fast and easy thanks to the unit’s quick release clamp. Its compact size makes the fixture ideal for multiple arrays, on stages, in clubs, mobile dj and mobile church.

SPECIFICATIONS:
ITEM ID:1167
LIGHT SOURCE:9 10W RGBW LED
PAN:INFINITE
TILT:INFINITE
DMX CONNECTORS:3 AND 5-PIN XLR CONNECTORS
POWER CONNECTION:POWER CON TYPE IN/OUT
THERMAL:MAXIMUM AMBIENT TEMPERATURE 100º F MAXIMUM SURFACE TEMPERATURE 130º F
FASTENING SYSTEM:SINGLE QUICK RELEASE CLAMP MOUNTS
POWER SUPPLY:AUTO SWITCHING 100V≈240V 50/60HZ
POWER CONSUMPTION:WATTS: 124W / AMPS: 1.61
BALLAST:ELECTRONIC
DISPLAY:LCD DISPLAY
LENS ANGLE:8º

Mega Lighting AXIS MINI GRID Q9-1167 (Mega Lite 1167)
