Transfix the Audience

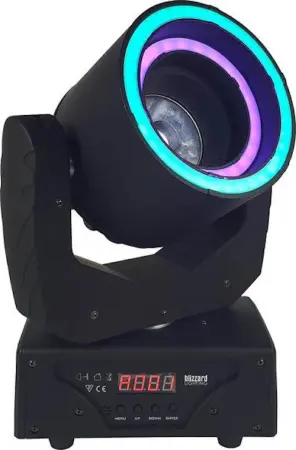

Hypno™ Beam is an LED beam moving head with hypnotic LED rings designed to transfix your audience. It comes loaded with a high-output 60W RGBW LED in the center for stunning 8° moving beam effects, then, the center LED is surrounded by 2x LED rings that can perform mesmerizing chase effects, single LED chases, full color changes, and strobe.
Easy Control
Hypno™ Beam offers two user-selectable DMX modes (14/23-channels) and an easy-to-use 4-button LED control panel. The power connections are industry standard powerCON® compatible In/Out, plus, it comes equipped with 3-pin DMX In/Out jacks and a quarter-turn “Omega” quick connect type clamp bracket.
Features:
• 8° beam effects via 60W RGBW 4-in-1 LED
• 2x LED rings with 60pcs RGB 3-in-1 SMD5050 LEDs
• Compact and lightweight
• Independent DMX control of beam and LED ring effects
• Pan: 540/630°, Tilt: 200° (8-16 Bit Resolution)
• Built-in auto/sound active programs
• 0-100% linear LED dimmer
• Pan/tilt invert
• 1-25Hz strobe
• User selectable 14/23-channel DMX modes
• 3-pin DMX In/Out connections
• powerCON® compatible AC power In/Out
Specifications:
Optical
Light Source: 1x 60W RGBW 4-in-1 LED + 60x RGB 3-in-1 SMD5050 LEDs (rings)
Beam Angle: 8°
Luminous Intensity:
77,372 Lux @ 1M
15,330 Lux @ 2.5M
3,747 Lux @ 5M
Movement
Pan: 540/630° (8-16 bit resolution)
Tilt: 200 degree (8-16 bit resolution)
Weight & Dimensions
Width: 10.5” (265 mm)
Depth: 6.6” (168 mm)
Height: 11.9” (301 mm)
Weight: 11 lbs. (5 kg)
Control
Protocol: USITT DMX-512
14/23-channel DMX modes
Standalone, M/S, Sound Active, Color Preset
3-pin XLR In/Out connections
4-button LCD control panel
Power & Current
100-240VAC, 50-60 Hz
Power Consumption: 106W, .89A, PF: .98
Fuse: 2A, 250V
Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs
