Moving LED Bar Light

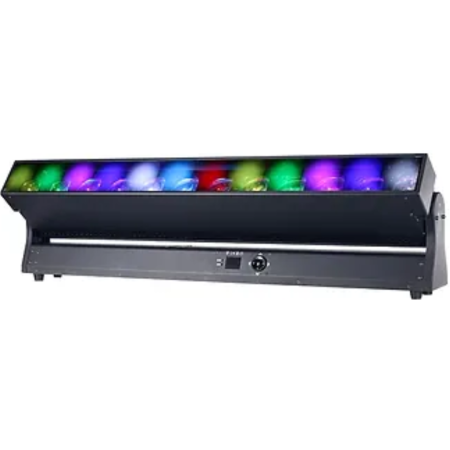

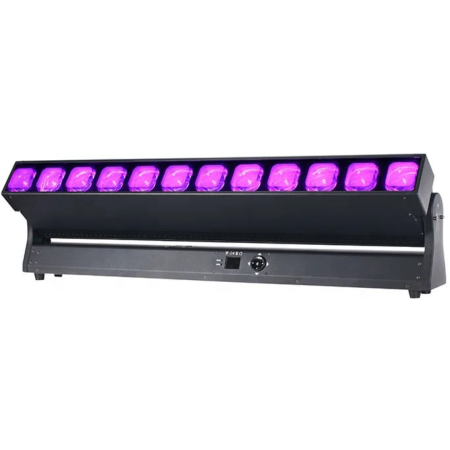

Crisp VIVID TREAD 1260YZ is a high-output moving LED bar light designed for powerful beam sweeps, vibrant color washes, and fully customizable pixel effects. Built for professional lighting designers, it delivers visual impact in nightclubs, concerts, bars, and stage productions with fast setup and flexible control options.
Crisp VIVID TREAD 1260YZ Competitive Differences
- 12×60W RGBW LEDs with Motorized Zoom (4.5°–35.5°)
- Advanced Pixel Mapping with Built-In Effects & DMX Control
Crisp VIVID TREAD 1260YZ Description
The

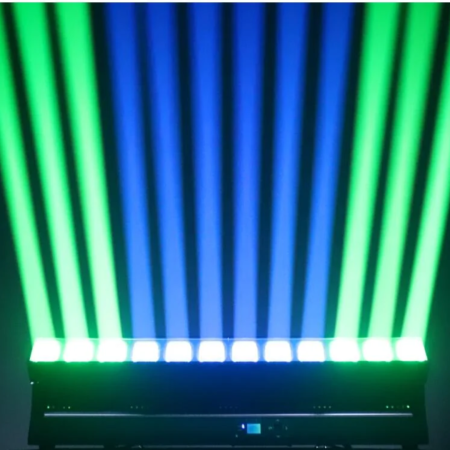

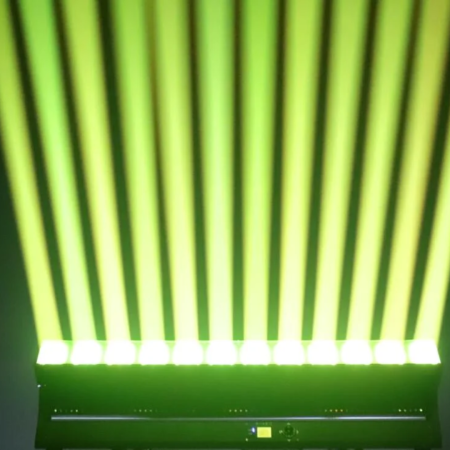

Crisp VIVID TREAD 1260YZ is engineered to transform stages with bold, sweeping beams and fluid color transitions. It features 12 powerful 60W RGBW LEDs, delivering brilliant output and a wide color palette. The motorized zoom ranges from a tight 4.5° beam to a broad 35.5° wash, giving users total flexibility for focused aerial effects or soft ambient fills.

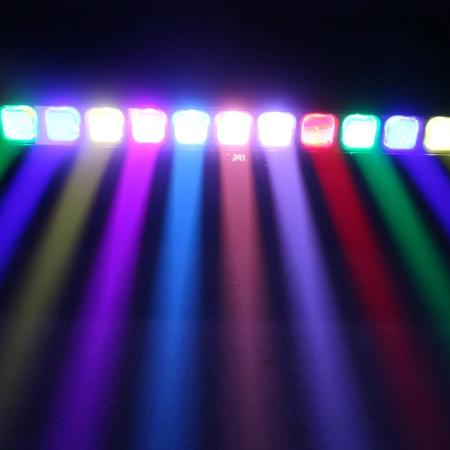

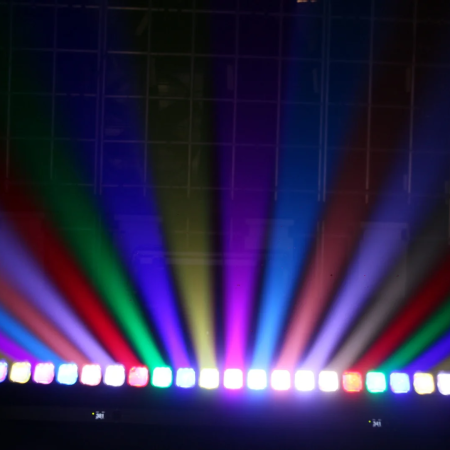

Pixel mapping capability allows individual LED control, enabling custom patterns, chases, and visual effects tailored to your venue or performance. This makes it ideal for clubs, DJs, live bands, and stage productions seeking cutting-edge visuals with minimal programming effort.
With 18 or 56 DMX channel modes, the VIVID TREAD 1260YZ offers deep control for professionals while also including pre-programmed color macros, strobe, and auto modes for plug-and-play operation. Its 1.8-inch color LCD display is rotatable for easy access in any rig orientation.

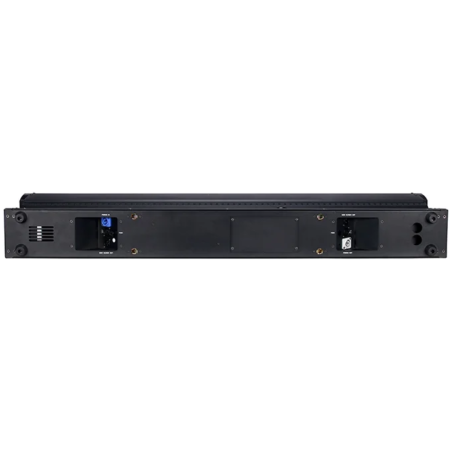

Durable and tour-ready, this fixture includes PowerCon I/O, DMX 3-pin (or 5-pin) connectors, and operates within a broad ambient temperature range. With 220° of tilt movement and smooth 0–100% dimming, it offers precision and energy in a single compact unit.
Model Features
- 12×60W RGBW LEDs with 50,000 Hour Average Lifespan
- Motorized Zoom: 4.5° to 35.5° Beam Angle
- Pixel Mapping for Individual LED Control
- Pre-Programmed Color Macros and Strobe Effects
- 0–100% Linear Dimming with Smooth Transitions
- DMX, Master-Slave, Auto, and Sound Modes
- 1.8" Color LCD Display, 180° Rotatable
- 220° Tilt for Wide-Angle Movement
- PowerCon & 3/5-Pin DMX In/Out
Model Specifications
- Power Input: AC100–240V, 50/60Hz
- Power Consumption: 580W
- LED Source: 12 × 60W RGBW
- Average LED Lifespan: 50,000 Hours
- Beam Angle: 4.5° – 35.5° (Motorized Zoom)
- Strobe Rate: 1–25Hz
- DMX Channels: 18/56CH
- Control Modes: DMX, Master-Slave, Auto, Sound
- DMX Connectors: 3-Pin or 5-Pin XLR In/Out
- Power Connector: PowerCon In/Out
- Tilt Range: 220°
- Display: 1.8" Color LCD, 180° Rotatable
- IP Rating: IP20 (Indoor Use)
- Operating Temp: -10°C to 40°C (14°F to 104°F)
- Dimensions: 42.5 × 5.1 × 12.4 in (1080 × 130 × 315 mm)
- Weight: 48.5 lb (22 kg)
What's In The Box
- Crisp VIVID TREAD 1260YZ Fixture
- PowerCon Cable
- User Manual

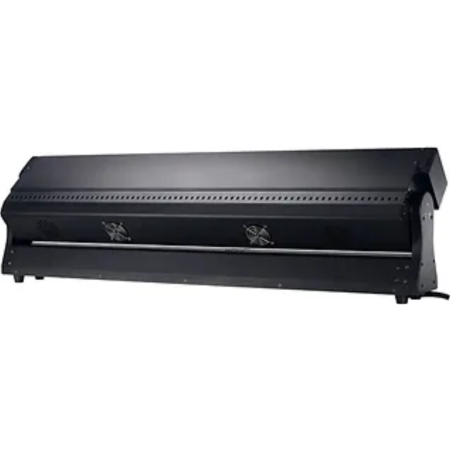

Crisp Vivid Tread 1260YZ
(Crisp SPL-LED-1260YZ)
