Color Key Creator BX7 Wash

Bee-Eye Moving Head Wash with Pixel and Kaleidoscope Effects

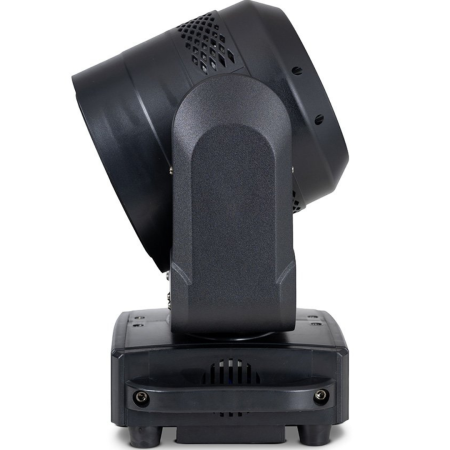

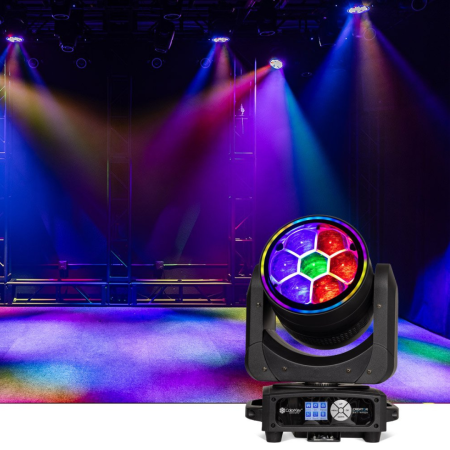

The Color Key CKU-5160 Creator BX7 Wash is a high-powered 280W RGBW LED Bee-Eye moving head luminaire designed to fill stages and venues with immersive color and dynamic effects. Whether you’re creating atmospheric washes or eye-popping aerial visuals, the BX7 Wash combines flexibility, performance, and design in a compact fixture that’s ideal for mobile productions, concerts, and installations.

Color Key CKU-5160 Competitive Differences

• 280W RGBW Bee-Eye LED engine with rich color output and high brightness
• Individual pixel control for mapping effects, chase patterns, and animations
• Rotating front lens cluster delivers kaleidoscope-style “flower” visuals
• Motorized zoom: tight beams (5°) to wide washes (25° field, 30° total angle)
• 50 pre-programmed patterns for plug-and-play show creation
• RGB halo syncs with other Creator Series lights for unified visual effects
• Frame Set position control: Frame Forward and Frame Up restrict beam movement
• Quick-release mounting and PowerCon linking streamline setup

Color Key CKU-5160 Description

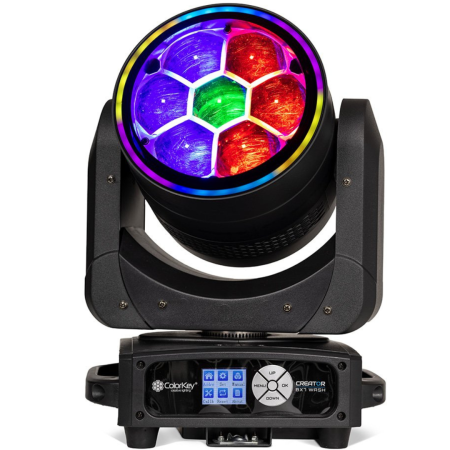

The Creator BX7 Wash by Color Key delivers versatile lighting performance, functioning as both a vivid wash light and an effect generator. Seven powerful 40W RGBW LEDs form the heart of the unit, each with individual pixel control for maximum creativity. This allows for animated pixel chases, color wave patterns, and complex scene transitions from a single fixture.

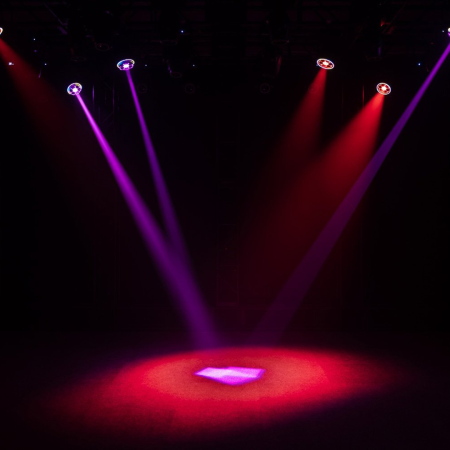

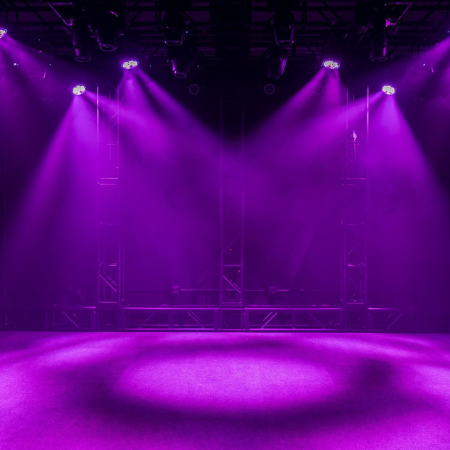

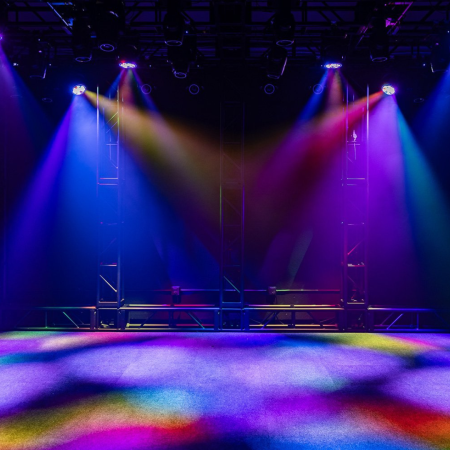

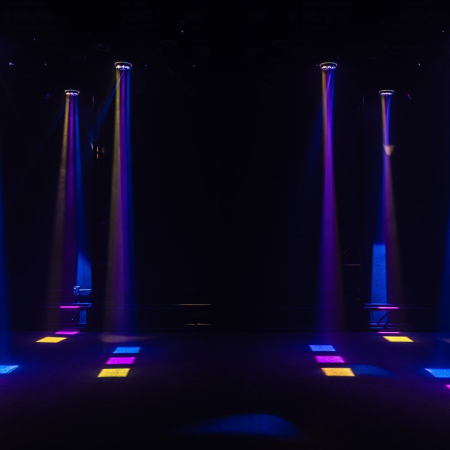

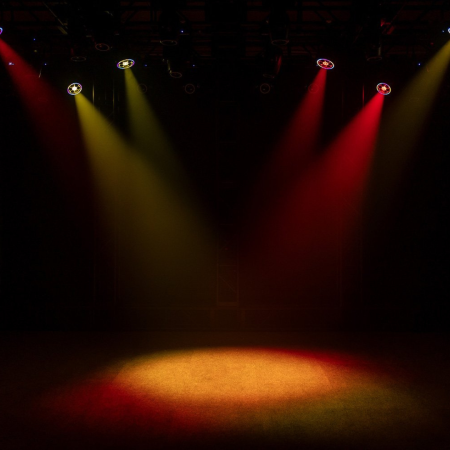

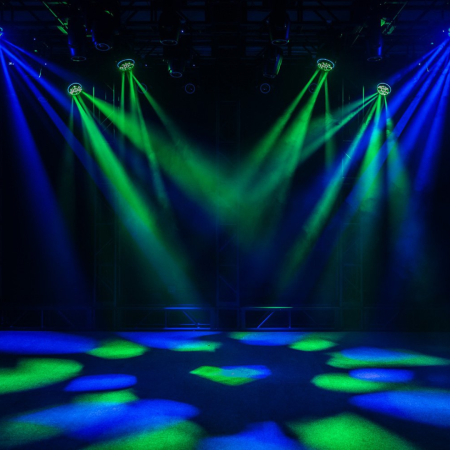

When zoomed out, the BX7 provides wide, soft color washes perfect for illuminating stages and audiences. Zoomed in, it becomes a narrow-beam fixture with crisp rays that can spin and chase using its lens rotation feature. The rotating front lens adds a layer of mesmerizing kaleidoscope effects, making it a visual centerpiece in any light show.

Designed for seamless integration, the RGB halo syncs perfectly with other Creator Series fixtures, while Frame Set control restricts unintended light spill. The unit also supports RDM and includes DMX Hold, so your lighting scenes stay intact even in signal loss scenarios. With easy-to-use controls and high creative potential, the BX7 Wash is a must-have for professionals seeking visual impact in a portable package.

CKU-5160 Features

• 280W LED Bee-Eye moving head wash fixture
• 7 x 40W RGBW LEDs with individual pixel control
• Rotating front lens cluster for kaleidoscope-style “flower” effects
• Zoom range: 5° to 25° (30° field angle)
• RGB halo with synchronized Creator Series effects
• 50 built-in animated patterns
• Independent dimmer and strobe control of beam and halo
• Frame Set mode with Frame Forward and Frame Up beam restriction

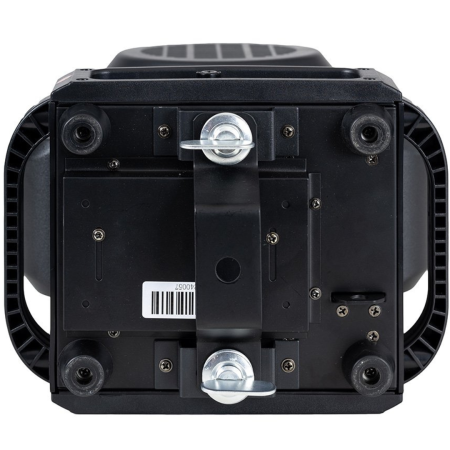

• Quick-release mounting bracket included
• 1.77” color LCD display for navigation

CKU-5160 Specifications

• Light Source: 7 x 40W RGBW LEDs
• Halo: 54 RGB LEDs with built-in effects
• Color Temperature: 2800K – 8500K
• LED Lifetime: 50,000 hours
• Beam Angle: 5°–25°
• Field Angle: 30°
• Brightness: 60,900 lux @ 2m (5°), 5,100 lux @ 2m (25°)
• Strobe: 1–30 Hz
• Dimmer: 0–100% linear
• Pan: 540° with fine adjustment
• Tilt: 250° with fine adjustment
• DMX Channels: 25 / 53 modes
• Control Modes: DMX512, Auto, Master-slave, Sound Active, RDM
• Display: 1.77-inch color LCD

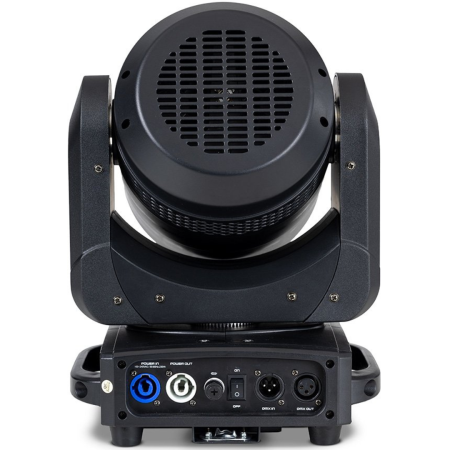

• Power Connection: PowerCon in/out
• DMX Connection: 3-pin DMX in/out
• Max Power Consumption: 350W
• Voltage: AC100–240V, 50/60 Hz
• Dimensions: 10.2" x 7.5" x 14.2" (26 x 19 x 36 cm)
• Weight: 13.9 lbs (6.3 kg)
• UPC: 810189840041
