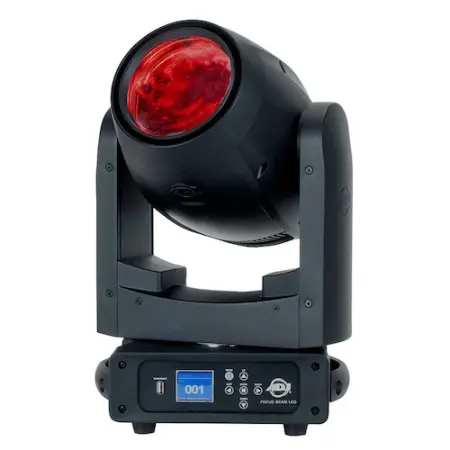

ADJ Focus Beam LED

The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear), and it has a built-in in frost filter for wash effects.

There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of dimming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.

The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect.

There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 3-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.

Features:

Control Protocol: DMX & RDM.
DMX Modes: 2 (16 & 18.)
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2.)
Dim Speed control (0.1~10 Seconds.)
Dimming: 0 - 100%.
Strobe & pulse control.
Motorized Focus.
Linear Frost 0-100% (Wash effect.)
2 Prisms: 6 & 8 Facet, Indexable and Rotatable.
USB firmware update port.
Adjustable LED Refresh Rates (900~25k Hz.)
Adjustable Gamma Settings (1.0-2.8.)
With Wired Digital Communication Network.
Display: Touch display with 5-button touch menu.

Specifications:

Light Source:
80W Cool White LED Engine
5° Beam Angle
Color Temperature: 7400K
50,000 Hour Average LED Life

Color Wheel:
13 dichroic colors + white

GOBO Wheel:
Metal wheel with 15 fixed GOBOs + Open
GOBO shake effect

Prism Wheel:
Prism Wheel 1: Rotatable 8-facet Circular
Prism Wheel 2: Rotatable 6-facet Linear
Prism Indexing with overlay feature

Control:
Control Modes: DMX512, RDM & Stand Alone Internal Programs
2 DMX Channel Modes: 16 & 18 channels
16-Bit Pan, Tilt & Dimmer control

Connections:
DMX Connections: 3-pin Locking XLR In & Out
Power Connections: Seetronic Locking Power In & Out

Pan/Tilt:
Pan & Pan Fine: 630 degrees
Tilt & Tilt Fine: 270 degrees

Electrical:
Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
Maximum Power Consumption: 136W @ 120V
Daisy chain: 15 units @ 120V; 30 units @ 230V

Dimensions & Weight:
Length: 17.59" (447mm)
Width: 10.96" (279mm)
Height: 7.54" (192mm)
Weight: 23 lbs. (10.2 kg)

American DJ Focus Beam LED (ADJ FOC369)
