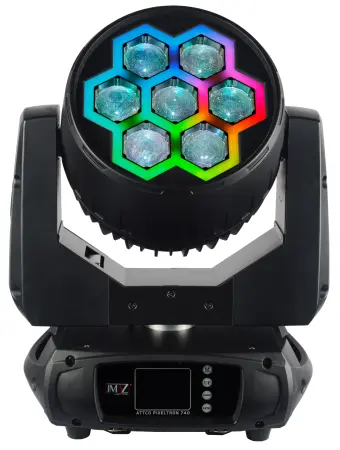

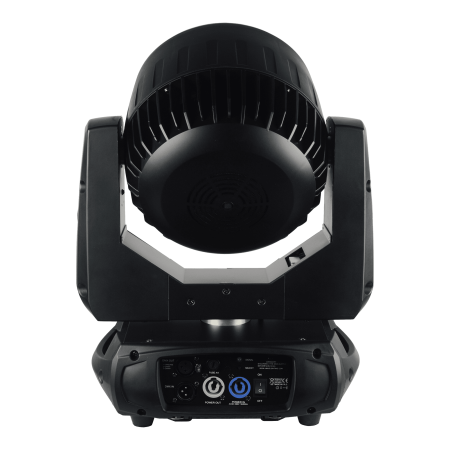

Name: JMaz Pixl Tron 740Z | 7 x 40W RGBW LED Wash Moving Head
Brand: JMAZ
SKU: 111814
Price: 849 USD
Availability: InStock

JMAZ PIXL TRON 740Z | 7 x 40W RGBW LED Wash Moving Head w/ Zoom and Tron Effects

The JMAZ PIXL TRON 740Z LED Wash Moving Head is designed to elevate your performance with stunning visual effects and impressive stage presence. Featuring 7 powerful 40W RGBW LEDs and 90 RGB SMDs, this fixture offers 280W of brightness and mesmerizing TRON-like effects. Ideal for professional stages, night clubs, and music video productions, the PIXL TRON 740Z ensures your event stands out.

Main Features

7 x 40W 4-IN-1 Quad RGBW LEDs & 90 x 0.2W RGB LEDs
DMX512, Master-Slave, Sound Active, and Built-in Shows
Individually Pixel Control on Each LED and Pixel Control Rings
Built-in Wireless DMX Technology

Competitive Differences

Honeycomb Tron Effect Overlay
Wide Zoom Range: 6° to 60°
High Temperature Engineered Plastic and Cast Aluminum Casing
Wi-MAZ Wireless DMX Technology

Technical Specifications

Light Source: 7 x 40W RGBW LEDs, 90 x 0.2W RGB SMDs
Color System: RGBW LEDs, RGB SMDs
Pan Angle: 630°
Tilt Angle: 270°
Pan/Tilt Resolution: 8 / 16 Bit
Dimmer: 0-100% Linear Dimmer
Max Power Consumption: 350W
Input Voltage: 110-240V, 50HZ/60HZ
Zoom: 6° to 60°
Control Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
DMX Channels: 25/31/59 Channel Modes
Display: 2.4″ TFT LCD Display
IP Rating: 20
Cooling: Fan
Dimensions: 12″ x 15.6″ x 15.6″
Weight: 21 lbs

What's in the Box

1 x PIXL Tron 740Z
1 x User Manual
2 x Omega Brackets
1 x 3ft 3-pin DMX Chord
1 x 3ft PowerCON Chord
1 x RF Remote

JMaz Lighting PIXL TRON 740 Z (JMAZ JZ3017)

Beam Angle	6° to 60° degrees
IP Rating	20
Power Consumption	350W max W
Power Rating	7 x 40W RGBW LEDs and 90 x 0.2W RGB LEDs W
Voltage Range	110-240V, 50HZ/60HZ V
Wattage	280W brightness W

Brand	JMAZ
Name	JMAZ PIXL TRON 740Z

Build Material	High Temperature Engineered Plastic and Cast Aluminum Casing
Dimensions	12" x 15.6" x 15.6" inches
Included Accessories	1 x User Manual, 2 x Omega Brackets, 1 x 3ft 3-pin DMX Chord, 1 x 3ft PowerCON Chord, 1 x RF Remote
Weight	21 lbs lbs

Control Interfaces	DMX512, W-DMX, Wi-MAZ Wireless DMX
Screen / Display	2.4″ TFT LCD Display

DMX Channel Modes	25/31/59 Channel Modes
Wireless DMX	Built-in Wireless DMX Technology, Wi-MAZ Wireless DMX Technology

Light Source: 7 x 40W RGBW LEDs, 90 x 0.2W RGB SMDs; Color System: RGBW LEDs, RGB SMDs; Pan Angle: 630°; Tilt Angle: 270°; Pan/Tilt Resolution: 8 / 16 Bit; Dimmer: 0-100% Linear; Max Power Consumption: 350W; Input Voltage: 110-240V, 50/60Hz; Zoom: 6° to 60°; Control Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX; DMX Channels: 25/31/59; Display: 2.4" TFT LCD; IP Rating: 20; Cooling: Fan; Dimensions: 12" x 15.6" x 15.6"; Weight: 21 lbs.

1 x PIXL Tron 740Z, 1 x User Manual, 2 x Omega Brackets, 1 x 3ft 3-pin DMX Chord, 1 x 3ft PowerCON Chord, 1 x RF Remote.
