Color Key Creator Spot 250

Professional Moving Head Spot with RGB Halo and Dual Gobo Wheels

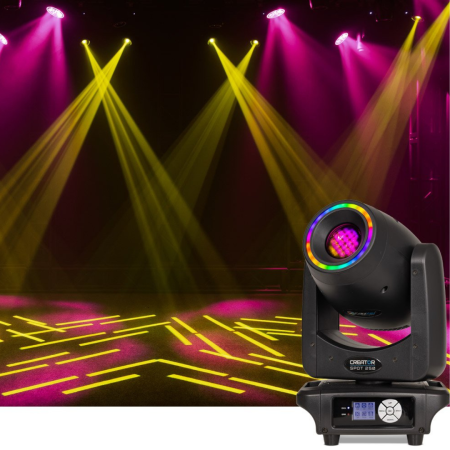

The Color Key CKU-5120 Creator Spot 250 is a feature-packed 200W moving head spot designed for professionals seeking powerful output, creative flexibility, and synchronized lighting visuals. It’s ideal for DJs, clubs, live productions, and permanent installations, delivering sharp gobos, rich colors, and pre-programmed halo effects all in one compact fixture.

Color Key CKU-5120 Competitive Differences

• 200W white LED with motorized focus for razor-sharp gobos at almost any distance
• RGB halo ring with 20 dynamic LEDs that sync with other Creator Series lights
• Dual gobo wheels: 7 static gobos + 6 rotating gobos, including one textured glass design
• 8-color wheel plus open and split color mixing options
• 6-facet rotating prism for vibrant multi-beam effects
• Frame Set positioning mode: Frame Forward and Frame Up restrict pan/tilt to avoid unwanted beam spill
• Independent strobe and dimmer control of both beam and halo effects
• DMX Hold feature maintains output during signal loss

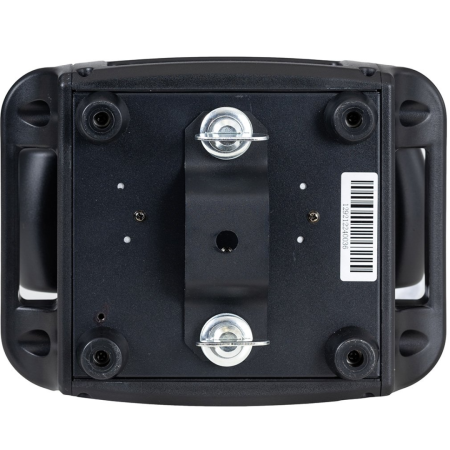

• Quick-release mounting bracket and PowerCon In/Out for fast, secure setup

Color Key CKU-5120 Description

The Creator Spot 250 is a professional-grade moving head fixture that excels in both stage and mobile applications. Featuring a powerful 200W LED engine, it projects stunning gobos, bold colors, and dramatic prism effects. The integrated motorized focus ensures precision at any distance, while the RGB halo enhances the light beam with synchronized chases and patterns compatible across the Creator Series.

Its dual gobo wheels offer a wide range of creative textures, from crisp static patterns to dynamic rotating effects, including a unique textured glass gobo. The 6-facet prism transforms beams into captivating mid-air visuals, making the Creator Spot 250 a go-to fixture for immersive lighting environments.

Built with practical design in mind, it includes the innovative Frame Set system to keep beams aimed where they belong—on the show, not the audience. Easy transport and setup are ensured with its quick-release bracket and rugged design, while the DMX Hold feature and PowerCon linking maximize reliability and workflow speed.

CKU-5120 Features

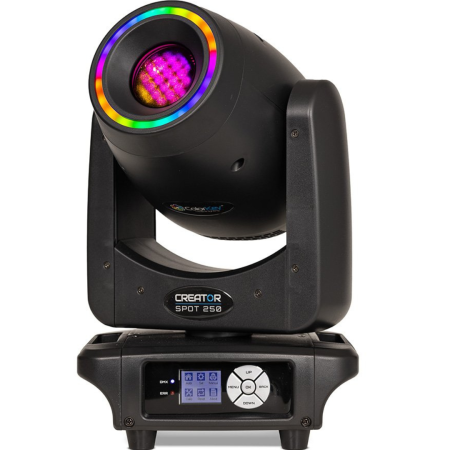

• 200W white LED spot with motorized focus
• 20 RGB halo LEDs with built-in chases
• 8-color wheel with open and split-color capability
• 7 static gobos and 6 rotating gobos with shake effects
• 6-facet rotating prism
• Beam angle: 10.5° with 64mm lens diameter
• Frame Set tilt/pan position limit controls
• 0-100% linear dimming and 1–25Hz strobe rate
• Control: DMX512, Master/Slave, Auto, Sound Active
• 1.77-inch color LCD display
• Quick-release mounting bracket

CKU-5120 Specifications

• Color Temperature: 11,000K
• Illuminance: 38,400 lux @ 2m
• DMX Channels: 22
• Pan: 540° / Tilt: 270° with fine adjustments

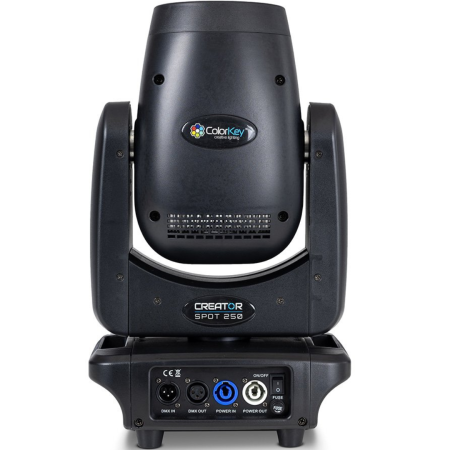

• Power Connection: PowerCon In/Out
• DMX Connection: 3-pin XLR In/Out
• LED Lifetime: 20,000 hours
• Max Power Consumption: 250W
• Voltage: AC100–240V, 50/60Hz
• Dimensions: 17" x 10.2" x 7.5" (43 x 26 x 19 cm)
• Weight: 15.2 lbs (6.9 kg)
• UPC: 810189840027

COLORKEY CKU-5120 (Color Key Creator Spot 250)
