Name: JMaz ATTCO Beam 230 | 230 Watt Lamp - 2.5 Degrees | Moving Head Beam with Frost Filter & DMX
Brand: JMAZ
SKU: ATTCO BEAM 230
Price: 789.99 USD
Availability: InStock

JMaz ATTCO Beam 230 | 230 Watt Lamp - 2.5 Degrees | Moving Head Beam with Frost Filter & DMX

JMAZ Attco Beam 230 Moving Head with 230 watt Lamp
The JMAZ ATTCO HYBRID 230 Features with Super Prisms (16 facet+24 facet prism)and a powerful, ultra bright OSRAM 7R lamp, 3 phase motors , Solid Beam angle: 2.5° ,Anti-reflection 136mm front lenses. JMAZ ATTCO HYBRID 230 is integrated with a full complement of professional characteristics including a static gobo wheel (16 gobos) ,a color wheel (11 colors), Frost filter, Motorized focus from near to far (2.5M-30M), variable speed shutter/strobe, and 0-100% linear dimmer.

Features:
2.5° Beam angle
Anti-reflection 136mm front lenses
Motorized focus from near to far(2.5M-30M)
Dual prism wheel,8-facet prism+24-facet prism with variable speed
8 Built-in lighting shows
Built-in wireless DMX technology
Frost filter available (Hybrid effect for wash)
Dual flag mechanical dimming system
20T/sec high speed LED shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect
2.4' TFT LCD display (320.240pix)
Display reversible for up side down application

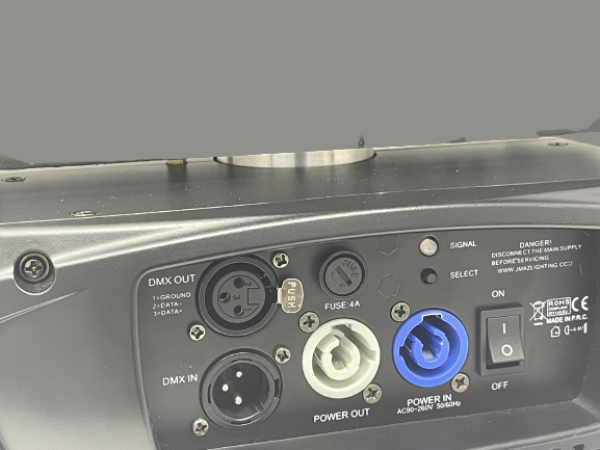

Powercon IN/OUT
3-Pin XLR connectors IN/OUT
Lamp using time readable on the display
I P20 protection rating
55dB at 3'dB rating
2*114 turn fastening Omega clamps
1·safety attachment point available

Specifications:

1X OSRAM SIRIUS HRI 231W Lamp
2000 Hours rated lamp source
Input Voltage:AC90-260V 50/60Hz
Power Consumption: 310W
Control Signal:DMX512, master-slave and sound activated or auto operation (8 built-in programs)
Control Channel:
14/16 DMX channels USITT
DMX-512
Dimensions: 12"x 8.8"x 17" /30.7*22.4*43.5cm
Packing Dimensions: 17"x 1 0"x 20" /44*26.5*51.5cm
Net Weight: 28.16 lbs. / 12.8kgs
Gross Weight: 34 lbs. / 15.6kgs
Movement: Smooth and precise resolution for PAN/TILT movement 630° /540° /360° PAN and 270°/180° /90° TILT movement optional
Colors: 1 Color wheel with 11 colors plus open
Gobos: 1 Static gobo wheel with 16 gobos plus open

Functions:

Electronic ballast and power supply
Improved optics and flat beam field
No need for adjustment of reflector or lamp
Variable direction rainbow effect with speed adjustable
Vector mode with blackout MIB function
Constant temperature readout and management function
Fan cooling system
-35-45°C max ambient temperature

JMaz Lighting Attco Hybrid 230 (JMAZ Attco Beam-230)

Research with AI

Beam Angle	2.5° degrees
IP Rating	IP20
LED Type	OSRAM SIRIUS HRI 231W Lamp
Power Consumption	310W W
Power Rating	230 watt Lamp W
Voltage Range	AC90-260V 50/60Hz V
Wattage	230 W W

Brand	JMAZ
Name	JMaz ATTCO Beam 230

Control Interfaces	DMX512, master-slave, sound activated, auto operation
Screen / Display	2.4' TFT LCD display (320x240 pixels), reversible inch
Wireless Capabilities	Built-in wireless DMX technology

Dimensions	12"x 8.8"x 17" / 30.7 x 22.4 x 43.5 cm cm
Included Accessories	Frost filter, 2*114 turn fastening Omega clamps, safety attachment point
Weight	28.16 lbs / 12.8 kgs kg

DMX Channel Modes	14/16 DMX channels USITT channels

Warranty Length	Not specified years

Why to Invest?

The JMAZ ATTCO Beam 230 offers a powerful and precise moving head beam with a narrow 2.5° beam angle, versatile color and gobo options, motorized focus, and advanced control features including wireless DMX. Its robust build and cooling system make it suitable for professional stage and event lighting.

How it Works?

The fixture uses a 230 watt OSRAM lamp combined with advanced optics and motorized components to produce a sharp, bright beam with customizable effects. Control is achieved via DMX512 or built-in wireless DMX, allowing for precise movement, color, gobo, and strobe control. The frost filter enables hybrid wash effects, and the motorized focus adjusts beam sharpness over distances from 2.5 to 30 meters.

What's Unique?

Unique features include dual prism wheels with variable speed, a dual flag mechanical dimming system, a reversible TFT LCD display for flexible mounting, and integrated wireless DMX technology. The fixture also offers a high-speed LED shutter/strobe effect and a frost filter for hybrid beam and wash effects.

Key Features

2.5° beam angle, dual prism wheel (8-facet + 24-facet) with variable speed, 8 built-in lighting shows, frost filter for hybrid effects, dual flag mechanical dimming, high speed LED shutter/strobe effect at 20T/sec, preset variable/random strobe and dimming pulse effects, powercon IN/OUT, 3-pin XLR connectors, lamp usage time readable on display, fan cooling system, and operating temperature range from -35 to 45°C.

Technical Specifications

Lamp: OSRAM SIRIUS HRI 231W rated for 2000 hours. Power consumption: 310W. Input voltage: AC90-260V 50/60Hz. Control channels: 14/16 DMX channels USITT. Dimensions: 30.7 x 22.4 x 43.5 cm. Net weight: 12.8 kg. Movement: PAN 630°/540°/360°, TILT 270°/180°/90° optional. Noise level: 55dB at 3dB rating.
