JMaz Phantom Beam 120 LED

2 Degrees, 11-Color Moving Head w/ Wireless DMX

$649.00 Available
$0 Tax $13 Back or Join VIP for upfront discounts.

(more)

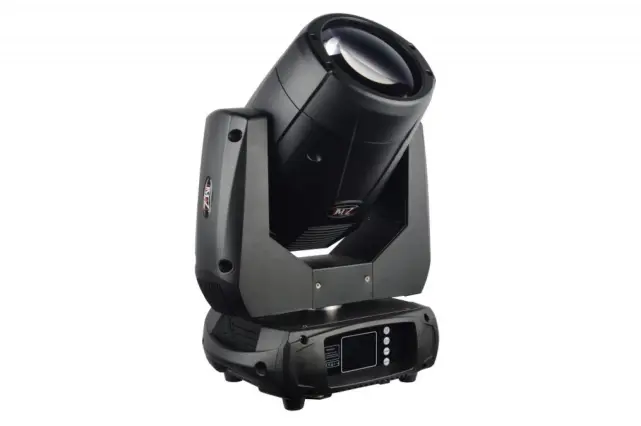

JMAZ Lighting PHANTOM BEAM 120 LED 11-Color LED Moving Head with Wireless DMX (Black)

Lighting professionals looking for a moving head spot/beam/wash light with wireless DMX capabilities will appreciate the black JMAZ Lighting PHANTOM BEAM 120 LED, a bright LED moving head well suited for installations, large-scale concerts, TV studios, mobile performances, night shows, weddings, stages, one-off events, rental houses, houses of worship, and mobile DJ applications. The fixture is powered by a 120W white LED and includes a color-wheel (11 colors + open) and a Gobo wheel (19 static Gobos). The 6-facet linear prism and 8+16-facet circular prism feature independent variable speed and direction, allowing you to create impressive aerial effects over large areas.

Competitive Differences

  • Powered by 120W cool white LED 7500k
  • Built-in Wi-MAZ Wireless DMX technology
  • Beam angle: 2°
  • 9 built-in shows with RF remote control included
  • 19 static Gobos plus open
  • Electronic dimming: 0 to 100%

Full Product Description

The PHANTOM BEAM 120 LED features 8-/16-bit pan and tilt movement for smooth and precise resolution. The fixture features several control modes including primary/secondary, sound activated, automatic, RF remote control, and DMX (12/14 channel modes). The integrated Wi-MAZ wireless DMX technology allows for complete control without DMX cables. The control panel includes an LCD menu with four-buttons for manual setup as well as two 3-pin DMX I/O. The PHANTOM BEAM 120 LED includes an Omega bracket, powerCON power cord, a DMX signal cable, an RF remote control, and a safety cable.

Features

  • For Concerts, TV Studios, Mobile Shows
  • 1 x 120W White LED Light Source
  • 0 to 100% Dimming and Variable Strobe
  • DMX, Auto, Sound, RF Remote Control
  • Built-In Wi-MAZ Wireless DMX Technology
  • Gobo Wheel (19 Static)
  • Color Wheel (11 Colors + Open)
  • 2° Beam Angle + 3-Pin DMX I/O
  • 8/16-Bit Resolution for Pan/Tilt
  • Includes Omega Bracket and Power Cord

Specifications

  • Net Weight: 5.9kg; 13.0lbs
  • Applicable for: DZR15/15-D, DZR15W/15-DW, CZR15, CZR15W
  • Light Source: 1 x 120W White LED Light Source
  • Beam Angle: 2°
  • Pan/Tilt Movement: 360 / 540 / 630° pan and 90 / 180 / 270° tilt movement
  • Control Protocols: DMX512, Art-Net
  • DMX Channels: 12/14 channel modes

What's in the Box

  • 1 x JMAZ Lighting PHANTOM BEAM 120 LED
  • 1 x Omega Bracket
  • 1 x PowerCON Power Cord
  • 1 x DMX Signal Cable
  • 1 x RF Remote Control
  • 1 x Safety Cable

JMaz Lighting Phantom Beam120LED (JMAZ JZ3016)

Beam Angle 2° degrees
LED Type White LED 7500K
Power Rating 120W W
Wattage 120W W

Brand JMAZ
Name JMAZ Phantom Beam 120 LED
Primary Category Moving Head Light

DMX Channel Modes 12/14 channel modes
Wireless DMX Built-in Wi-MAZ Wireless DMX technology

Included Accessories Omega bracket, powerCON power cord, DMX signal cable, RF remote control, safety cable
Weight 5.9kg kg

Ideal for concerts, TV studios, mobile shows, weddings, and rental houses, the Phantom Beam 120 LED offers powerful 120W LED output with precise pan/tilt control and wireless DMX for flexible installation and operation.

The fixture uses a 120W white LED light source combined with color and gobo wheels and prisms to create dynamic lighting effects. It supports wireless DMX control via Wi-MAZ technology and multiple control modes for versatile operation.

The built-in Wi-MAZ Wireless DMX technology eliminates the need for DMX cables, and the combination of 11-color wheel, 19 static gobos, and dual prisms with variable speed and direction enables complex aerial effects.

Powered by 120W cool white LED (7500K), built-in Wi-MAZ Wireless DMX technology, 2° beam angle, 19 static gobos plus open, electronic dimming from 0 to 100%, 9 built-in shows with RF remote control, 8/16-bit pan and tilt resolution, multiple control modes including DMX and sound activated, includes Omega bracket and power cord.

Net weight: 5.9kg (13.0lbs). Pan movement: 360/540/630°. Tilt movement: 90/180/270°. Control protocols: DMX512, Art-Net. DMX channels: 12/14 channel modes.

Omega bracket, powerCON power cord, DMX signal cable, RF remote control, safety cable.
