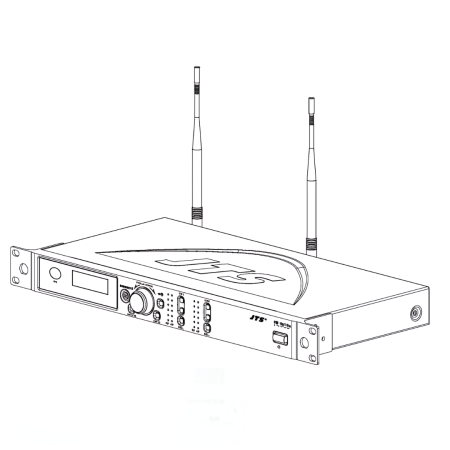

JTS IS-R2
Dual Channel Diversity Receiver

IS-R2 is a rack mountable dual channel mic system that is compatible with the JTS R4 and all R4 series transmitters. The IS-R2 is a 3rd generation true diversity system with antenna and power cascading for easy multi-channel configuration.

Perfect for venues which are inherently difficult to receive good RF and anywhere where solid reception is priority.

The IS-R2 is equipped with Remoset, which is a 2.4 GHz function that allows you to simultaneously synch up to 48 transmitters and receivers. Remoset allows important functions of the hand-held transmitter to be remotely controlled via the receiver which is particularly helpful in live production environments. It allows you to quickly adjust the microphone sensitivity, RF frequency, RF power, and much more.

FEATURES:

3rd generation True Diversity system.
Transmission power selectable between '"High" and "Low".
6 groups are provided as default. Every group contains up to 23 default channels.
There are in total 1,441 channels to choose from.
36MHz bandwidth.
The patented ultrasonic pairing for synchronized setting of all parameters.
Channel scan.
Adjustable receiving sensitivity.
Automatic microphone power off.
Charging contact ready.

SPECIFICATIONS:

Frequency Oscillation Mode Phase-locked loop (PLL)
Carrier Frequency Range 470~960 MHz
Remoset Frequency 2.4 GHz Diversity
True diversity Bandwidth 36MHz Signal/Noise Ratio >105dB(A)
Total Harmonic Distortion (Thd) <0.6%@1KHz
Receiving Sensitivity-95dBm，S/N>80dB
Image Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type 1/2λ BNC detachable
Antenna Booster Power DC12V/100mA
Function Display By LCD Contents Of Display Group, channel, frequency, battery level, antenna A/ B, muting level, AF indication, RF indication, channel scanning, output level attenuation, volume indication
Control Functions Power, group, channel, frequency, muting level, button lock, volume, output attenuation (XLR),  scan ,Mix Output Audio Frequency Output Level(MAX) Ø6.3 Phone Jack：+4dBu XLR Jack：+10dBu(Line)、-10dBu(MIC)
Audio Frequency Output Impedance 600Ω
Muting Noise muting and tone code locking
Output Port 2 x balanced XLR jack 2 x unbalanced Ø6.3 jack
Power Supply 100~240VAC
Dimension (Mm) 485mm (W) x45mm (H) x 260mm (L)

J T S IS R2 (JTS Dual Channel Diversity Receiver)
