High-Capacity Audio Network Converter
The
Midas MDS-AS 88 is a rugged, high-performance audio network interface designed to convert dual high-bitrate HyperMAC connections into eight fully redundant AES50 connections—supporting up to 192 bidirectional channels at 96 kHz. With advanced redundancy and ultra-fast switching, it's the backbone of reliable, high-channel-count live sound systems.
Midas MDS-AS 88 Competitive Differences
- Converts dual HyperMAC to 8 redundant AES50 SMAC streams
- Supports up to 192 bidirectional audio channels at 96 kHz
Midas MDS-AS 88 Description
The
Midas MDS-AS 88 delivers rock-solid redundancy and high-channel-capacity audio transport for demanding live production environments. Built to integrate with flagship consoles like the Midas HD96, this unit enables full dual-port redundancy and expanded system architecture using AES50 SMAC connections.
Engineered with FPGA-based technology, the AS88 guarantees ultra-fast failover between connections, ensuring uninterrupted audio performance even in failure scenarios. With eight redundant AES50 ports, it’s ideal for connecting stage boxes, I/O systems, or distributing audio throughout complex setups.

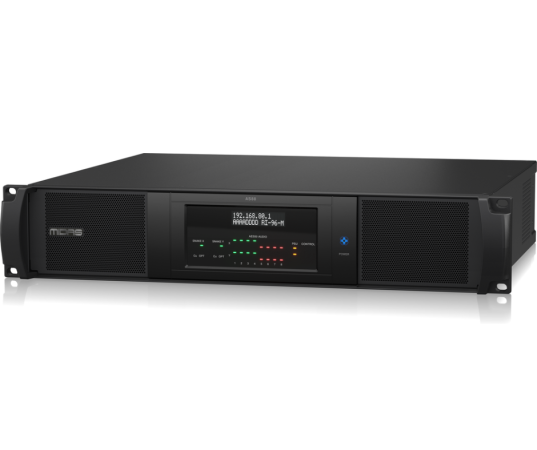

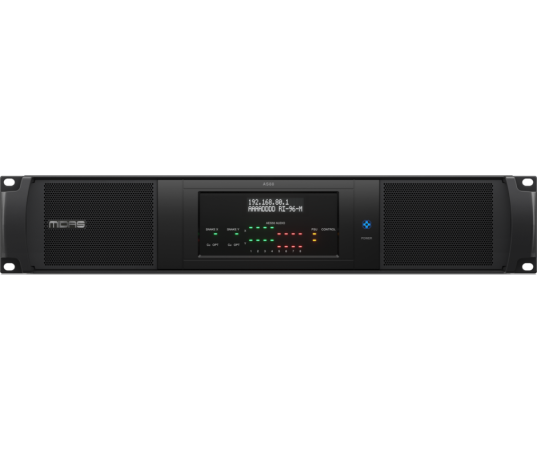

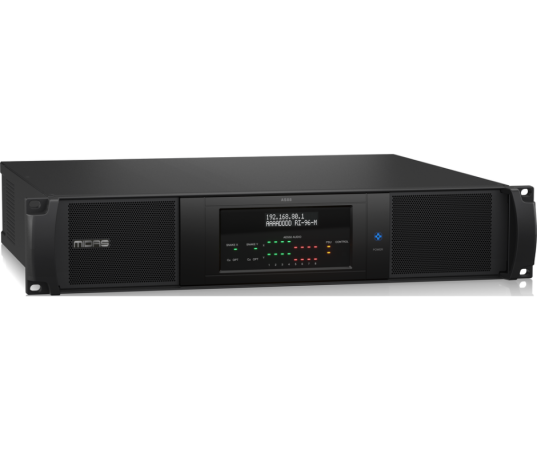

The 2U rackmount chassis is built for touring-grade durability and features both RJ45 and optical connectors for versatile deployment in copper or fiber environments. Whether you’re expanding I/O on a festival rig or building out a multi-console production, the AS88 offers unmatched reliability and clarity.
Model Features
- Dual redundant HyperMAC input for full-failover audio switching
- Eight redundant AES50 outputs (SMAC) for maximum flexibility
- Up to 192 bidirectional audio channels at 96 kHz
- Dual auto-ranging universal power supplies for added reliability
- Advanced FPGA-based switching for ultra-fast redundancy

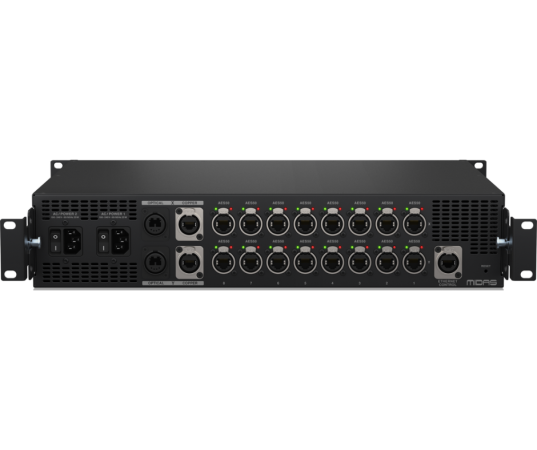

- Industry-standard RJ45 and optical connectors
- Compact and durable 2U rackmountable chassis
Model Specifications
- Form Factor: 2U rackmount
- Height: 8.8 cm (3.46 in)
- Width: 44 cm (17.32 in)
- Depth: 48.2 cm (18.98 in)
- Weight: 6.38 kg (14.06 lb)
- Channel Support: Up to 192 bidirectional @ 96 kHz
- Snake Ports: 8 x AES50 (RJ45), HyperMAC optical and copper inputs
- Power Supply: Dual redundant, auto-ranging switch-mode
What's In The Box
- Midas MDS-AS 88 unit
- Dual power cables
- Quick start guide
Midas MDS-AS 88
(Midas MDS-AS88)
