24-Input Digital Stage Box
The
Midas MDS-DL151 is a rugged, high-quality 24-input stage box designed to deliver pristine audio capture and flexible remote operation. Ideal for stage and FOH applications, it connects over standard CAT5/5e cable up to 100 meters, offering seamless integration into Midas digital console systems.
Midas MDS-DL151 Competitive Differences
- Remote control up to 100m via CAT5/5e cable
- Selectable 96 kHz or 48 kHz operation for flexible workflows
Midas MDS-DL151 Description
Built for touring and live sound environments, the
Midas MDS-DL151 provides 24 remote-controllable mic/line inputs in a compact, rack-mountable format. Whether it’s used on stage or as part of a distributed I/O network, the DL151 offers studio-grade input circuitry and flexible sample rate support (48 kHz or 96 kHz), ensuring clean and detailed audio capture.

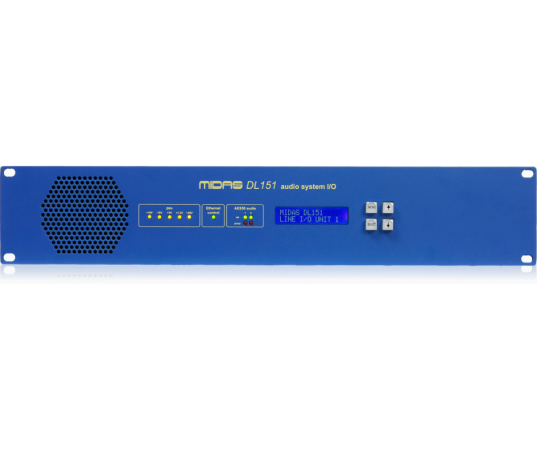

Configuration is easy via onboard controls, allowing engineers to adjust settings directly from the front panel or remotely from a connected Midas console. A clear LCD screen and PSU status LEDs keep vital system information visible at all times, providing peace of mind during demanding shows.
Engineered with the legendary Midas sound and build quality, this stage box is a reliable addition to any live setup, especially when paired with Midas consoles and AES50 networking systems.
Model Features
- 24 remote-controlled mic/line input channels
- Remote operation over CAT5/5e cable up to 100 meters
- Selectable 96 kHz or 48 kHz sample rate
- Onboard configuration LCD display
- Front-panel programmable settings
- PSU status indicator LEDs
- Robust metal chassis for touring use
Model Specifications
- Height: 8.8 cm (3.46 in)
- Width: 37.6 cm (14.80 in)
- Depth: 48.3 cm (19.01 in)
- Weight: 6.9 kg (15.21 lb)
- Remote Connection: CAT5/5e (up to 100m)
- Sample Rates: 48 kHz / 96 kHz
What's In The Box
- Midas MDS-DL151 stage box
- Power cable
- User documentation
Midas MDS-DL151
(Midas MDSDL151)
