24-Output Digital Stage Box
Midas MDS-DL152 is a 2U digital stage box offering 24 line-level outputs with remote controllability over standard CAT5/5e cable. Designed for seamless integration with Midas digital mixing systems, it provides high-quality audio conversion, intuitive local control, and flexible deployment for live and installed sound environments.
Midas MDS-DL152 Competitive Differences
- Remote operation up to 100 meters via CAT5/5e cable
- Selectable 48 kHz or 96 kHz sample rates
Midas MDS-DL152 Description
The
MDS-DL152 is a 24-output digital I/O expander purpose-built to extend the routing capabilities of Midas digital consoles. Housed in a rugged 2U rackmount chassis, it connects to your system via AES50 digital networking and supports remote operation up to 100 meters using a single CAT5/5e cable.

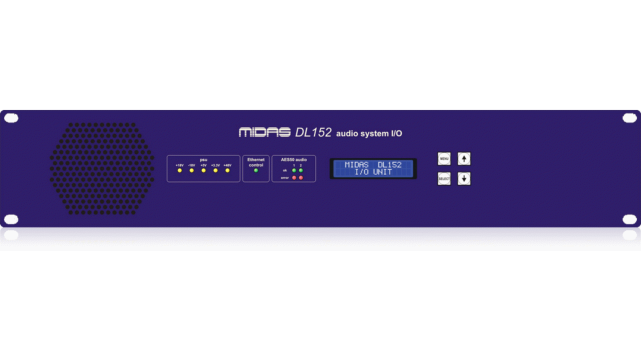

The DL152 features a choice of 48 kHz or 96 kHz operation, making it compatible with both standard and high-resolution digital audio workflows. All settings can be configured locally via the intuitive front panel, which includes a backlit LCD screen and PSU status indicator LEDs for real-time monitoring.
Whether you're deploying it on stage for monitor mixes or in a broadcast rack for signal distribution, the MDS-DL152 provides the trusted reliability and sound quality of Midas, with the flexibility demanded by modern productions.
Model Features

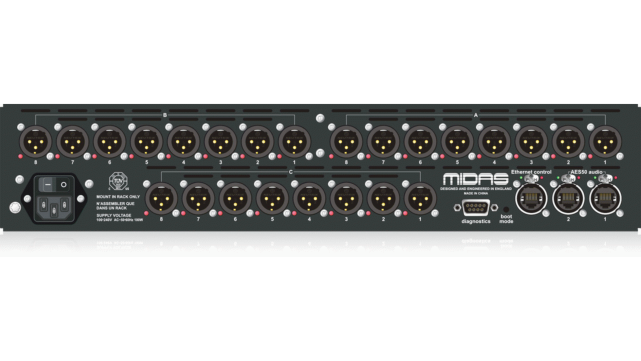

- 24 analog line-level outputs
- Remote control via CAT5/5e up to 100 meters
- Selectable 48 kHz or 96 kHz sample rates
- Front-panel LCD screen for configuration and status
- PSU status indicator LEDs for power monitoring
- Compatible with Midas digital consoles via AES50
Model Specifications
- Outputs: 24 x analog line-level
- Networking: CAT5/5e over AES50 (up to 100m)
- Sample Rate: Selectable 48 kHz or 96 kHz
- Display: Front-panel LCD with status LEDs
- Dimensions: 48.3 x 37.6 x 8.8 cm
- Weight: 6.9 kg
What's In The Box
- Midas MDS-DL152 stage box
- Power cable
- User documentation
Midas MDS-DL152
(Midas DL152-UL)
