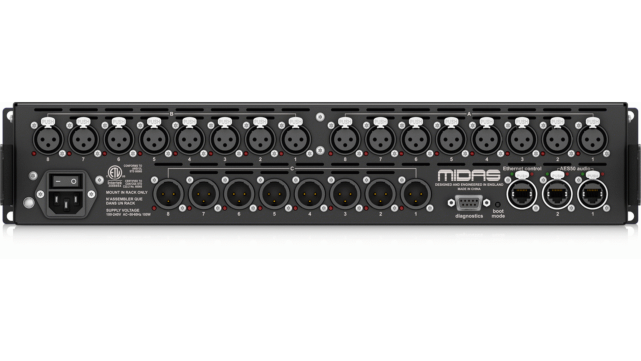

16-In / 8-Out Digital Stage Box
Midas MDS-DL153 is a high-performance stage box offering 16 analog inputs and 8 balanced line-level outputs, designed to expand the I/O capabilities of Midas digital mixing systems. With remote control via CAT5/5e and support for 48kHz or 96kHz operation, it delivers flexibility and pristine signal integrity for live sound and installed audio systems.
Midas MDS-DL153 Competitive Differences
- Remote I/O via CAT5/5e up to 100 meters
- Selectable sample rates for compatibility with various systems
Midas MDS-DL153 Description
The
MDS-DL153 is a professional-grade digital stage box featuring 16 analog inputs and 8 electronically balanced outputs. Built to integrate seamlessly with Midas consoles via AES50 networking, it offers rock-solid audio performance and fast setup over a single CAT5/5e cable.
Ideal for live production, broadcast, and fixed installations, the DL153 allows remote operation up to 100 meters away from the console. The front panel includes intuitive controls and an LCD display for local configuration and status monitoring, while its selectable 48 kHz or 96 kHz sample rate ensures compatibility with high-resolution audio workflows.
With its rugged rackmount design and reliable connectivity, the MDS-DL153 is a dependable solution for professional sound reinforcement and digital audio distribution.
Model Features
- 16 analog inputs and 8 balanced line-level outputs
- Remote operation up to 100 meters via CAT5/5e cable
- Selectable 48 kHz or 96 kHz sample rate

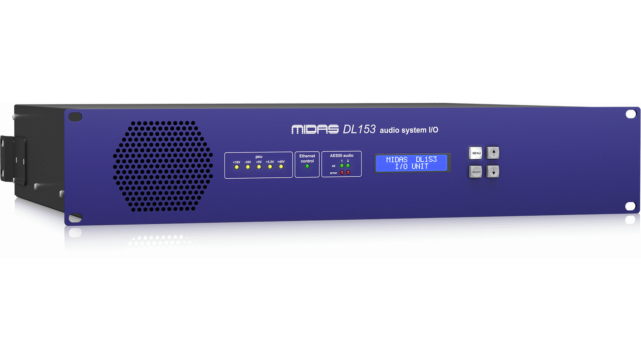

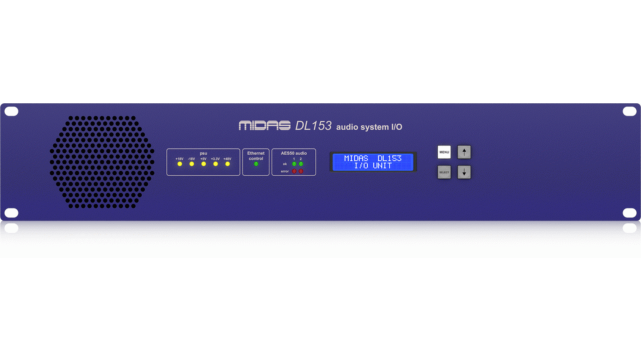

- Front panel LCD and control interface for local configuration
- AES50 networking for seamless Midas console integration
Model Specifications
- Inputs: 16 x analog mic/line
- Outputs: 8 x balanced line-level
- Networking: AES50 via CAT5/5e (max 100m)
- Sample Rate: 48 kHz / 96 kHz (selectable)
- Dimensions: 48.3 x 37.6 x 8.8 cm
- Weight: 6.7 kg
What's In The Box
- Midas MDS-DL153 stage box
- Power cable
- User documentation
Midas MDS-DL153
(Midas DL153-UL)
