8-In / 16-Out Digital Stage Box
Midas MDS-DL154 is a robust and reliable digital stage box offering 8 analog mic/line inputs and 16 electronically balanced line-level outputs. Perfect for expanding output capacity in Midas digital mixing environments, it supports remote configuration via AES50 networking over CAT5/5e cable up to 100 meters.
Midas MDS-DL154 Competitive Differences
- 16 analog line-level outputs for extensive routing flexibility
- Remote-controlled via CAT5/5e with up to 100m range
Midas MDS-DL154 Description
The
MDS-DL154 delivers professional-grade audio performance and networked control in a rugged 2U rackmount chassis. Designed for seamless integration with Midas consoles via AES50, it offers a flexible I/O configuration with 8 high-quality inputs and 16 balanced outputs—making it ideal for monitor world, multi-zone PA feeds, or broadcast send routing.
With selectable 48 kHz or 96 kHz operation, the DL154 adapts easily to various audio systems and project requirements. The front-panel LCD and controls allow for quick local adjustments, while full remote configuration is also available from the connected console.
Built for touring and installed AV environments, the MDS-DL154 offers reliable connectivity, superior sound quality, and the scalable I/O expansion trusted by audio professionals worldwide.
Model Features
- 8 analog mic/line inputs

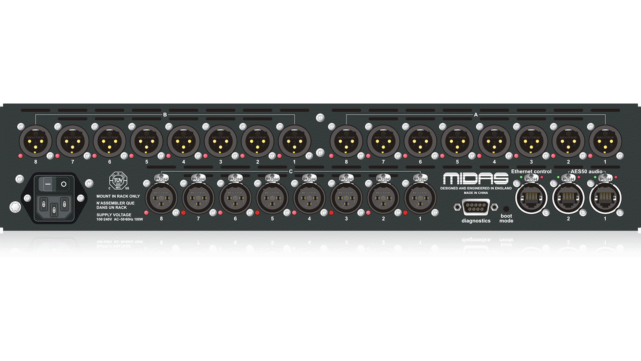

- 16 electronically balanced line-level outputs
- Remote operation via CAT5/5e up to 100 meters
- Selectable 48 kHz or 96 kHz sample rate

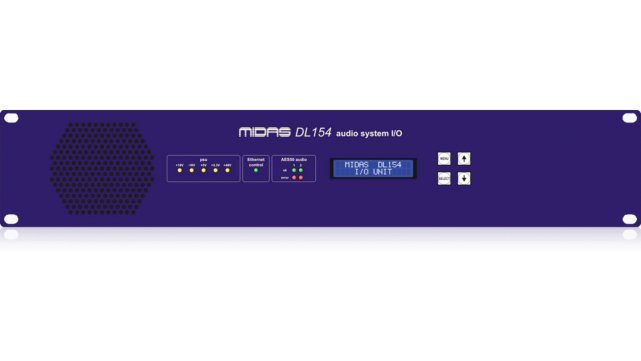

- Front-panel LCD and LED indicators for easy setup
- Compatible with Midas digital consoles via AES50
Model Specifications
- Inputs: 8 x analog mic/line
- Outputs: 16 x balanced line-level
- Networking: AES50 over CAT5/5e (100m max)
- Sample Rate: 48 kHz or 96 kHz (selectable)
- Dimensions: 48.3 x 37.6 x 8.8 cm
- Weight: 6.9 kg
What's In The Box
- Midas MDS-DL154 stage box
- Power cable
- User documentation
Midas MDS-DL154
(Midas DL154-UL)
