NovaStar KU20

3.9 Million-Pixel Capacity

$1,499.95 Available
$0 Tax $340 Back or Join VIP for upfront discounts.

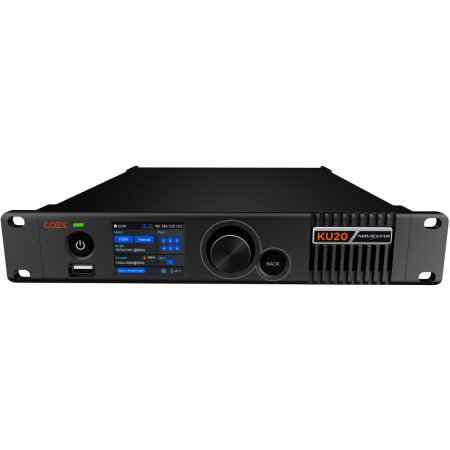

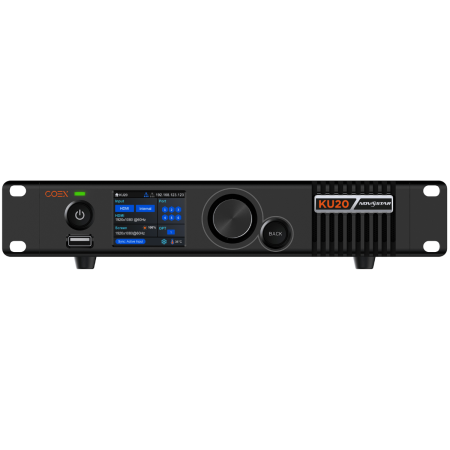

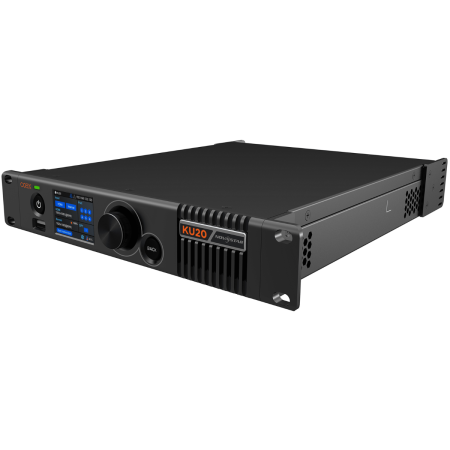

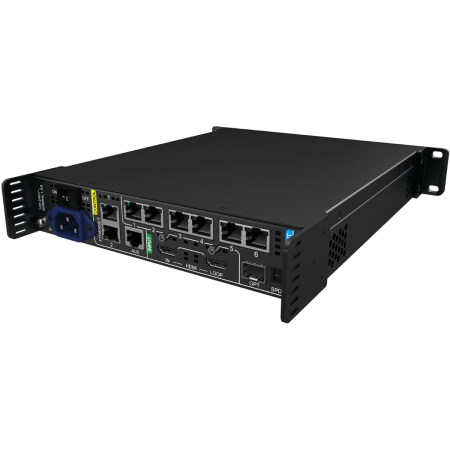

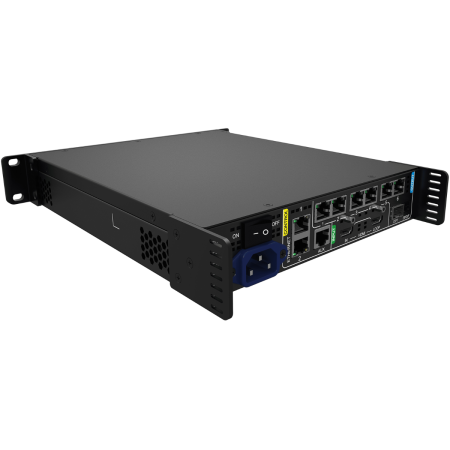

NovaStar KU20 | 3.9 Million-Pixel Capacity | Compact 0.5U Controller with 10G Optical Output

LED Display Controller

The NovaStar KU20 is a compact LED display controller designed to process and distribute video signals to professional LED display systems. It supports up to 3.9 million pixels and combines HDMI input, six Ethernet outputs, a 10G optical connection, digital audio output, and network control in a space-saving 0.5U chassis.

NovaStar KU20 Competitive Differences

  • Supports LED displays with a total loading capacity of up to 3.9 million pixels
  • Provides six Ethernet outputs for connecting compatible LED receiving systems
  • Includes one 10G optical port for high-bandwidth fiber connectivity
  • Supports one video layer with resolution up to 4K x 2K
  • Compact 0.5U chassis can be configured for 1U installation with the included connecting piece
  • Includes HDMI loop-through for distributing the source signal to additional equipment
  • Dual Ethernet control ports support flexible system configuration and management

NovaStar KU20 Description

The NovaStar KU20 provides video processing and LED display control in a compact chassis for professional visual-production systems. Its total loading capacity of up to 3.9 million pixels supports LED canvases with a maximum width of 3840 pixels or a maximum height of 2560 pixels.

The controller features one HDMI 1.3 input with an HDMI loop-through output, allowing the incoming video signal to be passed to another device. A single video layer supports resolutions up to 4K x 2K, providing flexible content presentation for LED walls used in live events, houses of worship, corporate environments, broadcast facilities, and permanent installations.

Six Ethernet outputs connect the controller to compatible LED display receiving systems, while the 10G optical port supports high-bandwidth signal transmission over compatible fiber connections. An SPDIF output provides digital audio connectivity, and two Ethernet control ports allow the unit to be integrated into network-based control systems.

The KU20 measures only 0.5U high, making it suitable for installations where rack space is limited. An included connecting piece allows the controller to be mounted in a 1U configuration when required.

KU20 Features

  • LED display controller with integrated video processing
  • Loading capacity up to 3.9 million pixels
  • Maximum display width of 3840 pixels
  • Maximum display height of 2560 pixels
  • One video layer supporting up to 4K x 2K resolution
  • One HDMI 1.3 input
  • One HDMI loop-through output
  • Six Ethernet LED outputs
  • One 10G optical port
  • One SPDIF digital audio output
  • Two Ethernet control ports
  • One AUX RS232 control port
  • Compact 0.5U chassis
  • Supports 1U installation with the included connecting piece

KU20 Specifications

  • Product Type: LED Display Controller
  • Maximum Loading Capacity: 3.9 million pixels
  • Maximum Width: 3840 pixels
  • Maximum Height: 2560 pixels
  • Layers: 1 layer up to 4K x 2K
  • Video Input: 1 HDMI 1.3
  • Video Loop Output: 1 HDMI
  • LED Outputs: 6 Ethernet ports
  • Optical Connection: 1 10G optical port
  • Audio Output: 1 SPDIF port
  • Control Connections: 2 Ethernet ports and 1 AUX RS232 port
  • Chassis Height: 0.5U
  • Rack Configuration: 1U with included connecting piece
  • Dimensions: 10.01 x 1.99 x 11.41 in (254.3 x 50.6 x 290 mm)
  • Weight: 4.62 lb (2.1 kg)
  • UPC: 618528599335

What's In The Box

  • NovaStar KU20 LED Display Controller
  • 1U connecting piece

NovaStar BB4006 (NovaStar Novastar KU20)

Research with AI

Brand NovaStar
Name NovaStar KU20
Primary Category LED Display Controller
SKU 618528599335

Connectivity Protocols HDMI 1.3 input, HDMI loop-through output, six Ethernet outputs, 10G optical port, SPDIF digital audio output, two Ethernet control ports, AUX RS232 control port
LED Type Compatible with professional LED display systems
Power Consumption Not specified watts
Wattage Not specified watts

Dimensions 10.01 x 1.99 x 11.41 in inches
Height 0.5U U
Mounting Options 0.5U chassis, configurable to 1U with included connecting piece
Weight 4.62 lb kg

Preset Storage Supports one video layer up to 4K x 2K resolution

Warranty Length Not specified years

Why to Invest?

The NovaStar KU20 offers a high pixel loading capacity in a compact form factor, making it ideal for professional LED display systems where space is limited. Its multiple connectivity options including HDMI, Ethernet, and 10G optical port provide versatile integration and high-bandwidth signal transmission.

How it Works?

The KU20 processes and distributes video signals to LED display systems via HDMI input and multiple Ethernet outputs. It supports a single video layer up to 4K x 2K resolution and uses a 10G optical port for high-speed fiber connectivity, enabling flexible and high-quality LED display control.

What's Unique?

Its compact 0.5U chassis with the option to expand to 1U using an included connecting piece, combined with support for up to 3.9 million pixels and a 10G optical port for fiber connectivity, distinguishes the KU20 as a versatile and space-efficient LED display controller.

Key Features

Supports LED displays with up to 3.9 million pixels loading capacity. Six Ethernet outputs for LED receiving systems. One 10G optical port for high-bandwidth fiber connectivity. One video layer supporting up to 4K x 2K resolution. Compact 0.5U chassis configurable to 1U with included connecting piece. HDMI loop-through for source signal distribution. Dual Ethernet control ports for flexible system management.

Technical Specifications

Maximum loading capacity: 3.9 million pixels. Maximum display width: 3840 pixels. Maximum display height: 2560 pixels. Video input: 1 HDMI 1.3. Video loop output: 1 HDMI. LED outputs: 6 Ethernet ports. Optical connection: 1 10G optical port. Audio output: 1 SPDIF port. Control connections: 2 Ethernet ports and 1 AUX RS232 port. Chassis height: 0.5U. Rack configuration: 1U with included connecting piece. Dimensions: 10.01 x 1.99 x 11.41 in (254.3 x 50.6 x 290 mm). Weight: 4.62 lb (2.1 kg).

Included Accessories

NovaStar KU20 LED Display Controller and 1U connecting piece.
