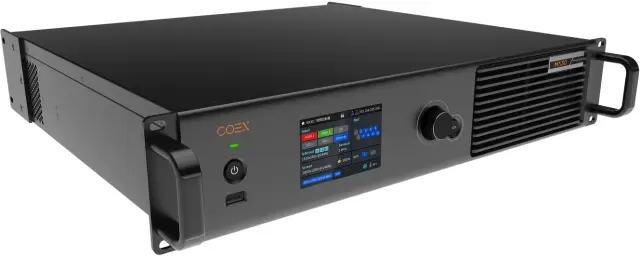

NovaStar MX30

All-in-One LED Controller with HDR, Scaling & 10 Ethernet Outputs

$2,475.99 Backordered
$0 Tax $53 Back or Join VIP for upfront discounts.

(more)

Advanced LED Video Wall Controller with Built-In Video Processing

The NovaStar MX30 is a powerful all-in-one LED controller that combines video processing and screen control in a single device, perfect for complex LED display applications. Designed for professionals who demand seamless integration, high-resolution support, and maximum flexibility, it offers support for HDR, 10 Ethernet outputs, and built-in scaling—making it ideal for both fixed installations and live events.

NovaStar MX30 Competitive Differences

  • Combines LED video processing and control in one unit
  • 10x Ethernet ports and 2x 10G optical ports for large-scale deployments
  • Built-in HDR support for enhanced color and contrast
  • Supports up to 6.5 million total pixels
  • Full compatibility with NovaStar VMP (Vision Management Platform) software
  • Advanced features like Genlock, low latency, and grayscale calibration
  • No rectangular restriction when mapping—unused panels don’t reduce capacity

NovaStar MX30 Description

The NovaStar MX30, part of the cutting-edge COEX series, redefines LED display control by integrating video processing and control into one streamlined unit. Engineered for use with NovaStar’s VMP software, it delivers enhanced control capabilities and user-friendly operation. With inputs including HDMI 2.0, HDMI 1.4, DP 1.1, and dual 3G-SDI, plus 10 Ethernet outputs and dual 10G optical outputs (main and backup), the MX30 is built for high-performance and large-scale LED installations. HDR support, Genlock, and ultra-low latency (1-frame delay in All-In-One mode) allow for visually stunning, real-time video playback. The MX30 also provides advanced color correction, image scaling, and full grayscale calibration—ideal for applications requiring precise color reproduction. However, specific functions like Frame Rate Adaptive and Full Grayscale Calibration require the A10s Pro receiving card, and HDR usage may reduce load capacity.

MX30 Features

  • All-in-one LED controller with integrated video processing
  • Supports Genlock for synchronized display
  • HDR compatible (reduces load capacity when enabled with A10s Pro)
  • Built-in scaling with 4 scaling modes: Custom, Pixel-to-Pixel, Snap to Canvas, Fill Screen
  • 14-Channel Color Correction
  • Full Grayscale Calibration (A10s Pro required)
  • Frame Rate Adaptive function (A10s Pro required)
  • VMP software compatibility for intuitive control
  • No rectangular mapping restriction
  • Low latency: 1 frame in All-in-One Controller working mode

MX30 Specifications

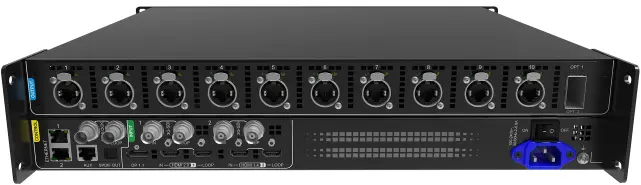

  • Video Inputs: 1x HDMI 2.0, 1x HDMI 1.4, 1x DP 1.1, 2x 3G-SDI
  • LED Outputs: 10x Ethernet ports
  • Optical Outputs: 2x 10G ports (1 primary, 1 backup)
  • Control Interface: 2x Ethernet control ports
  • Max Input Resolution: 4096 x 2160 @ 60Hz (HDMI 2.0)
  • Max Output Dimensions: 8192 x 7680 pixels (W x H or H x W)
  • Max Pixels Per Output: 650,000
  • Total Load Capacity: 6.5 million pixels
  • Number of Layers: 3
  • Compatible Driver ICs: MBI5264, MBI5253B, ICND2055, ICND2065, ICND2059, ICND2069

Nova Star MX-30 Video Processor (NovaStar MX 30 Processor)

Brand NovaStar
Name NovaStar MX30
Primary Category LED Controller

Connectivity Protocols HDMI 2.0, HDMI 1.4, DP 1.1, 3G-SDI, Ethernet, 10G Optical
IP Rating Not specified
Power Consumption Not specified watts

Warranty Length Not specified years

Combines LED video processing and control in one unit; 10 Ethernet ports and 2 10G optical ports for large-scale deployments; Built-in HDR support for enhanced color and contrast; Supports up to 6.5 million total pixels; Compatible with NovaStar VMP software; Advanced features include Genlock, low latency (1 frame delay), grayscale calibration, and no rectangular mapping restrictions.

Video Inputs: 1x HDMI 2.0, 1x HDMI 1.4, 1x DP 1.1, 2x 3G-SDI; LED Outputs: 10x Ethernet ports; Optical Outputs: 2x 10G ports (main and backup); Control Interface: 2x Ethernet control ports; Max Input Resolution: 4096 x 2160 @ 60Hz; Max Output Dimensions: 8192 x 7680 pixels; Max Pixels Per Output: 650,000; Total Load Capacity: 6.5 million pixels; Number of Layers: 3; Compatible Driver ICs: MBI5264, MBI5253B, ICND2055, ICND2065, ICND2059, ICND2069.

Designed for professional LED display control with support for HDR and advanced color correction. Requires A10s Pro receiving card for full grayscale calibration and frame rate adaptive functions. Compatible with NovaStar VMP software for intuitive control and configuration.

The NovaStar MX30 offers a powerful all-in-one solution for LED video wall control with integrated video processing, HDR support, and extensive connectivity options, making it ideal for large-scale and high-resolution LED display applications.

It integrates video processing and LED control in a single device, accepting multiple video inputs and outputting to LED panels via Ethernet and optical ports. It supports HDR and advanced color calibration, controlled via NovaStar's VMP software.

The MX30 uniquely combines video processing and LED control with 10 Ethernet outputs and dual 10G optical ports, supports HDR and Genlock, and offers no rectangular mapping restrictions, enabling flexible and high-capacity LED display configurations.
