LED Display Controller
The NovaStar VX2000 Pro combines LED display control and video processing in a single rackmount unit. Its 13-million-pixel loading capacity, multiple 4K inputs, 20 Gigabit Ethernet outputs, optical fiber connectivity, and flexible layer processing provide a complete control solution for large rental LED walls, stage systems, permanent installations, and fine-pitch displays.
NovaStar VX2000 Pro Competitive Differences
- Controls LED displays with up to 13 million pixels from a single device
- Supports output canvases up to 16,384 pixels wide or 8,192 pixels high
- Twenty Gigabit Ethernet outputs provide direct connectivity to compatible LED receiving cards
- Twelve 2K x 1K layer resources support multi-source layouts and flexible scaling
- DP 1.2, HDMI 2.0, and 12G-SDI inputs support resolutions up to 4096 x 2160 at 60Hz
- Four 10G optical fiber ports support input, output, loop, copy, and backup configurations
- Stores up to 256 user-defined presets for fast recall of layouts and processing settings
- Video controller, fiber converter, and ByPass modes support different production workflows
- Genlock synchronization and low-latency processing support demanding live video systems
NovaStar VX2000 Pro Description

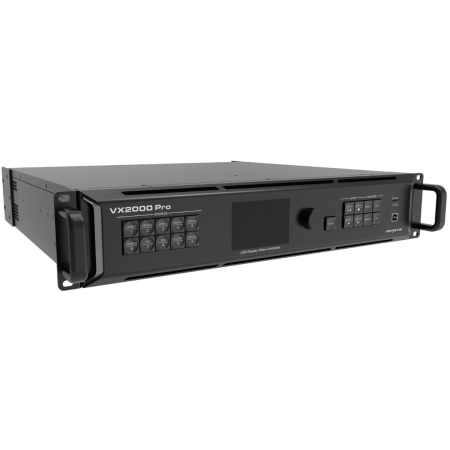

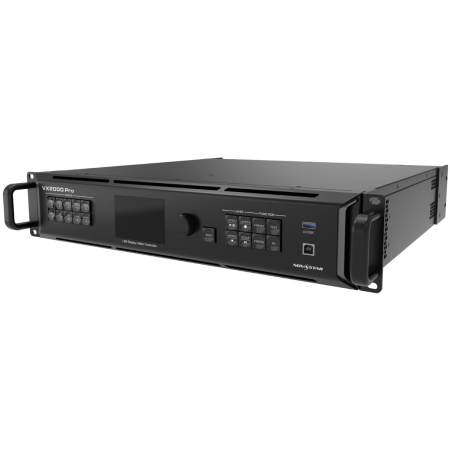

The NovaStar VX2000 Pro is an all-in-one video processor and LED display controller designed for large and complex video systems. Its industrial-grade enclosure, front-panel LCD, dedicated source buttons, layer controls, and rotary control provide direct access to frequently used setup and operating functions.

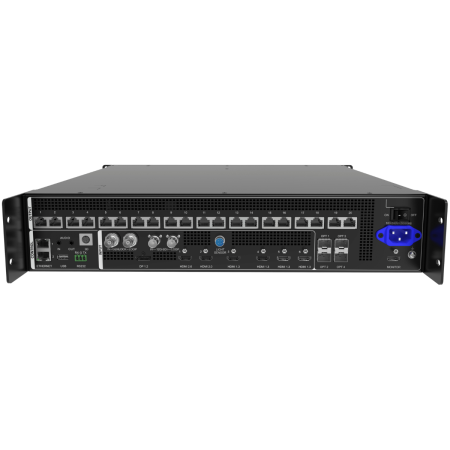

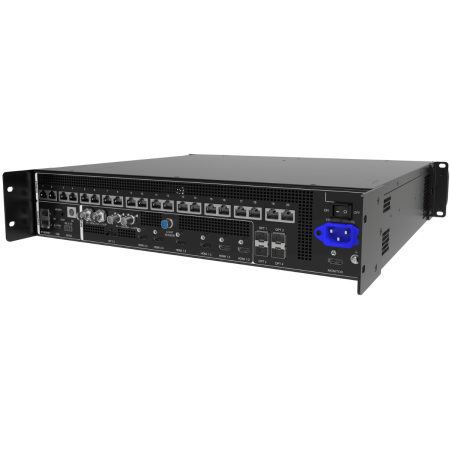

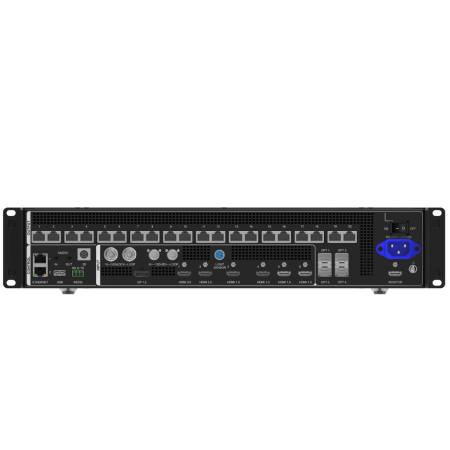

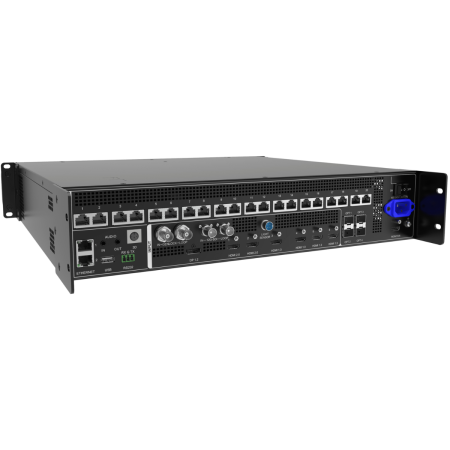

A wide selection of inputs accommodates media servers, switchers, cameras, presentation computers, and playback systems. Connections include one DisplayPort 1.2 input, two HDMI 2.0 inputs, four HDMI 1.3 inputs, and one 12G-SDI input with loop output. HDMI mosaicing allows two HDMI 2.0 inputs or four HDMI 1.3 inputs to be combined into a source with a maximum mosaic resolution of 4K x 2K.
Twenty Gigabit Ethernet outputs provide a combined loading capacity of 13 million pixels. Maximum output dimensions of 16,384 pixels wide and 8,192 pixels high accommodate ultra-wide banners, tall LED columns, stage backdrops, touring video walls, and other nonstandard screen configurations. Four 10G optical ports provide additional flexibility for long-distance signal transmission and system backup.
Twelve 2K x 1K layer resources, SuperView III scaling, input cropping, HDR output, pixel-level calibration, Genlock, 256 presets, USB media playback, and multiple control options provide the tools required by rental companies, LED technicians, installers, houses of worship, theaters, event venues, and broadcast production environments.
VX2000 Pro Features
- All-in-one LED display controller and video processor
- 13-million-pixel total loading capacity
- Maximum output width of 16,384 pixels
- Maximum output height of 8,192 pixels
- Twenty Gigabit Ethernet LED outputs
- Maximum capacity of 650,000 pixels per Ethernet port at 8-bit color depth
- Twelve 2K x 1K layer resources
- Supports 2K x 1K, 4K x 1K, and 4K x 2K layer configurations
- Adjustable layer size, position, priority, and aspect ratio
- One DisplayPort 1.2 input
- Two HDMI 2.0 inputs
- Four HDMI 1.3 inputs
- One 12G-SDI input with loop output
- Four 10G optical fiber ports
- Self-adaptive OPT 1 and OPT 2 ports support video input or LED output operation
- OPT 3 and OPT 4 support output copying and backup configurations
- HDMI input mosaicing with a maximum 4K x 2K mosaic resolution
- HDMI monitoring output with smooth and high-definition display modes
- USB 3.0 media playback for compatible image and video files
- Up to 256 user-defined presets
- Preset layout preview and transition effects
- SuperView III stepless output scaling
- Full-screen, pixel-to-pixel, and custom scaling modes
- Free input cropping and one-button full-screen scaling
- HDR10 and HLG output support with compatible receiving cards
- Text, image, weather, and time OSD functions
- Pixel-level brightness and chroma calibration
- Brightness, saturation, contrast, and hue adjustment
- Video controller, fiber converter, and ByPass working modes
- Zero-frame device delay available in ByPass low-latency mode
- Genlock input and loop connections for output synchronization
- Independent 3.5mm audio input and output
- Dedicated connector for a compatible third-party 3D emitter
- Device, input source, Ethernet port, and optical connection backup options
- Front-panel, NovaLCT, Unico, and VICP app control options
- Light sensor connection for automatic display brightness adjustment
- Industrial-grade rackmount enclosure
VX2000 Pro Specifications
- Product Type: All-in-one LED display controller and video processor
- Loading Capacity: 13 million pixels
- Maximum Output Width: 16,384 pixels
- Maximum Output Height: 8,192 pixels
- Ethernet Outputs: 20 Gigabit Ethernet ports
- Maximum Capacity Per Ethernet Port: 650,000 pixels at 8-bit color depth
- Layer Resources: 12 x 2K x 1K
- Layer Configurations: Up to 12 x 2K x 1K, 6 x 4K x 1K, or 3 x 4K x 2K
- Presets: 256 user-defined presets
- Maximum Video Input Resolution: 4096 x 2160 at 60Hz
- Video Inputs: 1 x DisplayPort 1.2, 2 x HDMI 2.0, 4 x HDMI 1.3, and 1 x 12G-SDI
- SDI Loop Output: 1 x 12G-SDI loop
- Monitoring Output: 1 x HDMI 1.3
- Optical Connections: 4 x 10G optical fiber ports
- 3D Connection: 1 x dedicated 3D connector
- Media Connection: 1 x USB 3.0
- Control Connections: 2 x Ethernet, 1 x USB 2.0, and 1 x RS232
- Synchronization: Genlock input and loop
- Light Sensor Connection: 1
- Audio Connections: 1 x 3.5mm input and 1 x 3.5mm output
- Audio Sampling Rate: Up to 48kHz
- Operating Modes: Video controller, fiber converter, and ByPass
- Power Requirements: 100–240V AC, 50/60Hz
- Rated Power Consumption: 83W
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Operating Humidity: 5% to 85% RH, non-condensing
- Storage Temperature: 14°F to 140°F (-10°C to 60°C)
- Storage Humidity: 5% to 95% RH, non-condensing
- Typical Noise Level: 45dB(A) at 77°F (25°C)
- Dimensions: 19.0 x 19.41 x 3.72 in (482.6 x 493.0 x 94.6 mm)
- Net Weight: 16.3 lb (7.4 kg)
- Packing Box Dimensions: 25.39 x 22.83 x 8.46 in (645 x 580 x 215 mm)
- Packed Weight: 24.7 lb (11.2 kg)
- UPC: 618528599496
What's In The Box
- NovaStar VX2000 Pro all-in-one controller
- Power cord
- Ethernet cable
- HDMI cable
- USB cable
- Phoenix connector
- Four silicone dustproof plugs
- Quick start guide
- Certificate of approval
- Safety manual
NovaStar BB4013
(NovaStar VX2000 Pro)
