Obsidian NX1-16 | Compact ONYX Lighting Console wi...
$4,490.00

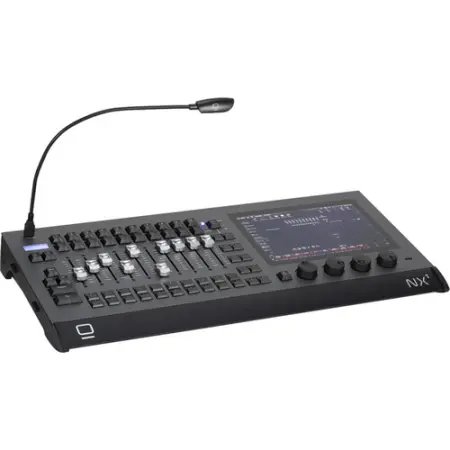

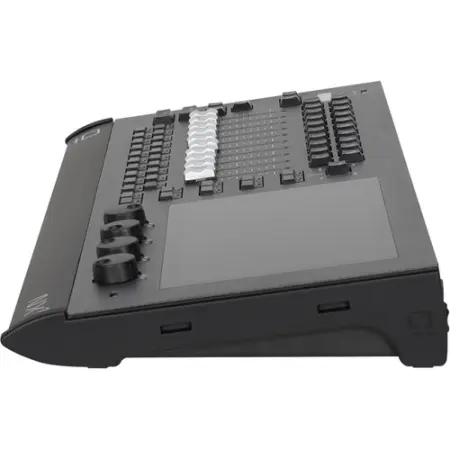

The Obsidian NX1-16 is a powerful yet ultra-compact lighting console designed for the ONYX operating system. It delivers a complete, unrestricted ONYX experience, making it ideal for touring, broadcast, houses of worship, and live event professionals who need a fully featured control system in a portable footprint.

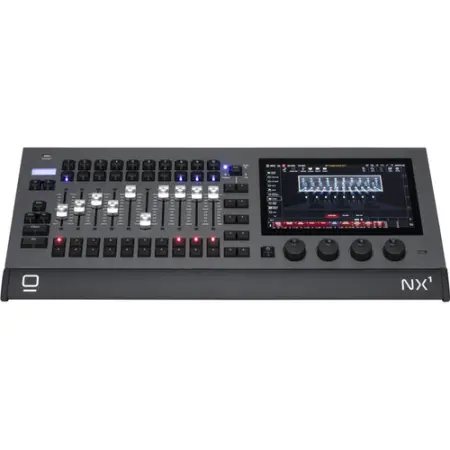

The NX1-16 is built for professionals needing a compact lighting controller that doesn’t sacrifice power or functionality. Equipped with a high-brightness 10.1” multi-touch screen, it provides direct access to programming and playback controls. Users benefit from 10 fully motorized faders, a hybrid array of playback and function keys, and 4 digital encoders for precise fixture control. A dedicated Master Go section ensures smooth cue execution in live scenarios.

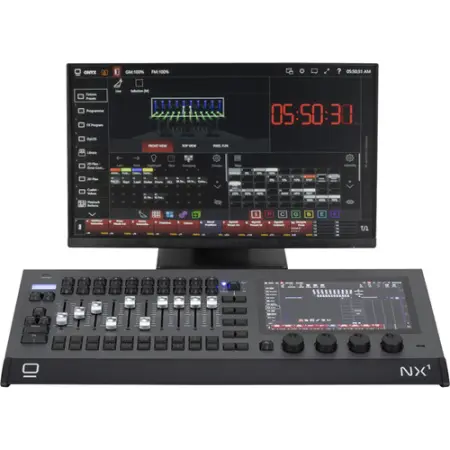

Engineered with industrial-grade hardware, the NX1-16 features an Intel processor, 500GB NVMe SSD, and 16GB DDR5 RAM, delivering fast boot times and reliable performance even in demanding applications. With support for up to 16 Universes natively, connectivity includes 4 DMX ports, dual Gigabit Ethernet, and external touchscreen support. Expansion options with the NXK keypad and NXP playback wing offer a scalable solution for larger productions.
Designed for touring and professional environments, the NX1-16 balances portability with advanced control power, making it a future-ready choice for lighting designers and operators.
| Brand | Obsidian |
| Name | Obsidian NX1-16 |
| Primary Category | Lighting Console |
| Connectivity Protocols | DMX, Art-Net, sACN |
| Power Consumption | 104W W |
| Voltage Range | 100-240V, 50/60Hz V |
| Dimensions | 25 in. W x 11.75 in. D x 2.8 in. H mm |
| Included Accessories | LED USB desk lamp, Dust cover, USB 3.0 recovery drive, IP65 locking power cable |
| Weight | 17.8 lbs. kg |
| DMX Universes Supported | 16 |
| Physical Controls | 10 motorized playback faders, 10 customizable playback keys, 4 digital encoders, Master Go section |
| Screen / Display | 10.1 inch full HD multi-touch (1920x1200px) inch |
