OnStage KS7292

Double-Tier Keyboard Stand

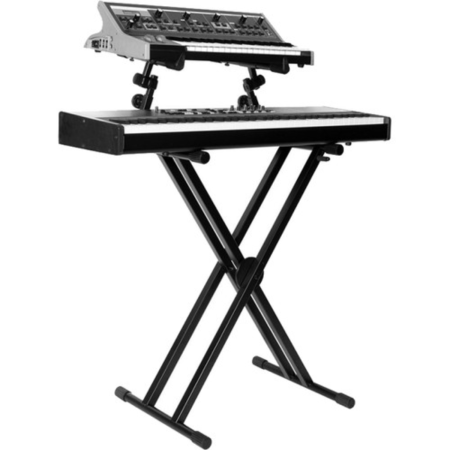

The On-Stage KS7292 is a heavy-duty Double-X keyboard stand designed to support two keyboards while maintaining a compact, stable footprint. Its ERGO-LOK adjustment system, high weight capacity, adjustable second tier, and folding construction make it well suited for stage, studio, rehearsal, and touring setups.

On-Stage KS7292 Competitive Differences

• Supports two keyboards in a compact Double-X stand configuration
• 320 lb weight capacity provides support for heavy large-format keyboards
• ERGO-LOK clutch release is positioned high on the stand for convenient height and length adjustments
• Second tier adjusts in height, length, width, and tilt for ergonomic keyboard positioning
• Posi-Lok second-tier adjustment clutches use interlocking teeth for secure positioning
• Adjustable nonslip arm sleeves accommodate a variety of keyboard widths
• Wide base provides stable support during performance
• Folds flat for convenient storage and transportation

On-Stage KS7292 Description

The On-Stage KS7292 is designed for musicians who need a stable and adjustable stand for a two-keyboard setup. Its Double-X frame provides a broad support structure while maintaining a relatively compact footprint, making it useful for live performances, rehearsals, studios, and mobile rigs.

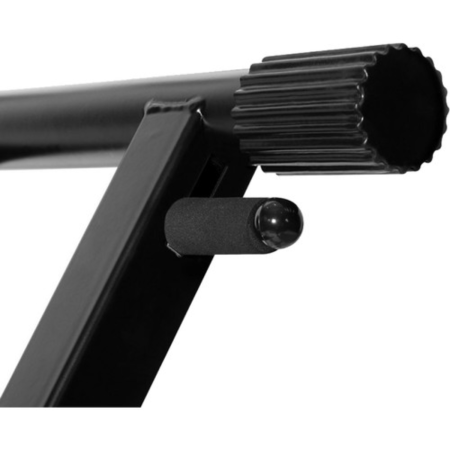

The main tier adjusts from 27 to 38" in height and features the ERGO-LOK clutch system. The clutch release is positioned high on the stand, allowing efficient adjustments without requiring the player to reach toward the floor. Adjustable nonslip arm sleeves help accommodate different keyboard widths while reducing unwanted movement.

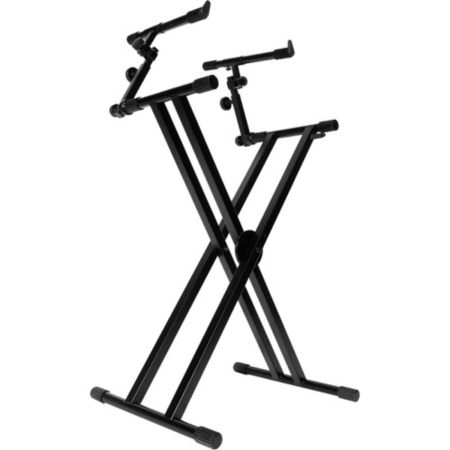

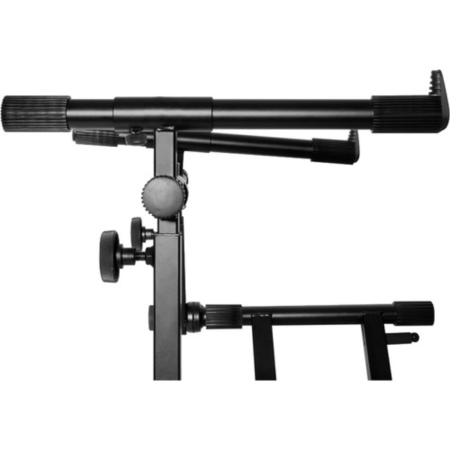

The included second tier provides extensive positioning flexibility. Its arms adjust in height, length, width, and tilt so the upper keyboard can be placed at a comfortable playing angle. Posi-Lok adjustment clutches use interlocking teeth to help maintain a secure position during use.

With a weight capacity of up to 320 lb, the KS7292 is built to support demanding keyboard setups. When the session or performance is finished, the stand folds flat to simplify storage and transportation.

KS7292 Features

• Double-X keyboard stand with second tier
• Designed to support two keyboards
• ERGO-LOK height and length adjustment system
• High-positioned clutch release for convenient adjustments
• Second tier adjusts in height, length, width, and tilt
• Posi-Lok second-tier adjustment clutches with interlocking teeth
• Adjustable nonslip arm sleeves
• Wide, stable base
• Supports heavy large-format keyboards
• Folds flat for storage and transportation
• Black finish

KS7292 Specifications

• Stand Type: Double-X Keyboard Stand with Second Tier
• First-Tier Height Adjustment: 27 to 38" (68.6 to 96.5 cm)
• Second-Tier Height Adjustment: 7 to 10" (17.8 to 25.4 cm) when vertical
• Second Tier: Can be splayed inward for lower positioning
• Base Spread: 12 to 32" (30.5 to 81.3 cm)
• Lower Arm Depth: 14.25" (36.2 cm)
• Upper Arm Depth: 15.5" (39.4 cm)
• Weight Capacity: 320 lb (145.1 kg)
• Color: Black
