On-Stage RXLRWS1

Rechargeable XLR Wireless System

The On-Stage RXLRWS1 is a rechargeable XLR wireless system designed to connect dynamic microphones and other XLR audio sources to mixers, audio interfaces, PA systems, and compatible cameras without traditional audio cables. Operating on the 2.4 GHz wireless band, it delivers audio transmission up to 150 feet while providing greater freedom of movement for live performances, recording, and video production.

On-Stage RXLRWS1 Competitive Differences

• 150-Foot Wireless Range: Transmits audio up to 150 feet (45.7 meters), allowing performers and audio technicians to move without being restricted by cables.
• 7 Selectable Channels: Provides multiple frequency channels to help avoid interference and switch a transmitter connection between compatible receivers.
• 2.4 GHz Wireless Transmission: Supports reliable digital audio transmission in busy performance and recording environments.
• Rechargeable Battery System: Built-in lithium-ion batteries provide up to 5.5 hours of operation on a full charge.
• Simultaneous USB-C Charging: Includes a dual-output USB-C charging cable that charges the transmitter and receiver together in approximately 2 hours.
• Versatile XLR Connectivity: Supports dynamic microphones, digital and analog music players, and other compatible devices with XLR outputs.

On-Stage RXLRWS1 Description

The On-Stage RXLRWS1 eliminates the need for a traditional XLR cable between a dynamic microphone and compatible audio equipment. Its wireless transmitter and receiver provide up to 150 feet of operating range, making it useful for vocalists, presenters, sound engineers, and content creators who need flexible microphone placement. The compact, lightweight design supports convenient operation on stage, in studios, and during location recording.

Operating in the 2.4 GHz frequency band, the system offers seven selectable channels to help manage interference in crowded wireless environments. Channel selection also allows users to switch a transmitter between receivers configured on different channels. With a dynamic range greater than 106 dB, a signal-to-noise ratio greater than 85 dB, and a frequency response of 20 Hz to 20 kHz, the system is designed to preserve audio clarity across a variety of applications.

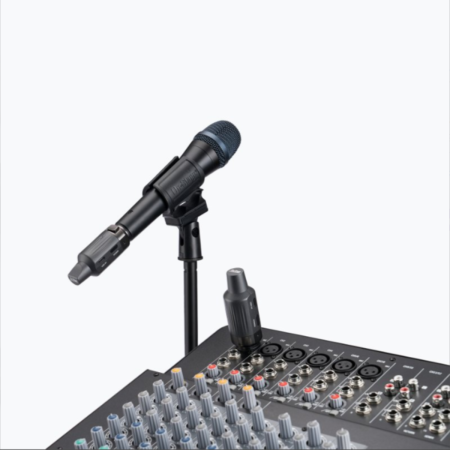

The RXLRWS1 is suitable for more than handheld microphone applications. It can also transmit audio from compatible digital and analog music players and other devices equipped with XLR outputs. During live soundchecks, performers can move into the audience area to evaluate their sound, while video production teams can reposition cameras without relying on a long microphone cable.

Both the transmitter and receiver feature built-in 3.7V 950 mAh rechargeable lithium-ion batteries that deliver up to 5.5 hours of operation. The included dual-output USB-C charging cable allows both units to recharge simultaneously, with a full charge taking approximately 2 hours from a depleted battery. This convenient charging setup makes the system practical for rehearsals, performances, presentations, and mobile audio production.

RXLRWS1 Features

• Rechargeable wireless XLR transmitter and receiver system
• Connects dynamic microphones to compatible mixers, audio interfaces, soundboards, PA systems, and DSLR cameras
• Operates on the 2.4 GHz digital wireless band
• Provides wireless audio transmission up to 150 feet
• Offers 7 selectable frequency channels for managing wireless interference
• Allows switching between compatible receivers using channel selection
• Supports digital and analog audio devices with compatible XLR outputs
• Eliminates long XLR cable runs that can cause tangling or accidental disconnection
• Built-in rechargeable lithium-ion batteries provide up to 5.5 hours of operation
• Dual-output USB-C charging cable charges both units simultaneously
• Approximately 2-hour charging time from fully depleted batteries
• Compact and lightweight design for live sound, studio recording, and video production

RXLRWS1 Specifications

• System Type: Rechargeable XLR Wireless Transmitter and Receiver
• Wireless Technology: Digital 2.4 GHz
• Transmission Distance: Up to 150 ft (45.7 m)
• Frequency Channels: 7 selectable channels
• Frequency Response: 20 Hz - 20 kHz
• Dynamic Range: Greater than 106 dB
• Signal-to-Noise Ratio: Greater than 85 dB
• Battery Type: Rechargeable lithium-ion
• Battery Rating: 3.7V, 950 mAh
• Operating Time: Up to 5.5 hours
• Charging Time: Approximately 2 hours from fully depleted batteries
• Charging Connection: USB-C

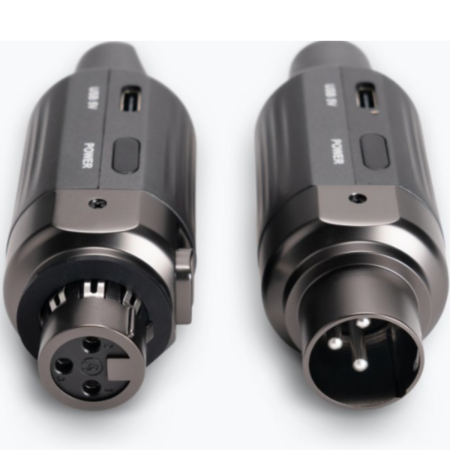

• Transmitter Connection: 3-pin female XLR
• Receiver Connection: 3-pin male XLR
• Weight: 0.26 lb (0.12 kg)
• UPC: 801128010670

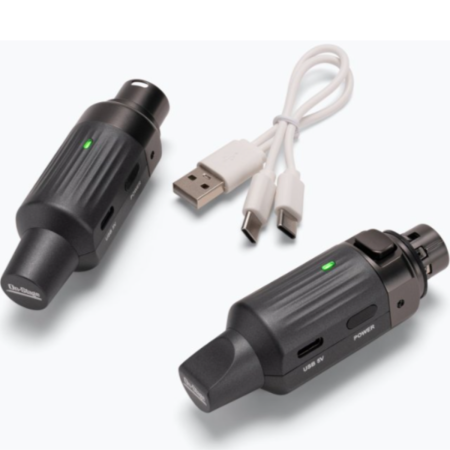

What's In The Box

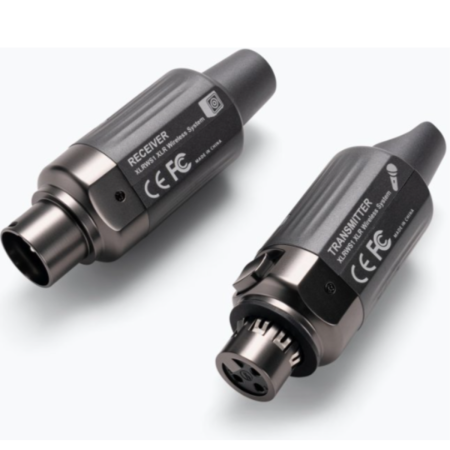

• On-Stage RXLRWS1 XLR Wireless Transmitter
• On-Stage RXLRWS1 XLR Wireless Receiver

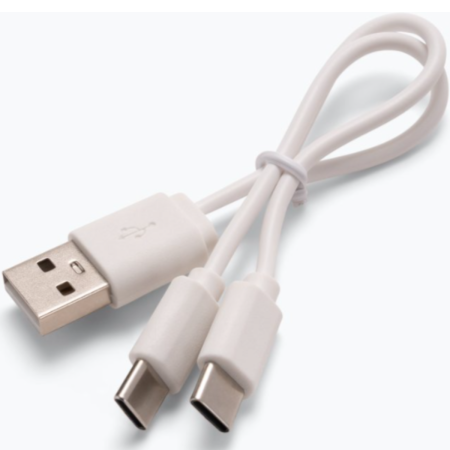

• Dual-Output USB-C Charging Cable
• 1/8-inch to 1/4-inch Adapter
• Owner's Manual

OnStage RXLRWS1 (OnStage Rechargeable XLR Wireless System)
