On-Stage WS8550

Adjustable Equipment Stand

The On-Stage WS8550 is a heavy-duty equipment stand designed to support large-format keyboards, mixers, rack units, speakers, amplifiers, DJ coffins, and other production gear. Its adjustable spider-frame design provides flexible height, width, and depth settings while supporting loads up to 250 lb.

On-Stage WS8550 Competitive Differences

• Supports equipment weighing up to 250 lb
• Adjustable height, width, and depth accommodate a wide range of equipment sizes
• Unique spider-frame design provides versatile positioning for studio and live applications
• Eight preset height positions range from 24 to 37.5"
• Robust welded and bolted steel construction uses 30 mm square tubing
• Eight adjustable rubber rest pads help protect equipment and reduce unwanted movement
• Non-slip rubber foot caps help prevent shifting and protect flooring
• Folds into a compact T-shape for easier storage and transportation

On-Stage WS8550 Description

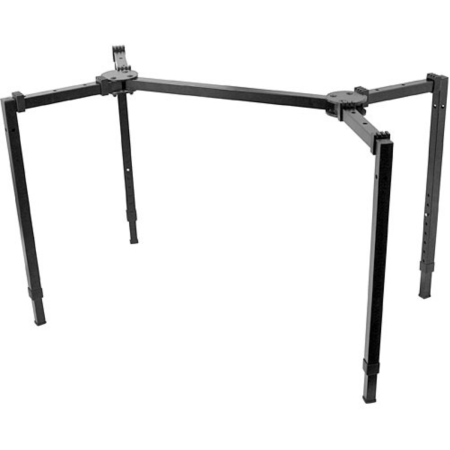

The On-Stage WS8550 provides a strong and adaptable support platform for musicians, DJs, studios, and live production setups. Its open spider-frame design can accommodate a broad range of gear, including large keyboards, mixers, rack equipment, amplifiers, monitors, speakers, and DJ coffins.

The stand adjusts from 24 to 37.5" in height with eight preset positions. Its width adjusts from 29 to 47", while the depth ranges from 15 to 27", allowing the support surface to be configured around equipment of different dimensions.

Welded and bolted steel construction with 30 mm square tubing provides a solid foundation for loads up to 250 lb. Eight adjustable rubber rest pads help cushion supported equipment and keep it securely positioned, while non-slip rubber caps on the feet reduce movement and help protect floors.

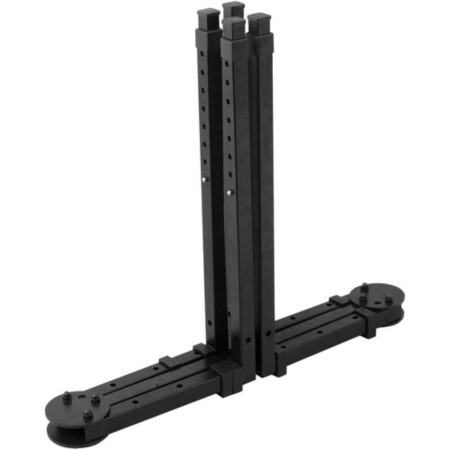

For mobile setups and storage, the WS8550 folds down into a compact T-shaped configuration. This combination of strength, adjustment range, and portability makes it well suited for studios, stages, rehearsal spaces, DJ rigs, and other equipment-support applications.

WS8550 Features

• Heavy-duty adjustable equipment stand
• Suitable for keyboards, mixers, rack units, speakers, amplifiers, monitors, and DJ coffins
• Adjustable height, width, and depth
• Spider-frame design
• Eight preset height adjustments
• Up to 250 lb load capacity
• Welded and bolted steel construction
• 30 mm square steel tubing
• Eight adjustable rubber equipment rest pads
• Non-slip rubber foot caps
• Folds into a compact T-shape for storage and transport
• Black powder-coated finish

WS8550 Specifications

• Stand Type: Adjustable Equipment Stand
• Construction: Welded and Bolted Steel
• Tubing Size: 30 mm Square
• Finish: Black Powder Coat
• Height: 24 to 37.5" (610 to 953 mm)
• Height Positions: 8 Preset Adjustments
• Width: 29 to 47" (737 to 1194 mm)
• Depth: 15 to 27" (381 to 686 mm)
• Load Capacity: Up to 250 lb (113 kg)
• Package Weight: 17.3 lb (7.8 kg)
• Box Dimensions: 29.7 x 25.7 x 5" (75.4 x 65.3 x 12.7 cm)

OnStage WS8550 (OnStage Multi-Function Stand)
