OnStage SB9600

Studio Boom Microphone Stand

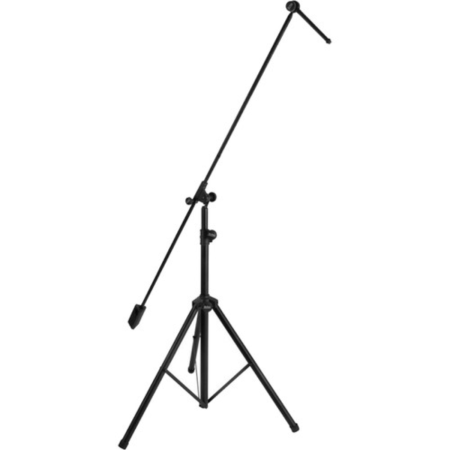

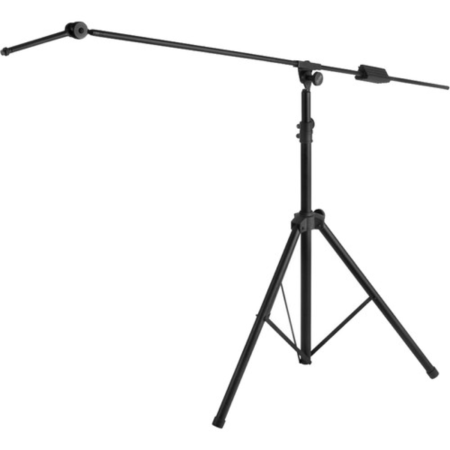

The On-Stage SB9600 is a heavy-duty studio boom microphone stand designed for overhead recording and other applications requiring extended microphone reach. Its adjustable height, long modular boom, sliding counterweight, and wide tripod base provide flexible positioning with a stable footprint for studio use.

On-Stage SB9600 Competitive Differences

• 44 to 80" adjustable height supports a wide range of studio microphone positions
• Two straight boom shafts provide a combined 82" of reach
• 7" mini boom extension increases total boom reach up to 89"
• 7 lb sliding counterweight helps balance microphones at extended positions
• 40-tooth boom clutch with 2" mating disks provides secure angle adjustment
• Large ergonomic locking knobs help maintain stable boom positioning
• 120° tripod base with a 32 to 48" spread provides a low center of gravity
• Foldable steel construction simplifies transport and storage

On-Stage SB9600 Description

The On-Stage SB9600 provides the height and horizontal reach needed for overhead microphones, large instruments, drum kits, room microphones, and other demanding studio setups. The stand adjusts from 44 to 80" high and uses screw-knob adjustments for secure positioning.

Its boom consists of two straight shafts with a combined length of 82", along with a 7" mini boom extension for additional positioning flexibility. Solid threaded boom ends with washers allow the boom sections to be connected or disassembled as needed, making it possible to configure the stand according to available studio space and microphone placement requirements.

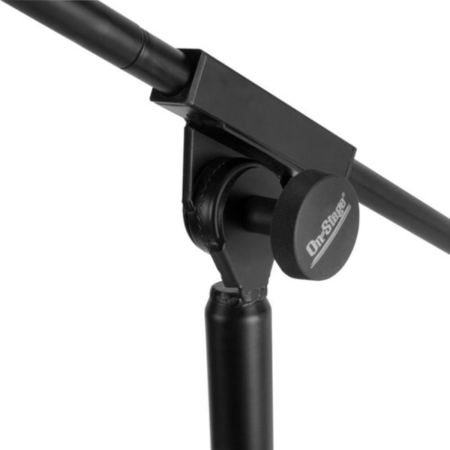

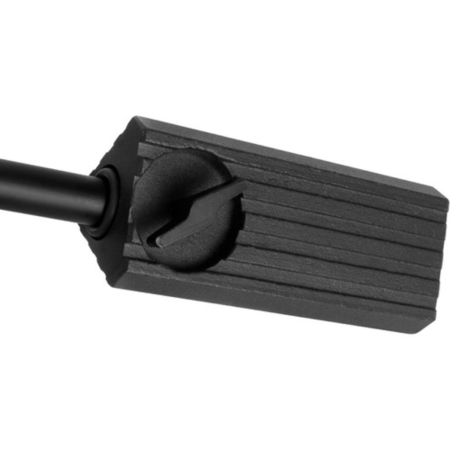

The boom clutch uses 2" mating disks with 40 locking teeth to help maintain the selected angle. A sliding 7 lb counterweight can be positioned and locked along the boom to balance the microphone and improve stability when working at extended reach.

Built from steel tubing, the SB9600 uses a 120° folding tripod base with a spread of up to 48". The wide stance and low center of gravity provide stable microphone support, while the folding design makes the stand easier to store and transport between sessions.

SB9600 Features

• Studio boom microphone stand for overhead and professional recording applications
• 44 to 80" adjustable stand height
• Two straight boom shafts with 82" combined length
• 7" mini boom extension
• Up to 89" total boom length with extension
• 40-tooth boom clutch with 2" mating disks
• Large ergonomic locking knobs
• Sliding 7 lb counterweight
• Solid threaded boom connections with washers
• 120° tripod base
• 32 to 48" adjustable base spread
• Foldable design for storage and transport
• Steel tubing construction
• 5/8"-27 male microphone mounting thread
• Black finish

SB9600 Specifications

• Item Type: Studio Boom Stand
• Microphone Mount: No Mount Included
• Mic Mount Thread Size: 5/8"-27 Male
• Boom Arm Type: Fixed Length
• Boom Length: 82 to 89" (208.3 to 226.1 cm)
• Boom Adjustment Type: Screw-Knob
• Counterweight: 7 lb (3.2 kg)
• Mini Boom Extension: 7" (17.8 cm)
• Maximum Height: 80" (203.2 cm)
• Minimum Height: 44" (111.8 cm)
• Base Type: Tripod
• Maximum Base Dimensions: 48 x 48" (121.9 x 121.9 cm)
• Base Spread: 32 to 48" (81.3 to 121.9 cm)
• Construction Material: Steel
• Weight: 20.7 lb (9.4 kg)
• Color: Black
• Package Weight: 19 lb (8.6 kg)
• Box Dimensions: 46.5 x 6.5 x 5" (118.1 x 16.5 x 12.7 cm)
