Full-Color Static Beam Sky Laser
The

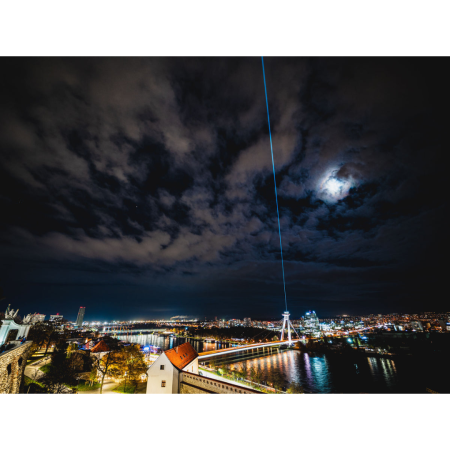

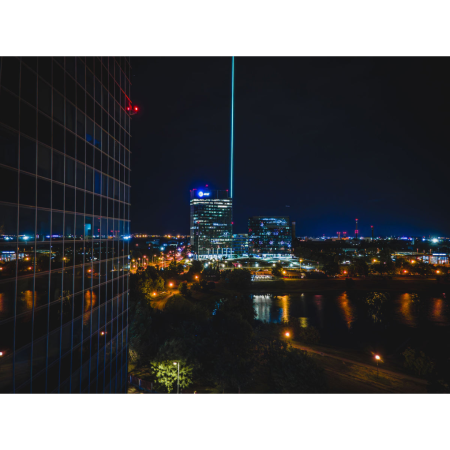

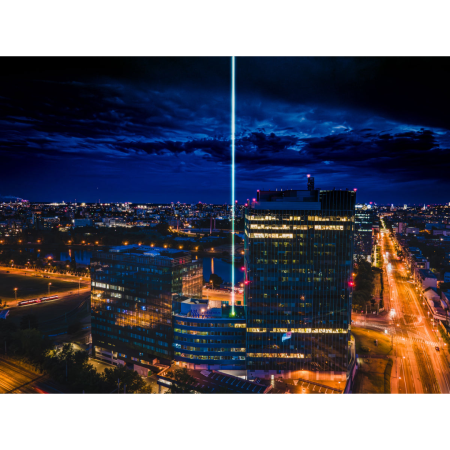

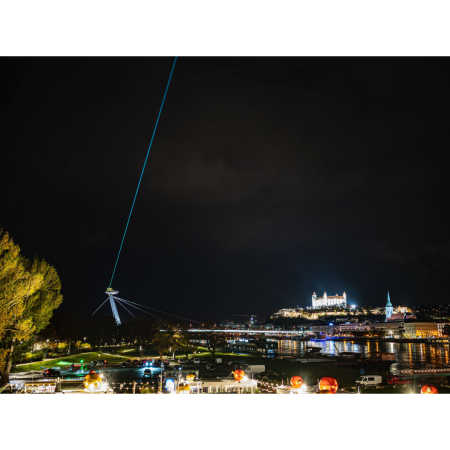

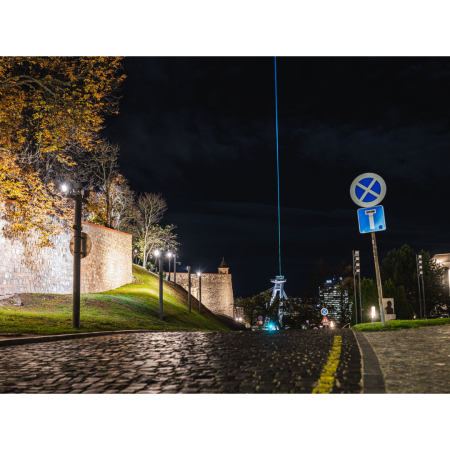

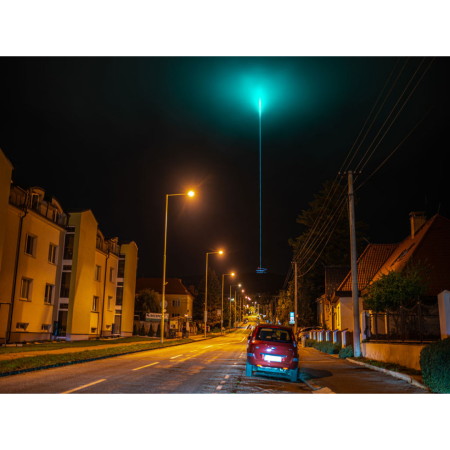

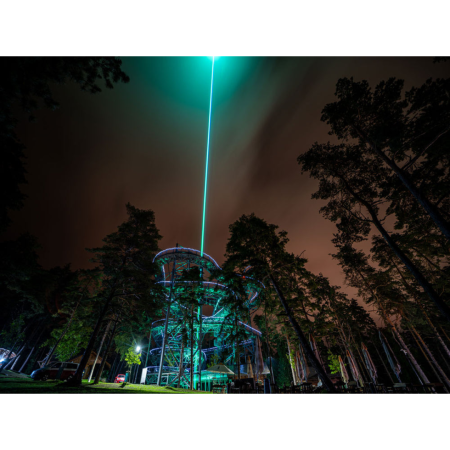

Pangolin Architect W500B is a high-intensity, full-color RGB sky laser built for landmark illumination, skyline branding, and long-distance architectural lighting. With a powerful 486-watt output and rugged IP65-rated build, it delivers vibrant, wide-beam projection that draws attention from miles away—enhancing both natural and man-made structures with unmatched visual impact.
Pangolin Architect W500B Competitive Differences
- 486W RGB optical output with wide 400 x 400 mm beam
- IP65-rated laser and chiller system for reliable outdoor use
Pangolin Architect W500B Description
The
Architect W500B is engineered for professionals needing bold, static laser beams for outdoor venues, city landmarks, or immersive installations. Its high-powered diode modules—152W red, 188W green, and 146W blue—generate true full-color beams with a luminous flux of 130,200 lumens. The 3.4 mrad divergence ensures tight projection, while the enormous beam size enhances visibility over great distances.

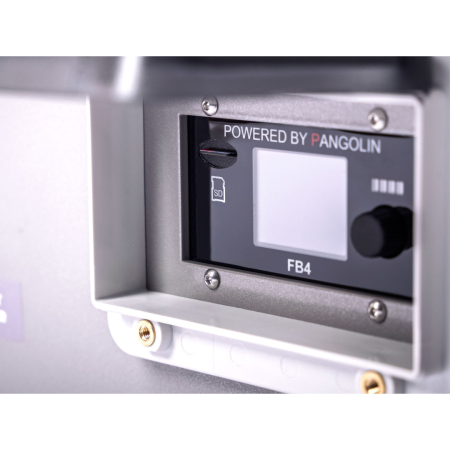

Control is seamless via Pangolin’s FB4 system, supporting ArtNet and DMX protocols. A manual remote box is included for local dimming and adjustments, and the optional DMX-controlled platform allows 350° pan and 126° tilt for beam repositioning across large skies and structures.
Rated IP65, both the laser head and chiller are protected from harsh weather. Advanced safety systems ensure the unit is compliant with EN 60825-1 standards, while redundant hardware like the keyed emergency stop, emission delay, and interlock deliver peace of mind during continuous operation.
Model Features
- 486W RGB static beam laser for architectural and skyline lighting
- Full FB4 control via ArtNet, DMX, and manual remote box
- IP65-rated housing and chiller for all-weather installations
- Optional pan & tilt platform for programmable beam movement

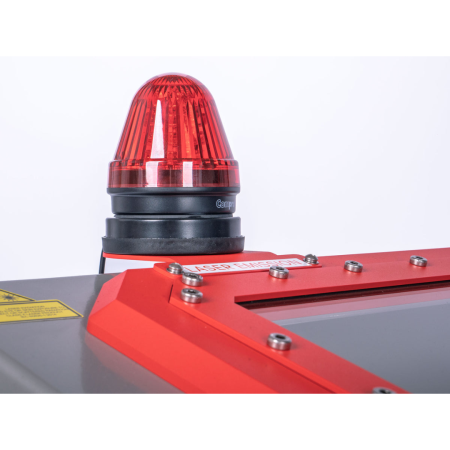

- Emission beacon, keyed E-STOP, and laser safety features included
Model Specifications
- Optical Output: 486W
- Red / Green / Blue Power (W): 152 | 188 | 146
- Wavelengths (nm): 637 | 525 | 465
- Beam Size: 400 x 400 mm
- Beam Divergence: 3.4 mrad (full angle, average)
- Luminous Flux: 130,200 lumens
- Control: FB4 (ArtNet, DMX), Manual Remote
- Dimming: 100–0%
- Power Requirements:

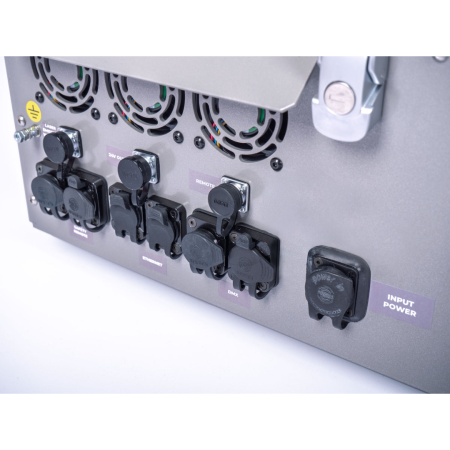

- Laser: 100–240V, 50–60Hz (Neutrik powerCON TRUE1)
- Chiller: 200–230V, 50–60Hz
- Max Power Consumption:
- Laser: <2,000W
- Chiller: <1,600W
- Cooling: Water + 15% glycol, 6–10 L/min @ 20°C

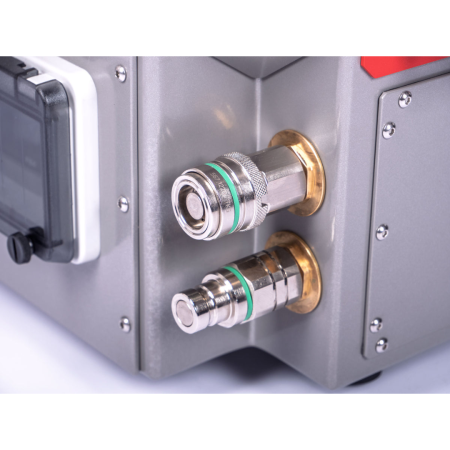

- Hose Fittings: CEJN Series 567
- Operating Temperature: 5°C to 40°C (full output at 5–35°C)
- IP Rating: IP65
- Laser Dimensions: 25.2 x 22.6 x 26.8 in (640 x 574 x 682 mm)
- Chiller Dimensions: 27 x 15.7 x 19 in (686 x 399 x 483 mm)
- Weight: 176 lb (80 kg projector) | 101 lb (46 kg chiller)
- Compliance: EN 60825-1
What's In The Box

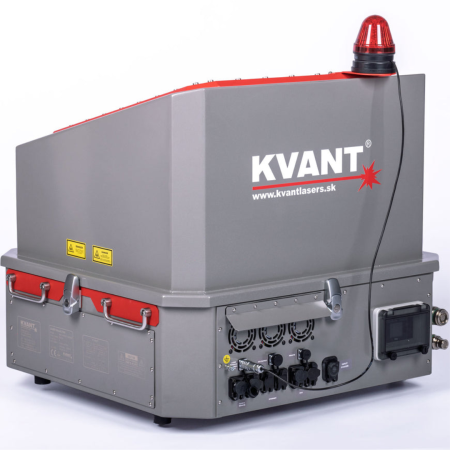

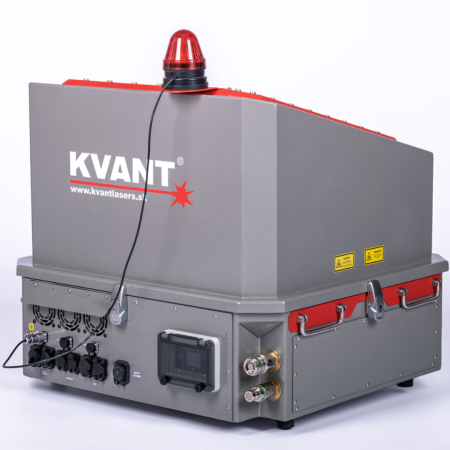

- Architect W500B sky laser projector
- External chiller with 10M water hoses
- AC power cable (10M)
- Control signal cable (10M)
- 0–5V RGB controller
- E-STOP remote with 10M 3-pin XLR cable
- Set of 2 safety keys
- USB stick with user manual
- Heavy-duty flight cases (x2)
- Quality control certificate
Pangolin Architect W500B
(Pangolin Architect-500W)
