Pangolin Clubmax 3000 FB4 | 3W RGB - 0.5mrad Beam ...
$6,018.00

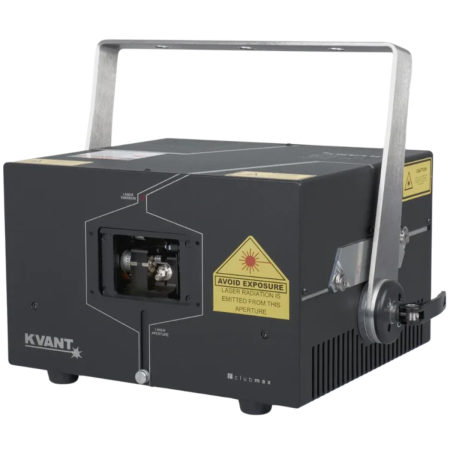

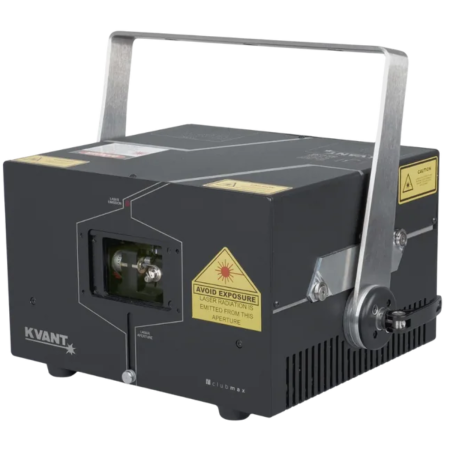

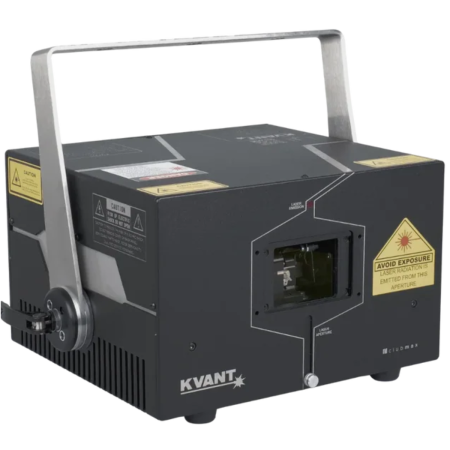

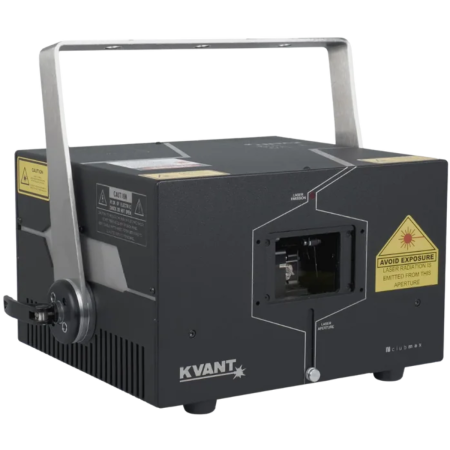

The Pangolin Clubmax 3000 FB4 is a professional 3W full-color RGB laser projector built for indoor atmospheric effects, graphics, text, and animation displays. Integrated FB4-SK control, low-divergence optics, fast ScannerMAX scanning, and comprehensive safety systems make it suited for clubs, touring productions, event companies, and permanent entertainment installations.

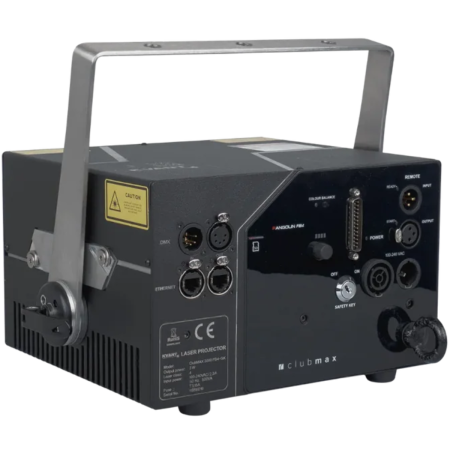

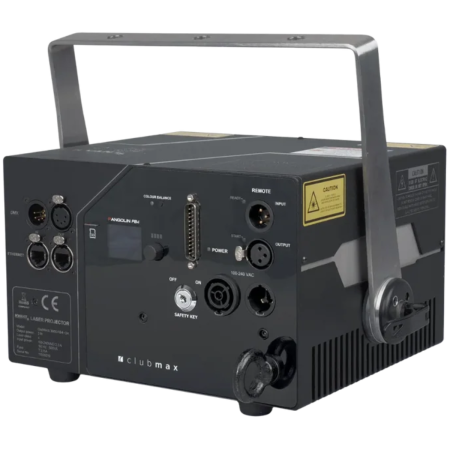

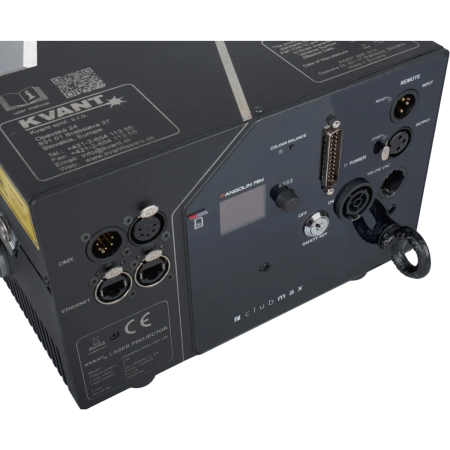

The Pangolin Clubmax 3000 FB4 combines professional RGB laser output with integrated FB4-SK control for flexible programming and show operation. It can be controlled using Ethernet, ArtNet, DMX, ILDA, a computer, compatible lighting console, or autoplay workflows, giving lighting designers multiple ways to integrate the projector into existing show-control systems.
The optical system uses separate 637nm red, 525nm green, and 445nm blue semiconductor laser modules with installed module ratings of 0.7W, 1.25W, and 1.5W respectively. Advanced Optical Correction technology supports balanced color performance, while a 4.5 x 4.5 mm beam and 0.5 mrad average full-angle divergence help maintain clean, concentrated projections.
ScannerMAX 506 Compact scanners provide 40 kpps performance at an 8° scan angle and support a maximum scanning angle of 60° on both axes. Combined with 100kHz analog modulation, the system is capable of producing atmospheric beam effects as well as detailed abstracts, text, animations, and graphics for indoor professional laser displays.
The projector is designed for demanding entertainment environments with integrated scanning-system overload protection and extensive laser safety hardware. A keyed interlock, emission delay, magnetic interlock, scan-fail protection, adjustable aperture masking plate, fast electromechanical shutter, and keyed emergency stop system help support professional operation. Its compact 339 x 168 x 270 mm enclosure weighs 8.8 kg and accepts universal 100-240V AC power.
| App Control | Not specified |
| Control Interfaces | Ethernet, ArtNet, DMX, ILDA, PC, lighting console, autoplay |
| Onboard DSP | Integrated FB4-SK control system |
| Remote Control | E-STOP remote included |
| Wireless Capabilities | Not specified |
| Beam Angle | 0.5 mrad average full-angle beam divergence mrad |
| Frequency Response | 100kHz analog modulation Hz |
| LED Type | Full-color RGB semiconductor laser modules (637nm red, 525nm green, 445nm blue) |
| Power Consumption | 340VA VA |
| Power Rating | 3W full-color RGB output W |
| Voltage Range | 100-240V AC, 50-60Hz V AC |
| Wattage | 3W total (0.7W red, 1.25W green, 1.5W blue) W |
| Brand | Pangolin |
| Name | Pangolin Clubmax 3000 FB4 |
| Dimensions | 339 x 168 x 270 mm (13.35" W x 6.61" H x 10.63" D) mm |
| Included Accessories | Heavy-duty flight case, 1.5 m AC power cable, 10 m Ethernet RJ45 cable, E-STOP remote with 10 m 3-pin XLR cable, set of 4 safety keys, interlock bypass dongle (USA units), USB memory stick with user manual, QC certificate |
| Mounting Options | Not explicitly specified |
| Weight | 8.8 kg (19.4 lb) kg |
| Warranty Length | Not specified years |
