Pangolin Clubmax 6500 FB4 | 6.5W RGB - 0.6mrad Bea...
$8,938.00
The Pangolin Clubmax 6500 FB4 is a professional 6.5W full-color RGB laser projector designed for indoor atmospheric effects, abstracts, text, and animation displays. Integrated FB4-SK control, low-divergence optics, fast ScannerMAX scanning, and comprehensive safety systems make it well suited for clubs, touring productions, rental companies, and permanent entertainment installations.
The Pangolin Clubmax 6500 FB4 combines 6.5W of guaranteed optical output with integrated FB4-SK control for flexible programming and playback. It supports Ethernet, ArtNet, DMX, ILDA, computer-based operation, compatible lighting consoles, and autoplay, allowing the projector to fit into a wide range of professional show-control environments.
The RGB optical system uses 637nm red, 520nm green, and 445nm blue laser modules with installed ratings of 1.36W, 2.5W, and 3W respectively. Its 4.5 x 4.5 mm beam and 0.6 mrad average full-angle divergence help produce clean atmospheric effects and detailed projections across indoor venues.

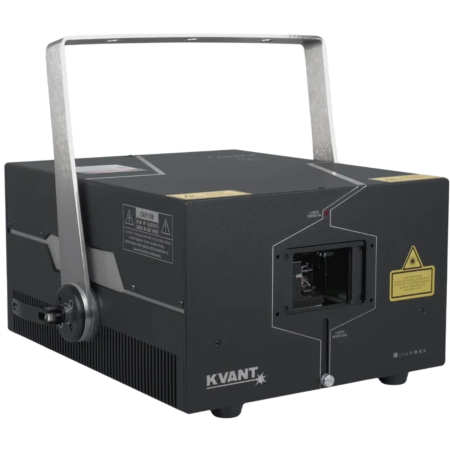

ScannerMAX 506 Compact scanners deliver 40 kpps performance at an 8° scan angle and support a maximum scanning angle of 60° on both axes. Combined with 100kHz analog modulation, the system is capable of handling beams, abstracts, text, animations, and other professional laser content with smooth movement and color control.
The Clubmax 6500 FB4 is built for regular professional use with an integrated scanning-system overload protection circuit and multiple laser safety systems. A keyed interlock, magnetic interlock, emission delay, scan-fail protection, adjustable aperture masking plate, fast electromechanical shutter, and emergency stop system help support safe operation in demanding production environments.
| Beam Angle | 0.6 mrad full angle mrad |
| Connectivity Protocols | Ethernet, ArtNet, DMX, ILDA |
| LED Type | Full-color RGB semiconductor laser projector |
| Power Consumption | 340VA VA |
| Power Rating | 6.5W guaranteed optical output W |
| Voltage Range | 100-240V AC, 50-60Hz volts |
| Wattage | 6.5W W |
| Brand | Pangolin |
| Name | Pangolin Clubmax 6500 FB4 |
| Dimensions | 13.35" W x 6.61" H x 13.90" D (339 x 168 x 353 mm) mm |
| Weight | 25.6 lb (11.6 kg) kg |
| Warranty Length | Not specified years |
