Pangolin FB4 External System | Laser Network Inter...
$1,256.00

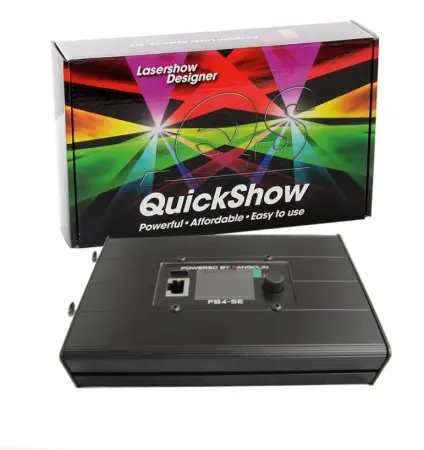

The Pangolin FB4 External System is a professional laser show control solution combining FB4 DMX hardware, a dedicated external housing, and Pangolin QuickShow software. Designed for compatible ILDA laser projectors, it allows operators to control laser shows through Ethernet, DMX, Art-Net, or automatic standalone playback. With onboard microSD memory, an OLED display, and advanced projector adjustment capabilities, the system provides flexible laser control for concerts, nightclubs, theatrical productions, mobile entertainment, and permanent installations.
The Pangolin FB4 External System brings advanced network-based laser show control to existing ILDA-compatible projectors without requiring installation of a controller inside the laser itself. It combines Pangolin's FB4 DMX hardware with a purpose-built external enclosure, allowing operators to connect their laser projector through ILDA while managing show control over Ethernet, DMX, or Art-Net. This makes it a practical solution for production companies, lighting designers, entertainment venues, and laser show professionals who want flexible control options for existing laser systems.
For computer-based operation, FB4 communicates with Pangolin QuickShow or compatible BEYOND software through a standard Ethernet network. The included QuickShow software features more than 2,000 ready-to-use laser cues, including graphics, animations, abstracts, and aerial beam effects. Users can also create customized laser text, logos, and programmed performances. Ethernet connectivity allows the control computer to be positioned separately from the projector, providing flexibility when designing network-based laser installations and touring systems.
Lighting console integration is another major advantage of the FB4 External System. Its DMX functionality allows stored laser content to be triggered and modified directly from a compatible DMX lighting controller, while Art-Net enables network-based control from supported lighting consoles and control systems. Operators can select laser cues and adjust effect parameters such as position, size, rotation, and color. This allows laser effects to become part of a coordinated lighting production alongside moving heads, washes, strobes, and other stage lighting fixtures.
The integrated microSD memory supports standalone laser show playback without requiring a computer during operation. Operators can store laser content and configure the FB4 to automatically play individual cues or playlists. Compatible timecode and master/slave synchronization modes provide additional options for scheduled performances and coordinated multi-controller setups. The onboard OLED display and control knob allow direct configuration of operating modes, color settings, geometric correction, and other projector parameters.
Designed for professional laser applications, the external housing provides a convenient way to add FB4 functionality to compatible ILDA laser projectors. Whether used for live concerts, nightclub installations, theatrical productions, corporate events, or mobile laser shows, the system offers several approaches to programming and playback. Its combination of QuickShow software, network connectivity, lighting console integration, and standalone operation gives operators the flexibility to use the same hardware across different production environments. A compatible laser projector is required and sold separately. All laser systems must be configured and operated in accordance with applicable laser safety regulations.
| App Control | Pangolin QuickShow and Compatible BEYOND Software |
| Control Interfaces | OLED Display, Rotary Control Knob, Ethernet Network, DMX-512, Art-Net |
| Firmware Updates | Supported |
| Onboard DSP | Yes |
| Preset Storage | Onboard microSD memory |
| Brand | Pangolin |
| Name | Pangolin FB4 External System |
| Primary Category | Laser Show Controller |
| Connectivity Protocols | Ethernet, DMX-512, Art-Net, ILDA, microSD |
| Included Accessories | Pangolin FB4 DMX Laser Control Hardware, FB4 External DMX Housing, Pangolin QuickShow Laser Control Software Access |
| Warranty Length | Not specified years |
