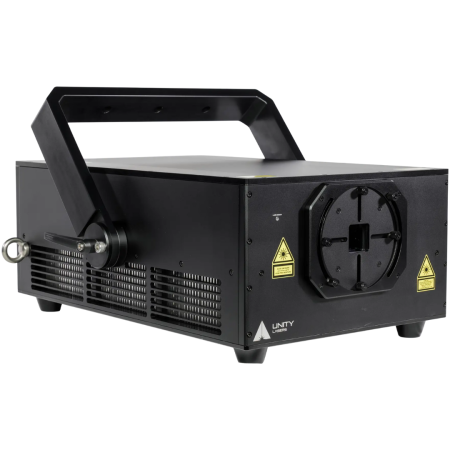

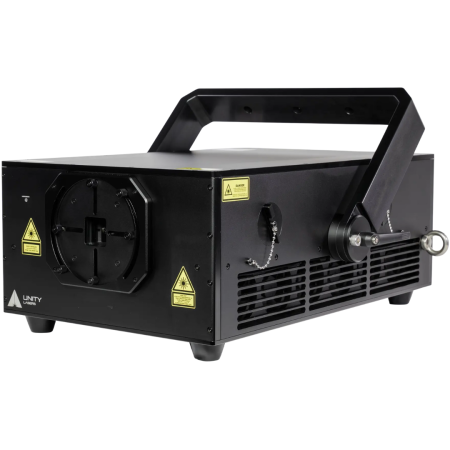

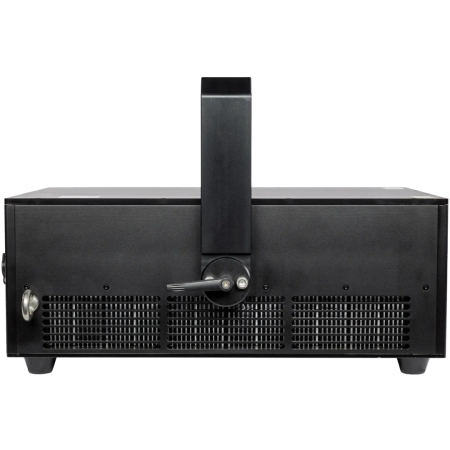

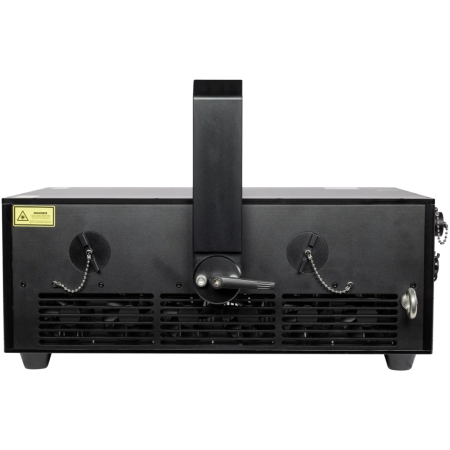

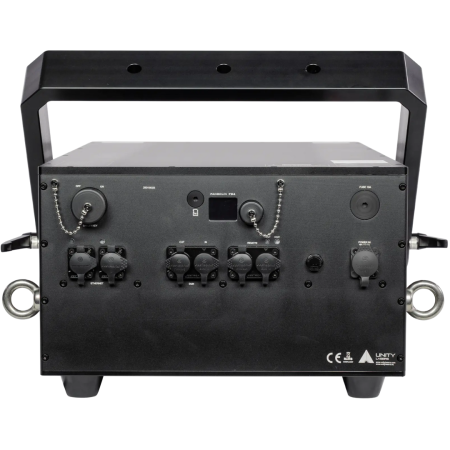

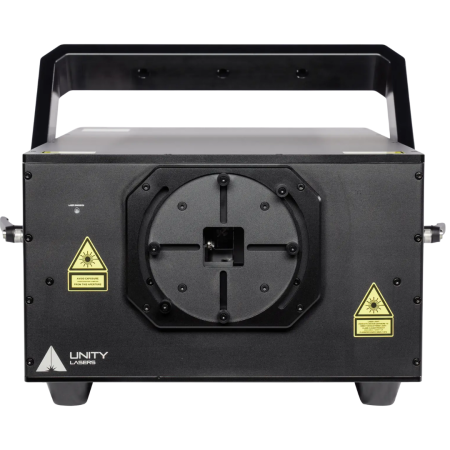

High-Powered Outdoor RGB Laser Projector
Pangolin Unity ELITE 120 PRO FB4 (IP65) is a powerhouse laser projector engineered for the most demanding lighting environments. With an astounding 120W guaranteed output and IP65-rated housing, it delivers jaw-dropping visual impact for stadiums, festivals, and city-spanning displays.
Pangolin Unity ELITE 120 PRO FB4 (IP65) Competitive Differences
- Over 120W Full-Color RGB Laser Output
- Advanced Optical System with Tight Beam Over Long Distances
Pangolin Unity ELITE 120 PRO FB4 (IP65) Description
The
Unity ELITE 120 PRO FB4 (IP65) is built to dominate large-scale outdoor venues, providing unmatched brightness, visibility, and control flexibility. It’s equipped with a cutting-edge analog RGB diode system and high-precision scanning capable of producing intense atmospheric effects visible across kilometers.
This unit is designed for lighting professionals handling major stadium shows, landmark installations, or city skyline effects. The FB4 media server comes pre-installed, offering multi-protocol support via ArtNet, DMX, sACN, and Ethernet. It’s also compatible with Pangolin’s QuickShow software and mobile app control, giving you versatile programming and playback options, whether from a console, PC, or stand-alone mode.
The optical design features larger aperture mirrors and precision-tuned scanning hardware, maintaining tight beam profiles across long throws. Safety and performance are handled via integrated digital management inside the FB4 interface, with multiple redundancies to ensure secure operation.
Rain, dust, or extreme conditions are no match for the rugged IP65-rated enclosure, and its premium touring kit includes all essentials for immediate deployment. Whether for permanent installations or touring rigs, the
ELITE 120 PRO FB4 sets a new standard for high-output laser performance.
Model Features
- Ultra-bright 120W analog RGB diode system
- IP65 waterproof housing for demanding outdoor use
- Integrated Pangolin FB4 for control via DMX, ArtNet, sACN, or standalone
- Larger aperture optics for long-distance beam integrity
- Includes QuickShow software and MoboLaser app
- Supports text, graphics, logos, and basic mapping
Model Specifications
- Max Output Power: >120W RGB
- Red: 30,000mW | Green: 40,000mW | Blue: 50,000mW
- Beam Size: 7.5 x 7.5 mm
- Beam Divergence: <1.2mrad (full angle)
- Scan Speed: 25,000pps @ 8°
- Scan Angle: 40°
- Control: FB4 (Ethernet, ArtNet, DMX, sACN, Auto, Mobile App)
- Ingress Protection: IP65
- Power Consumption: Max 1600W
- Power Input: 100–240V, 50Hz
- Operating Temperature: -10°C to 45°C
- Dimensions: 705 x 576 x 273 mm
- Weight: 58 kg
What's In The Box
- Unity ELITE 120 PRO FB4 Laser Projector (IP65)
- Protective Touring Case
- FB4 DMX Media Server (Pre-installed)
- Estop Box & 10M (30ft) Cable
- Ethernet Cable (10M / 30ft)
- Power Cable (1.5M / 4.5ft)
- Keys & Interlock Components
- Outdoor RJ45 Connectors
- Quick Start Guide & Manual
- Variance Card
