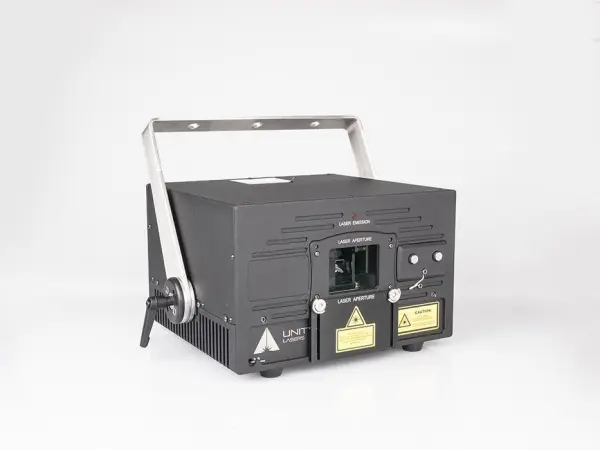

The ELITE 5 PRO FB4 is a full color RGB, diode-based laser system, with integrated Pangolin FB4 media server and robust IP54 housing… Making it perfect for lighting designers as well as special FX companies, who want to integrate lasers, into any multimedia setup.
Applications

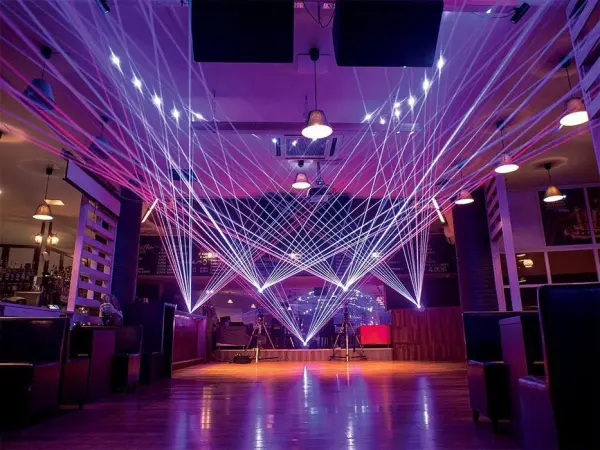

The ELITE 5 PRO FB4 is perfect for small, medium and large indoor venues, as well as for use at small to medium size outdoor shows and festivals. (up to around 5,000 people in capacity). The fixture can also be used both indoors and outdoors, for the projection of laser graphics, logos, text and laser billboard advertisements.
Control
Our ELITE PRO FB4 series cater to the workflow of lighting designers.
Offering easy control in three different ways:
Console Mode - Over DMX or ArtNET, directly from a console. And we include over 1,500 FREE laser gobos for you to control, directly on the laser.
Streaming Mode – Allowing for direct control from a PC using Pangolin’s QuickShow or Beyond Software (over Ethernet).
Auto Mode - Finally, we also offer auto-mode operation, where you can upload your desired laser content to the projector (this can be fully programmed shows, as well as single cues) and set the day, date and time for the projection, and it will be done automatically for you. No trigger, PC or control setup required. A truly auto-play setup, ideal for permanent installations.
In addition, ELITE PRO FB4 series laser projectors include Pangolin’s QuickShow software completely FREE.
QuickShow laser show design software gives you the ability to design and create any sort of laser show effects you can imagine (from aerial beam effects, to text, graphics, and logos, and even fully programmed timeline shows), and you can then control those elements from any setup you desire – be it a lighting console, PC, or auto-mode.
The ELITE 5 PRO FB4 package includes all of your main accessories, FREE.
Elite 5 Pro FB4 Laser Projector
Protective travel case
FB4 Media Server
QuickShow Laser Show Control Software
Ethernet / ArtNET control cable
E-stop safety system and E-stop cables
Safety Interlocks
Safety Keys
Specifications:
Product Name: Unity ELITE 5 PRO
Type Of Laser: Full-colour, Semiconductor diode laser system
Guaranteed Optical Output: >5,500mW
Suitable For: Medium-sized venues and indoor events; laser shows and laser graphic displays
System Control:
Pangolin FB4 [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console, Auto Mode]
Scanning System: 35,000 Points per second @ 8°
Scan Angle: 50°
Safety: Fully complies with the latest EN 60825-1 and FDA regulations
Weight: 9.2kg
Package Includes: Power cord, 10M CAT5 cable, E-STOP box with 10M cable, Set of 4 safety keys, 3-pin interlock bypass plug, User guide.
R | G | B [mW]: 1230 | 1800 | 2500
Beam Size [mm]: 6 x 5
Beam Divergence: <1.5mrad [Full Angle]
Modulation: Analog 100kHz
Power Requirements: 100-230V/50Hz
Consumption: Max. 190W
Operation Temperature: 10-40 °C
Ingress Rating: IP 20
System Features: All the adjustments, such as power output of each colour, X & Y axes invert, X & Y size and position, etc., are managed digitally by the FB4 control system.
Scanning system protection.
Daisy chain of emergency STOP signal for multiple system "one-hit" operation.
Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
Notice: *Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
Dimensions [mm]: Length: 235
Width: 255
Height: 168
