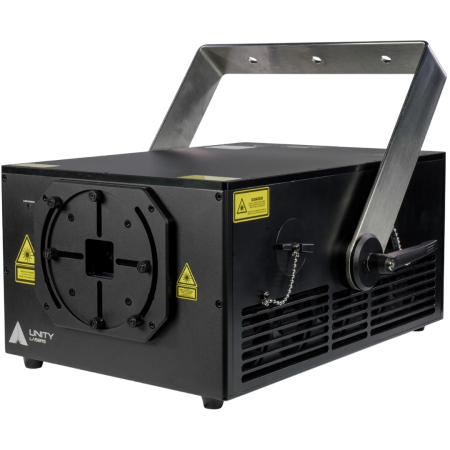

Outdoor RGB Laser Projector
Pangolin Unity ELITE 60 PRO FB4 (IP65) is a high-powered, full-color laser projector designed for professional lighting designers, SFX teams, and large-scale event production. With a guaranteed output of over 59.5 watts and IP65-rated waterproof housing, this system excels in stadiums, arenas, and massive outdoor installations.
Pangolin Unity ELITE 60 PRO FB4 (IP65) Competitive Differences
- Over 59.5W Full-Color RGB Laser Output
- IP65-Rated Housing for Outdoor & Touring Use
Pangolin Unity ELITE 60 PRO FB4 (IP65) Description
The
Unity ELITE 60 PRO FB4 (IP65) is a top-tier laser system featuring analog-modulated RGB laser diodes with a sharp <1.2mrad beam divergence and high scan accuracy. Built for professionals, it integrates the powerful Pangolin FB4 control interface, supporting Ethernet, ArtNet, sACN, DMX, auto-play, and mobile app control.
Designed with precision and durability in mind, the IP65-rated aluminum enclosure ensures performance in challenging outdoor environments. This makes it ideal for festivals, stadiums, and high-impact installations where reliability is non-negotiable.
Its robust system includes onboard configuration options for color balancing, positioning, safety, and system diagnostics, all managed via the FB4 interface. The package also includes a complete professional touring kit with rugged accessories, interlocks, and cables.
From advanced mapping and graphic work to full-beam effects in massive venues, the
Unity ELITE 60 PRO FB4 delivers powerful results with maximum flexibility.
Model Features
- Analog RGB diode laser system
- FB4 media server for multi-protocol control (DMX, ArtNet, sACN, Auto Mode)
- Waterproof IP65-rated housing for outdoor use
- Full digital control of all system parameters via FB4
- Beam size: 7 x 7 mm with <1.2 mrad divergence
- Integrated safety systems including keyed interlock, shutter, and scan-fail protection
Model Specifications
- Max Output Power: >59.5W RGB
- Red: 19,500mW | Green: 20,000mW | Blue: 20,000mW
- Beam Divergence: <1.2mrad (full angle)
- Scan Speed: 30,000pps @ 8°
- Scan Angle: 45°
- Control: FB4 (Ethernet, ArtNet, DMX, sACN, Auto, Mobile App)
- Ingress Protection: IP65
- Power Consumption: Max 1200W
- Power Input: 100–240V, 50Hz
- Operating Temperature: -10°C to 45°C
- Dimensions: 509 x 455 x 226 mm
- Weight: 32 kg
What's In The Box
- Unity ELITE 60 PRO FB4 Laser Projector (IP65)
- Protective Touring Case
- FB4 DMX Media Server (Pre-installed)
- Estop Box & 10M (30ft) Cable
- Ethernet Cable (10M / 30ft)
- Power Cable (1.5M / 4.5ft)
- Keys & Interlock Components
- Outdoor RJ45 Connectors
- Quick Start Guide & Manual
- Variance Card
PANGOLIN Elite 60 Pro FB4 IP65
(Pangolin Elite 60 Pro FB4 (IP65))
