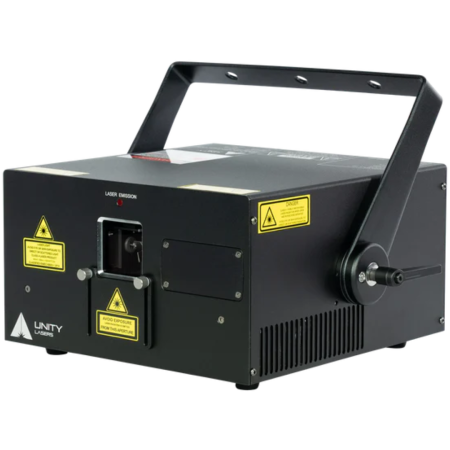

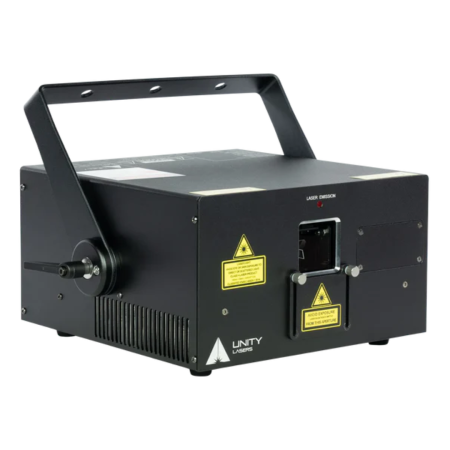

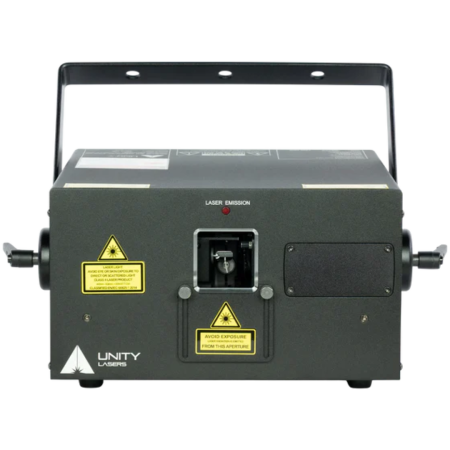

Full-Color Laser Projector
Pangolin Unity RAW 5 FB4 is a powerful and affordable full-color laser system designed for lighting designers and venues seeking professional results without premium pricing. With 5W of guaranteed optical output and built-in FB4 hardware, it delivers stunning beam effects, graphics, and text projection — all easily controlled from lighting consoles, PCs, or mobile devices.
Pangolin Unity RAW 5 FB4 Competitive Differences
- Integrated FB4 DMX with ArtNET, sACN, ILDA, and Ethernet control
- Includes Pangolin QuickShow software at no extra cost
Pangolin Unity RAW 5 FB4 Description
Built with performance and flexibility in mind, the
Unity RAW 5 FB4 offers a full-color, semiconductor diode laser engine capable of over 5 watts of optical output. It's engineered to meet the needs of DJs, clubs, and medium-size venues with capacity up to 5,000 people.

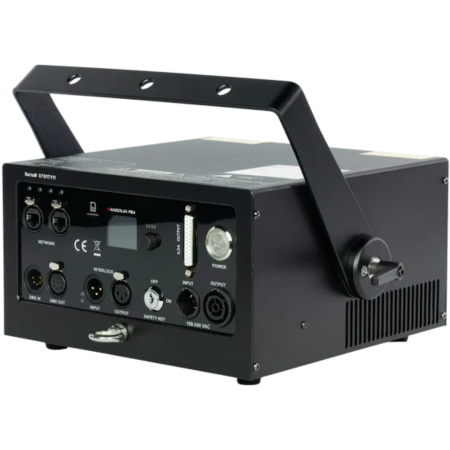

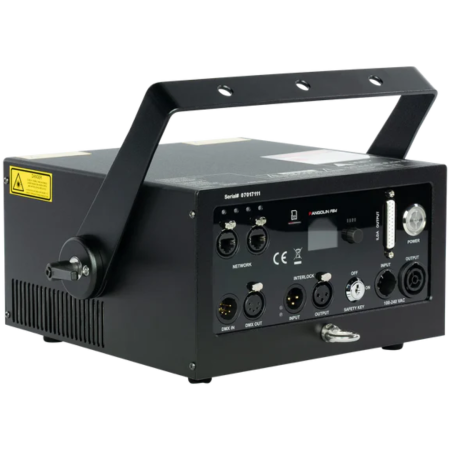

The built-in FB4 control hardware unlocks a wide range of professional features — including compatibility with ArtNET, DMX, sACN, and ILDA protocols. You can run it from a PC using QuickShow, connect it to a console, or operate it in standalone or auto mode for maximum versatility.
Its precision scanning system runs at 30,000 points per second at 8°, with a wide 50° scan angle, making it ideal for beam shows, text projection, and graphics mapping. The digitally managed system settings let you fine-tune color power, axis inversion, positioning, and more directly from the FB4 interface.
Safety is a top priority, with features like keyed interlock, emission delay, magnetic interlock, scan-fail detection, and a mechanical shutter. This unit also includes a rugged flight case and all necessary cables for easy deployment.
Model Features
- Full-color 5W laser system with diode sources
- Integrated FB4 DMX control with Ethernet, ArtNET, ILDA, sACN
- Supports QuickShow software (included)
- 30kpps scanning at 8°, 50° max scan angle
- Precision analog modulation up to 50kHz
Model Specifications
- Max Optical Output: >5W
- Beam Size: 5 x 3 mm
- Beam Divergence: <1.1 mrad (full angle)
- Scanning: 30,000pps @ 8°
- Scan Angle: 50° max
- Red / Green / Blue Output: 1200mW / 1000mW / 2800mW
- Wavelengths: 638nm / 525nm / 455nm
- Modulation: Analog, 50kHz
- Ingress Rating: IP4X
- Power Requirements: 100–230V, 50Hz
- Power Consumption: Max 150W
- Operating Temperature: 10–40 °C
- Dimensions: 252 x 247 x 148 mm
- Weight: 8 kg
What's In The Box
- Laser projector with FB4 DMX
- Protective flight case
- Estop box with 10M (30ft) cable
- Ethernet cable (10M / 30ft)
- Power cable (1.5M / 4.5ft)
- Interlock and keys
- User manual and quickstart guide
- Variance card
Pangolin Raw 5 FB4
(Pangolin Raw-5-FB4)
