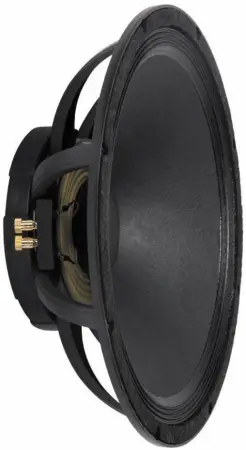

Peavey 1808-8 SPS BWX

High-Power 18-Inch Woofer for Subwoofer and Bass Cabinet Applications

The Peavey 1808-8 SPS BWX is a premium 18" loudspeaker driver designed for use in subwoofers and low-frequency enclosures. Built with high-end materials like a Kevlar®-impregnated cellulose cone and aluminum ribbon voice coil, it delivers extended low-frequency performance with a program power rating of 1000W and peak capacity up to 2000W. Ideal for professional audio systems, this woofer provides tight, deep bass response with outstanding durability and thermal handling.

Peavey 1808-8 SPS BWX Competitive Differences

• Kevlar®-reinforced cellulose cone for enhanced durability and rigidity
• 4-inch aluminum ribbon voice coil for high thermal capacity
• Program power handling of 1000W and peak rating of 2000W
• Exceptional low-frequency extension down to 35Hz
• Nominal sensitivity of 97.5 dB for efficient output

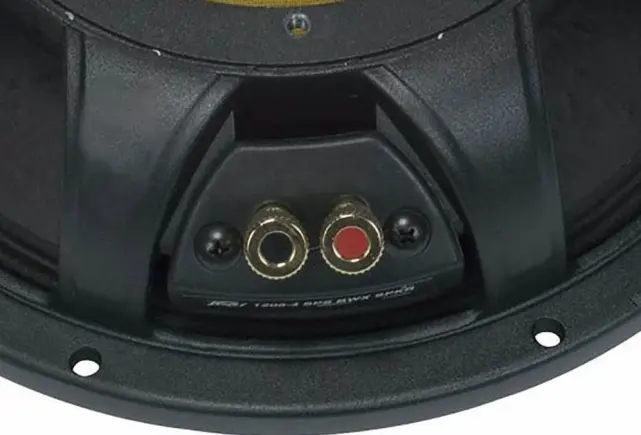

• Solderless diffusion-welded OFHC copper leads for reliable performance

Peavey 1808-8 SPS BWX Description

The Peavey 1808-8 SPS BWX is engineered for high-demand low-end reproduction, making it a top choice for replacement or custom-built subwoofer and bass cabinet designs. The Kevlar®-impregnated cone delivers increased stiffness and resistance to deformation under heavy loads, while the 4-inch voice coil on a polyimide-impregnated fiberglass former allows for sustained high power operation.

This model is optimized for use within the frequency range of 35 Hz to 1 kHz, making it highly suitable for sub-bass and kick drum reinforcement. Its efficiency is further enhanced by a strong BL factor of 16.26 T/M and a moving mass of 106.7 grams, delivering both punch and precision. Whether in live PA systems or permanent installs, the 1808-8 SPS BWX delivers robust and clear low-frequency performance with reliable thermal and mechanical handling.

1808-8 SPS BWX Features

• 18" low-frequency loudspeaker
• Keflar®-impregnated cellulose cone
• Aluminum ribbon wire voice coil
• Nomex® stiffener and solderless diffusion welded leads
• Polyimide-impregnated fiberglass voice coil former
• Usable frequency range: 35 Hz – 1 kHz
• Peak power handling: 2000W
• Program power handling: 1000W
• Continuous power handling: 500W
• Sensitivity: 97.5 dB (1W/1m)

1808-8 SPS BWX Specifications

• Nominal Impedance: 8 Ohms
• DC Resistance (Revc): 6.71 Ohms
• Effective Piston Area (Sd): 0.124 m²
• BL Product: 16.26 T/M
• Free-Air Resonance (Fo): 37.4 Hz
• Equivalent Compliance (Vas): 368.0 L
• Compliance (Cms): 169.4 µM/N
• Moving Mass (Mms): 106.7 g
• Qms: 7.55
• Qes: 0.637
• Qts: 0.587
• Xmax: 4.6 mm
• Le: 0.38 mH
• SPL (1W/1m): 96.7 dB
• Efficiency (No): 2.94%
• Displacement Volume (Vd): 69.4 cu in. (1138 ml)
• Displacement (Disp): 228 cu in. (3737 ml)
• Diameter: 18"
• Net Weight: 18 lbs. (8.2 kg)
• Shipping Weight: 24.14 lbs. (10.95 kg)
• Shipping Dimensions: 20.87" x 20.08" x 8.27" (53 x 51 x 21 cm)
