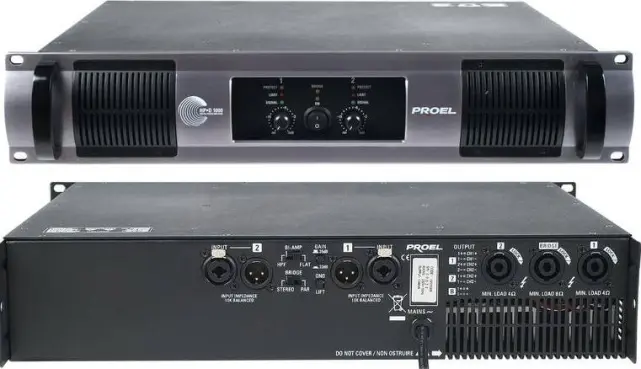

Proel HPD1000

Proel HPD1000

RMS Power: 2 x 260 Watts @ 8 ohms, 2 x 500 Watts @ 4 ohms, 1,000 W @ 8 ohms

The new HP Series of amplifiers is divided into two functional typologies. HPA models are traditional amplifiers without compromises while the HP-D models employ digital amplification modules based on an improved version of Pulse Width Modulation technology. 2 and 4 channel versions of the HP-D models are available, with 500 W or 750 W power per channel, and the largest model reaches an impressive 3000 W overall power. The protection system includes thermal protection, short circuit protection, high frequency protection and a CLIP LIMITER circuit. Several user configurations can be selected in the input section (STEREO/BRIDGE/PARALLEL) as well as several filtering options (FLAT/BI-AMP/HPF).

Power Supply : 230VAC 50Hz or 117VAC 60Hz
Maximum Power Consumption : 1340 VA
Input Connectors : 2 x NEUTRIK Combo + 2 x NEUTRIK XLR-M
Output Connectors : 2 x NEUTRIK Speakon + 1 x NEUTRIK Speakon Bridge
Dimensions (W x H x D) : 483 x 89 x 383 mm
Damping Factor : >500 @ 8 O
Gain : Selectable 35 dB / 32 dB
Input Impedance : 10 kO unbalanced
20 kO balanced
Input Sensitivity : 0 dB / 40 x
Indicators (LED) : Protect, Signal, Bridge, Limit
Notes : Selectable filtering options: FLAT, 100 Hz selectable HPF, 100 Hz 24 dB/Oct BI-AMP crossover
GND lift switch
Weight : 9.5 kg(20.948lb )
Power consumption : Rated 1/8 power output 370 VA
Output Power (THD<1% 1kHz) Bridge Mono 8ohm : 1000 W
Output Power (THD<1% 1kHz) Stereo 4+4ohm : 2 x 500 W
Output Power (THD<1% 1kHz) Stereo 8+8ohm : 2 x 260 W
Protections : DC, thermal, soft start, short circuit
Cooling : Front-to-rear air flow, variable speed DC fans, removable dust filters
S/N Ratio : >105 dB
Frequency response : 20Hz - 20kHz (-0.5dB, +0.5dB)
System type : 2-channel Power Amplifier
Rack Units : 2 U
