Proel M1500 USB
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

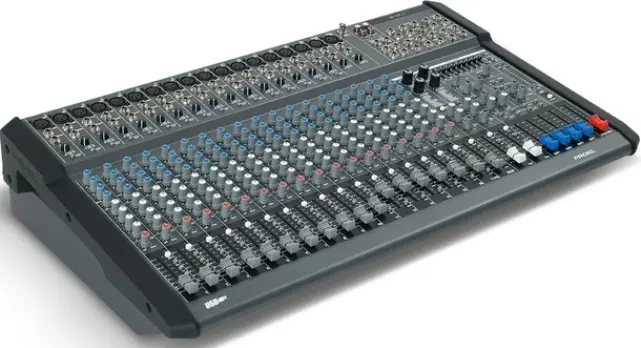

Proel M1500USB (Proel M-1500 USB)
Thanks to its 750 W per-channel digital amplifier module, the M1500USB is the most powerful amplified mixer available on the market and it undoubtedly is a professional tool with great potentials. M1500USB will allow you to pilot with maximum effi ciency even loudspeaker systems requiring very high power and to control the sound of large venues without any problem, and all that in a housing which dimensions and weight are surprisingly contained if compared to the power supplied and to the amount of functions it can provide. M1500USB is the ideal for bands, theatre or music groups, and, in general, for all amplifi cation systems requiring a powerful, reliable, complete and easy-to-carry amplified mixer.
| System type | 20 inputs mixer with double digital effects & USB |
| Power Supply | 230VAC 50/60Hz or 117VAC 50/60Hz |
| Phantom power | + 48 V all mono input |
| Output Power (THD<1% 1kHz) Stereo 4+4ohm | 750 W + 750 W RMS |
| Input Connectors | Mic Input Balanced XLR-F - Combo Line Input Balanced TRS Jack USB |
| Inputs | 18 MIC - 16 Line - 2 stereo line - USB |
| Input Sensitivity | Mic Input from 0 to -60 dB Line Input from +20 to -40 dB |
| Input Impedance | Mic Input 2 Kohm Line Input 10 Kohm |
| Output Connectors | Balanced TRS Jack and / or XLR-M - USB |
| Outputs | C\ROOM - MAIN MIX - MONO OUT - GROUP 1-4 - AUX 1-4 - PHONES - USB |
| Amplifier Output | 2 x SPEAKON |
| Output Levels | MAIN MIX nom. out level +4 dBu - all other outputs 0 dBu - Maximum level all outputs +22 dBu |
| Headphones output impedance | min. impedance 32 ohm - max. out level (2x) 193 mW |
| Distortion (THD+N) | at +4dB, 1kHz < 0,008 % |
| Mono Input channel equalization | Lo Cut 75 Hz, 18 dB/oct. HIGH (shelving) ±15 dB @ 12KHz MID (peaking) ±15 dB from 100 Hz to 8 kHz LOW (shelving) ±15 dB @ 80Hz |
| Stereo Input Channel Equalization | HIGH (shelving) ±15 dB @ 12KHz HI-MID (peaking) ±15 dB @ 3 KHz LO-MID (peaking) ±15 dB @ 500 Hz LOW (shelving) ±15 dB @ 80Hz |
| Incorporated effects | Double effects unit with: HALL, ROOM, VOCAL and PLATE reverbs, MONO, STEREO and TAP DELAY, CHORUS and FLANGER, REV + DELAY, REV + CHORUS and REV + FLANGER 16 step PRESET selector 16 step VARIATION selector PEAK LED MUTE and TAP DELAY switch with LED indicator and footswitch |
| Damping Factor | >500 @ 4 ohm |
| Maximum Power Consumption | 1600 VA |
| Frequency response | 20 Hz to 30 kHz: +0 dB/-1 dB |
| Noise | unweighted < -93 dBu |
| Protections | DC voltage, short circuit, thermal, soft start |
| Cooling | variabile speed DC fan |
| Weight | 12.1 kg (12.1 kg) |
| Dimensions (W x H x D) | 71 x 9 x 43.5 cm |
| Notes | Reinforced carrying bag included 9-band stereo assignable graphic equalizer |
