Proel M20 USB
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

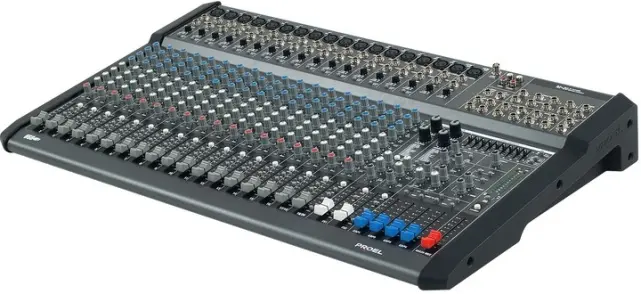

Proel M20USB (Proel M-20 USB)
With our M20USB you can always create a perfect mix without ever running short of input channels for the unexpected guest performer. With 20 inputs total (16 microphone inputs, 4 AUX sends, 4 sub-groups and the convenient STANDBY function for the immediate muting of all channels) the M20USB is a mixer that will fit the most demanding applications, from bands with a wide range of instruments to theatre groups, from complex multimedia applications to installations in large venues. Besides a 9-band stereo graphic equalizer, the M20USB includes two PROFEX boards which can individualize the effects for different groups of instruments (e.g. one kind of reverb for drum set and percussion and a different one for voice, woodwinds and brass). In addition to the USB interface, the M20USB comes with a rugged transportation bag and offers a BNC connector for a 12V lamp.
| System type | 20 inputs mixer with double digital effects & USB |
| Power Supply | 100V - 240V AC, 50 - 60 Hz |
| Phantom power | + 48 V all mono input |
| Input Connectors | Mic Input Balanced XLR-F - Combo Line Input Balanced TRS Jack USB |
| Inputs | 18 MIC - 16 Line - 2 stereo line - USB |
| Input Sensitivity | Mic Input from 0 to -60 dB Line Input from +20 to -40 dB |
| Input Impedance | Mic Input 2 Kohm Line Input 10 Kohm |
| Output Connectors | Balanced TRS Jack and / or XLR-M - USB |
| Outputs | C\ROOM - MAIN MIX - MONO OUT - GROUP 1-4 - AUX 1-4 - PHONES - USB |
| Output Levels | MAIN MIX nom. out level +4 dBu - all other outputs 0 dBu - Maximum level all outputs +22 dBu |
| Headphones output impedance | min. impedance 32 ohm - max. out level (2x) 193 mW |
| Distortion (THD+N) | at +4dB, 1kHz < 0,008 % |
| Mono Input channel equalization | Lo Cut 75 Hz, 18 dB/oct. HIGH (shelving) ±15 dB @ 12KHz MID (peaking) ±15 dB from 100 Hz to 8 kHz LOW (shelving) ±15 dB @ 80Hz |
| Stereo Input Channel Equalization | HIGH (shelving) ±15 dB @ 12KHz HI-MID (peaking) ±15 dB @ 3 KHz LO-MID (peaking) ±15 dB @ 500 Hz LOW (shelving) ±15 dB @ 80Hz |
| Incorporated effects | Double effects unit with: HALL, ROOM, VOCAL and PLATE reverbs, MONO, STEREO and TAP DELAY, CHORUS and FLANGER, REV + DELAY, REV + CHORUS and REV + FLANGER 16 step PRESET selector 16 step VARIATION selector PEAK LED MUTE and TAP DELAY switch with LED indicator and footswitch |
| Frequency response | 20 Hz to 60 kHz: +0 dB/-1 dB |
| Noise | unweighted < -93 dBu |
| Weight | 9.2 kg (9.2 kg) |
| Dimensions (W x H x D) | 71 x 9 x 43.5 cm |
| Notes | Reinforced carrying bag included 9-band stereo assignable graphic equalizer |
